Medium Duty Static Display Racking

Export Markets:	Global
Material:	Steel
Structure:	Rack
Mobility:	Combined
Height:	0-5m
Weight:	150-500kg
Closed:	Semi-closed
Development:	Conventional
Serviceability:	Common Use

Product Description

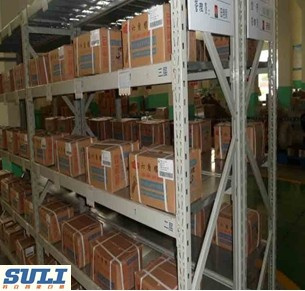

Medium Duty Static Display Racking/Display Shelf/Steel Shelf/Storage Shelf is a strong and durable shelving system that is smart and clean in appearance, making it ideal for a wide variety of applications high density storage of small parts, heavy items, large and bulky items, and odd shaped or awkward items. It is widely used in museum, hosipal and libiary. It has special design, proper structure, and is easy for installing and dismantling without any screw thread connector for 100-300kg per layer. It is widely used in supermarket, store, and other enterprises. This product is in the level of international standard, the height could be adjusted easily by 50mm distance.

Specifications:
1), Usually bearing loads between 100-300 kg/layer;
2), The height of each layer can be adjusted by pitch 50mm freely;
3), Consist of column, beam, horizontal brace, diagonal brace and shelving and other accessory;
4), Adopt the structure that the beam hitching on the frame;
5), Steel shelving, wire decks or wooden panel are all available;
6), Easy to install and disassemble;
7), Surface treatment: Powder coating;
8), Packing: Neutral paper box or in bulk or upon clients requirements;
9), Different sizes are available;
10), Container load: 17.5 ton per 1x20 container, 22 ton per 1x40 container
11), Delivery time: 20 days for 1x20 container, 30 days for 1x40 container

Advantages:
1. Height between layers is adjustable according to goods size.
2. Various vertical separating plate and mash can be laid between horizontal beams.
3. It is an ideal for a wide variety of applications high density storage of small parts, heavy items, large and bulky items, and odd shaped or awkward items
4. It has special design, proper structure, and is easy for installing and dismantling without any screw thread connector for 100-300kg per layer

Quotation requirement:

Racking size or pallet size
Height of the rack
Load capacity per layer
How many layers for the rack

Main Parts  Specs:	1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.  2. Boxed beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0,       140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,  3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Material:	High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China.
Finish:	High-quality Powder Coating Finish.
Quick Delivery	10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits.
