Home LED Light Products Q235 Steel Industrial Storage Heavy Duty Metal Pallet Rack
Q235 Steel Industrial Storage Heavy Duty Metal Pallet Rack
| Price: | US $ 1000-1200/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T |
| Export Markets: | Global |
|---|---|
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Height: | 5-15m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 1500-4500kgs/Level |
Product Description

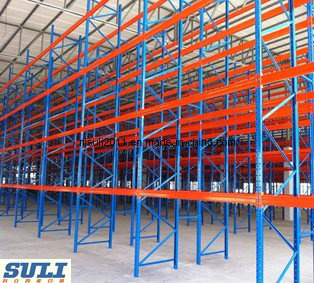

Heavy Duty Steel Rack/Storage Shelf/Pallet Racking/Pallet Rack SystemSelective pallet rack is called "Selective" because of it offers tremendous selectivity. You are able to access every pallet in a selective rack system. Teardrop rack is the most economical and efficient way to store pallets or bulk boxes and maximize valuable storage space in your warehouse. Assemble interlock structure that has heavy duty capacity, the compartment loading capacity up to 4500kgs.
It is a material handling storage aid system designed to store materials on pallets (or "skids"). Although there are many varieties of pallet racking, all types allow for the storage of palletized materials in horizontal rows with multiple levels. All types of pallet racking create some level of increase storage density with the least dense being the least expensive and cost increasing with storage density.
An endless variety of storage configurations and systems are possible, ensuring that the most cost effective solution can be tailor made to suit your specific requirements.
Pallet Racking System is designed and installed to comply with customer needs and requirements from small warehouses to huge distribution centers.
The width of corridor between racks depends on handling equipment used inside of warehouse. There is no limit in height of such racking system.
Advantages:
· Individual access to all pallets to full height of warehouse
· Simple stock rotation achieved
· Easy beam adjustment accommodates variable pallet heights
· Compatible with many handling equipment styles
· Conventional tolerance for floors when used to 10m high
· Accessories available can accommodate every unit load type
· Economical shelving beams can be added for low level picking
High average locations used 95 %, for 100 % accessibility, good stock rotation
There is possibility to store all type of pallets with different sizes and weight;
Direct control of each pallet leads to keep pallets in a good conditions;
It can be combined with longspam beams for manual selection of goods.
Installation of this type of racking system doesn't require specialist, it's enough to install according to installation instruction.
Selective Pallet Racking System is compatible with most types of handling equipments and building structures. Therefore various storage possibilities can be created.
Our Storage Rack Advantages
1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.
Our Advantages
1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc.)
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length*width*height)
C) How many layers you want
D) The loading capacity of each layer
E) The RAL color you want
| Feature of Pallet racking | ||
| Meterial | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China. | |
| Surface treatmet: | Podwer coating; Normal color(Orange or blue) or according to customer' s requirement. | |
| Size | Height | 2-11m (6.56-36.1ft), or according to customer' s requirements. |
| Width | 1.5-3.3m (4.92-10.82ft), or according to customer' s requirements. | |
| Length | 0.8-1.2m (2.63-3.94ft), or according to customer' s requirements. | |
| Thickness | Upright: 1.5-2.5mm; Beam: 1.5-2.0. Refer to below sheet 2 for more details. | |
| Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. | |
| Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. | |
| Loading capibility (per layer) | 700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details. | |
| Layer nos. | 2-7 layers. or customized. | |
| Packing detial: | Experienced export packing (uprights and beams' both end with cardboard, then bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement. | |
| Delivery detial: | 10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits. | |
