Prod Model: |
3W-9805301A-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Small Size: |
355*315*305mm |
Usage: |
SMT Production Line |
Type: |
ESD Shelf |
Material: |
Conductive PP |
Product Description

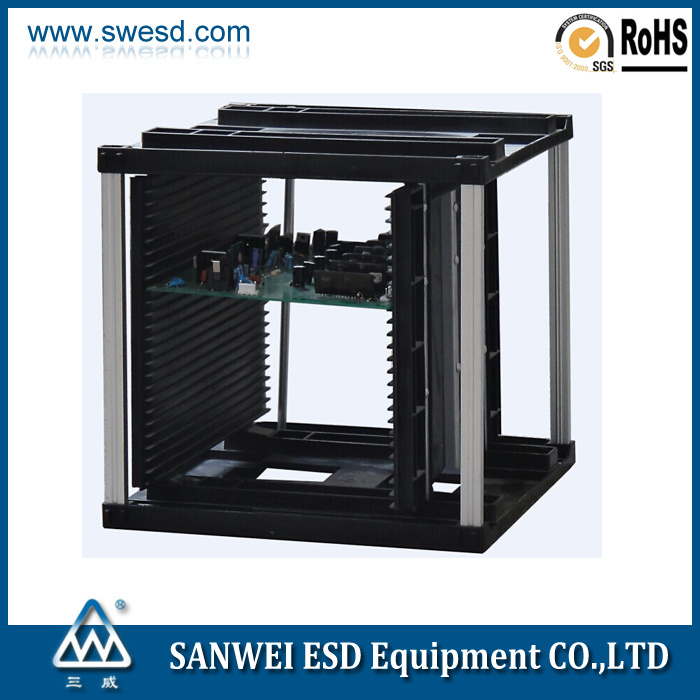

Small size SMT Antistatic ESD PCB Magzine Rack
(3W-9805301A-1)
Description:
Temperature: 80degree.C
50PCS of PCB Plates can be stored
The specification of PCB plates: 330mm× (90-250)mm
Contour Size(L× W× H): 355mm× 315mm× 305mm
Guide slot of side plate: Depth 2.8mm, Width 7mm, Pitch 10mm
Surface Resistance: Below 106Ω
Weight: 3.4kg
Fix method: Screw adjustableADVANTAGES:
1. Have exported for more than 8 years
2. Have professional engineer and efficient management
3. Delivery time is short, normally in stock
4. Small quantity is allowed.
5. The best & professional sale services
6. Our products have been exported to USA, South America, Europe, Southeat Asia, India, Israel, UK, Australia, South Africa, etc.
7.ISO9001:2008, ISO14001:2004

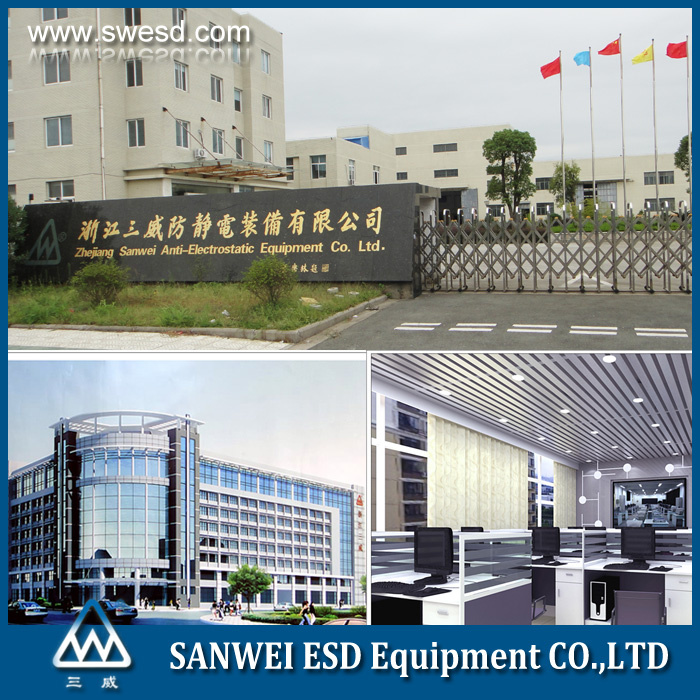

Zhejiang Sanwei Anti-Electrostatic Equipment Co., Ltd., Was established in 1988, it is a "High-tech and New Company in Zhejiang Province", China's anti- static units Association, and "the contract and keeping promises units". We have drafted and formulated the General Specifications for Electrostatic Circulation Containers (SJ/T11277-2002), and we participated in the modification work of Requirements for Electrostatic Discharge Protected Area (GJB3007-1997) and General Specification of Testing Method for Electrostatic Protection in Electronic Production Manufacturing and Using System (SJ/T10694 ). Our company is the important ESD anti-electrostatic equipment and material researching and producing base in China.
3W's development and production of anti-static products have gained dozens of independent intellectual property rights, of which the material which can tolerant 200 deg. C temperature gained State of invention patents, a large number used in SMT rack, etc. It has reached the international lead level. At the same time an international leader in clean white-permanent anti-static materials (tolerant temperature at 160 deg. C) widely used in high-end semiconductors, aviation, aerospace, chemicals, and electronics fields. Which were large-used and confirmed Intel, Motorola, Siemens, IBM, Panasonic, Nokia, DELL and other large enterprises.
