Selective Pallet Racking for Warehouse Storage System

Place Of Origin:	Jiangsu China (Mainland)
Container Load:	25tons Per Container
Width:	1000-3600mm
Feature:	Corrosion Protection
Export Markets:	Global
Material:	Steel
Structure:	Rack
Serviceability:	Common Use
Mobility:	Adjustable
Closed:	Open
Development:	Conventional
Weight:	up to 5, 000 Kgs Udl/Level/Layers
Height:	up to 20m

Product Description

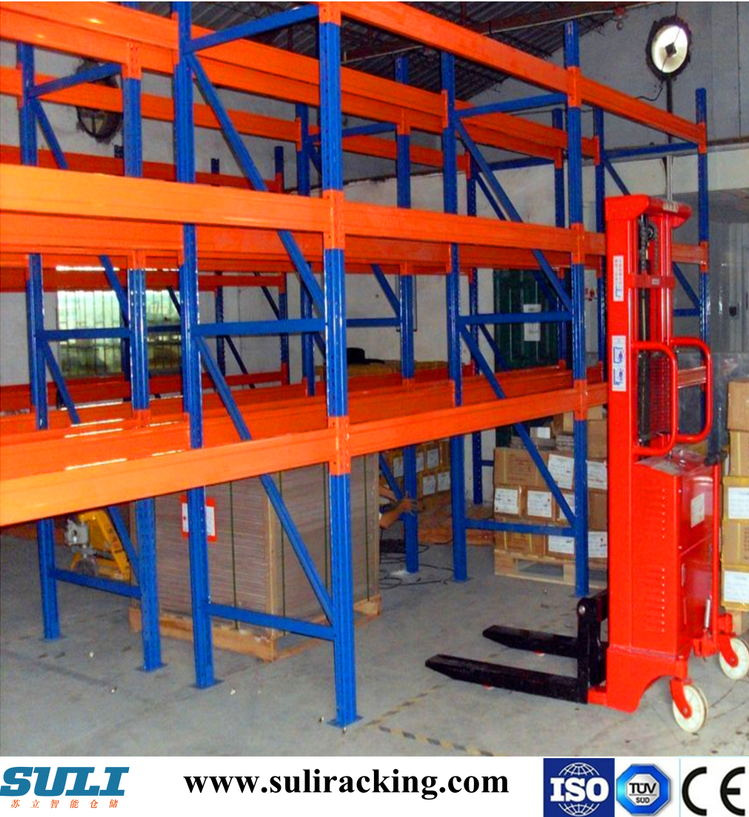

Pallet Racking system as the most popular and economical racking in warehouse, it has characters with concise appearance,safe and reliable,rapid access,save space.etc.
      With Epoxy powder electrostatic coating for the surface treatment,sturdy and durable, the beam can be easily adjusted by each pitch 50mm or 75mm on the upright to meet your variety  loading height requirements.

Parameters:
Load Capacity:500-5,000 kgs UDL/beam level.
Height: 500-20,000mm
Depth: 400-1,500mm
Length: 1,500-3,300mm
Special sizes also available to specific storage needs
Racking Finish:Powder Coated Finish or galvanised
Meterial: Steel Q235

Pallet Racking Parts & Accessories :
* Upright sections: 80*60*2.0mm, 90*65/70*2.0mm, 100*70*2.0mm, 120*90/95*2.0-3.0mm, etc
  * Box beam sections: 80*50*1.5mm, 100*50*1.5mm, 110*50*1.5mm, 120*50*1.5-2.0mm, 140*50*1.5-2.0mm, 160*50*1.5-2.0mm,etc.,
  * Horizontal & diagonal braces, row spacer,upright footplates, safety locking pins,
     bolts & nuts, anchors and all necessary components.

Package & Shipping:
  --Wrapped by poly sheets and reinforced by steel straps
  --Fixed on the polywood pallets
  --Small parts are packed in the boxes or according to customers' requirements.
Container load:10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container
Why us:
Fast, Easy Assembly-  Our perfectly straight posts (vs. traditional wedge-shaped) allow for quick, easy bracing connection
Flexible Design - With easy, bolted assembly and a variety of frame depths and heights up to 47 ft, we can meet both standard and custom application requirements.
Excellent Quality-
1) Compatible Frames: column profile matches MOST other manufacturer's teardrop design making it easy to add-on to existing systems;
                               2) Galvanized Steel: bracing and base plates are constructed of galvanized steel (at no extra cost) preventing rusting and chipping like paint alternatives;
           3) Powder Coat Paint Finish:Available in numerous standard and custom colors, our powder coat process provides a uniform and long-lasting finish;
Quick Delivery - We pride ourselves on short lead times and FAST delivery so you can get back to business!
Quick Response-We commitment to provide a detailed quotation and product information; promise to tailor your required products in the shortest time.

Request a quick Quote:
Please inform us the following information for a quick quotation:
1) layout of your warehouse
2) storage requirement on the cargo(temperature etc)
3) dimension and weight of the pallet(packed with cargo)
4) How many levels you want and loading capacity of each level
5) How many pallet of cargo you need to storage
6) Parameter of your forklift ( to decide the width of aisle between racking).
