Tempered Flat/Curved Glass with Large Board
| Price: | US $ 6/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 200/Square Meter |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | TCG |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Various Size: | Various Color |
| Samples: | 3-7days |
| Min. Radius: | 400mm |
| Type: | Tempered |
| Color: | Clear, Green, Bronze, Blue, Silver, Gold, etc |
| Technique: | Tempered Curved Glass |
| Thickness: | 3-22mm |
| Quality: | Top |
| Warranty: | 10years |
| Delivery Time: | 3-5weeks |
| Shape: | Curve |
| Appearance: | Bent Tempered |
| Steel Degree: | Tempered Glass |
| Thickness Of Flat Tempered Glass: | 6MM |
| Thickness Of Curve Tempered Glass: | 6MM |
| Fragment State: | Ⅱ |
| Technics: | Physically Tempered |
| Flatness: | High Class |
| Usage: | Window,Door |
Product Description

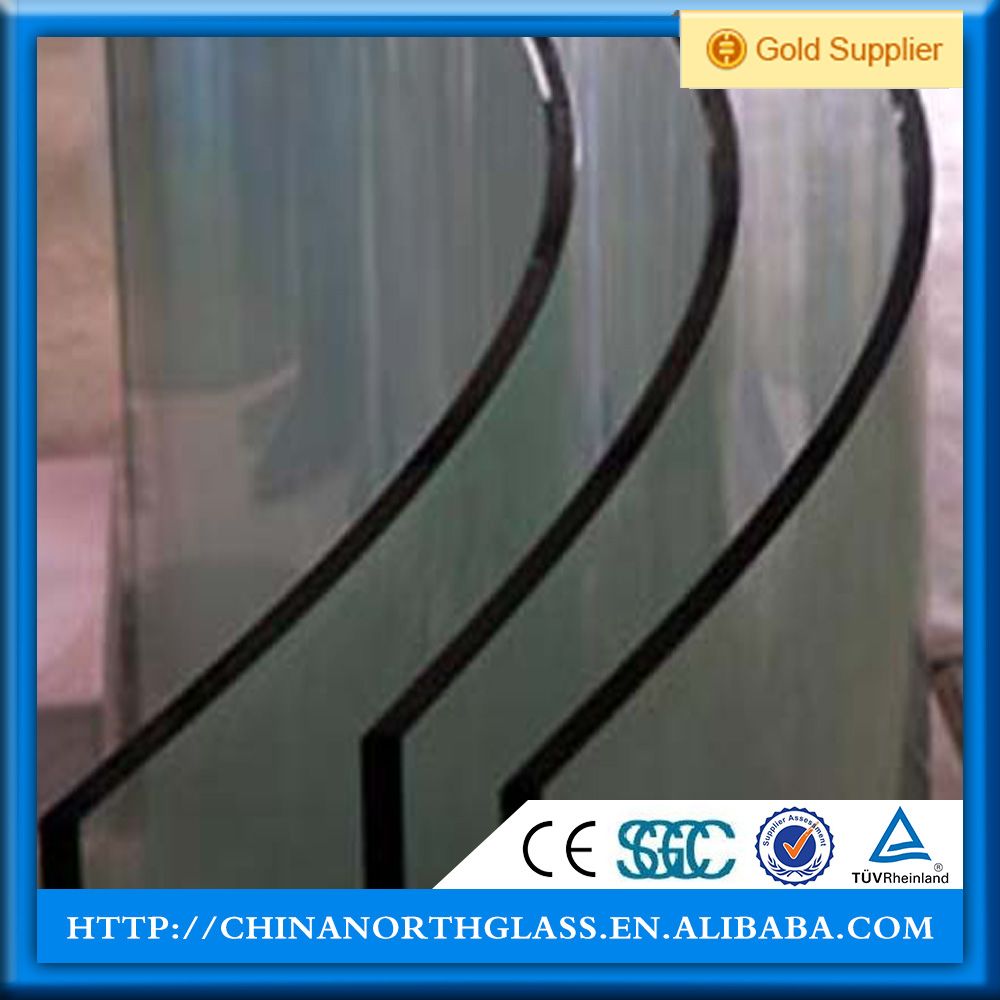

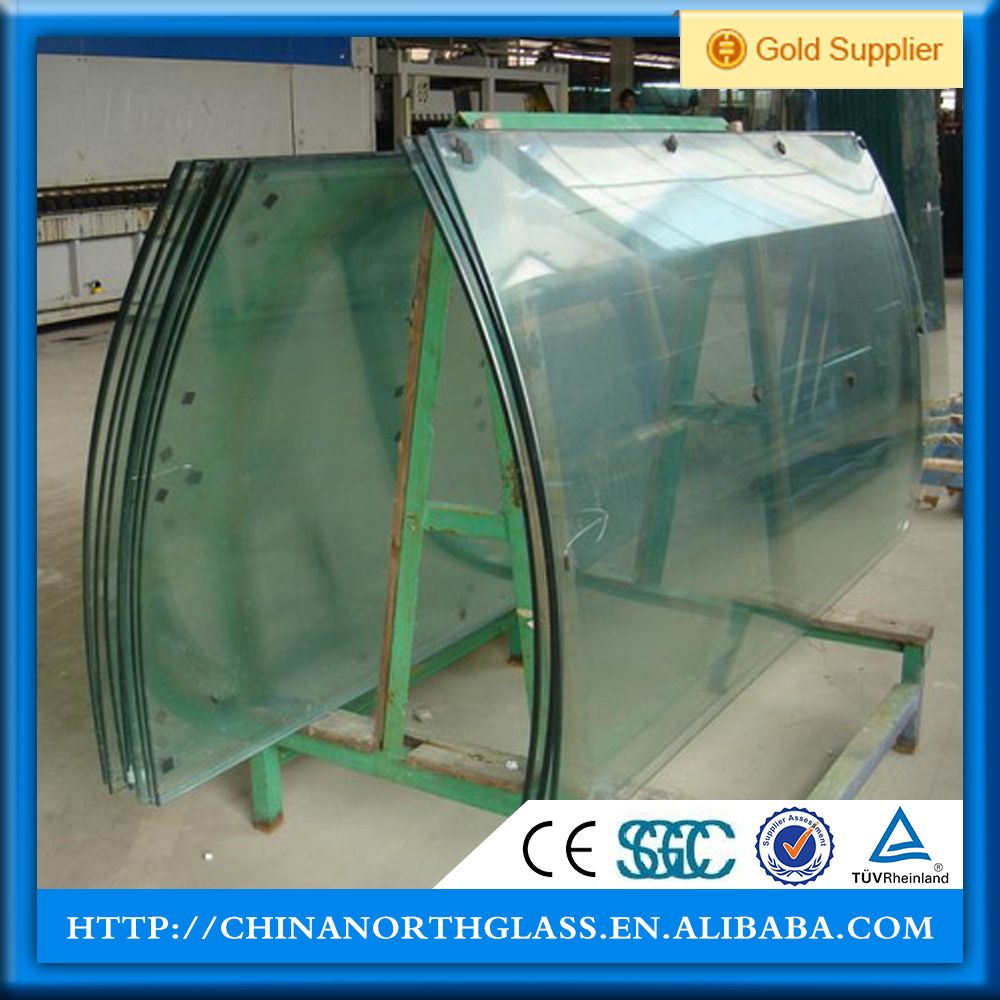

Tempered Flat/Curved Glass with Large Board
Specifications of tempered curved glass:
Thickness of curved tempered glass: 3mm-22mm
Max: 3300mm*12800mm Min: 180mm*180mm
Min. Radius: 400mm
Tempered curved glass adopt the similar process with tempered glass, but before the cooling process, using the external power bent the glass to a proper radian according the requirement, its wind pressure resistance is better than flat tempered glass and other kinds glass for the special shape.
Applications:
Curved tempered glass is safety glass, extensively applied in the places which has critical request of high mechanical strength and safety, such as glass door, curtain wall of building, indoor partition, elevator, showcase, door and window of building, furniture and household appliance etc.
Curved tempered glass/bended glass/bent glass widely use in esthetics architecture field for the beautiful appearance.
Parameters:
1. Visible Light Transmittance ≥ 91%
2. Iron content: ≤ 120ppm Fe2O3
3. Density: 2.5g/CC
4. Yong's Module: 73Gpa
Tensile Strength: 42Mpa
Competitive Advantage:
1. The anti-impacting performance and anti-bending performance of curved tempered glass are 3-5 times higher than ordinary glass.
2. Curved tempered glass breaks into granules in case of strongly knocked, so no hurt would be caused.
3. Deflection angle of curved tempered glass is 3-4 times larger than that of float glass with same thickness. When there is load on curved tempered glass, its maximum tensile stress does not locate on the glass surface as float glass, but on the central point of glass sheet.

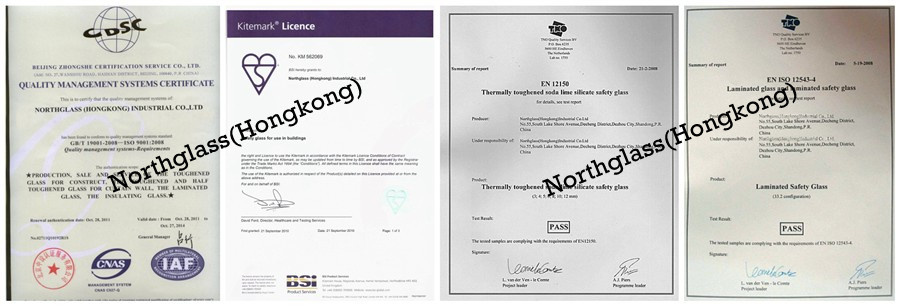

Certificates:

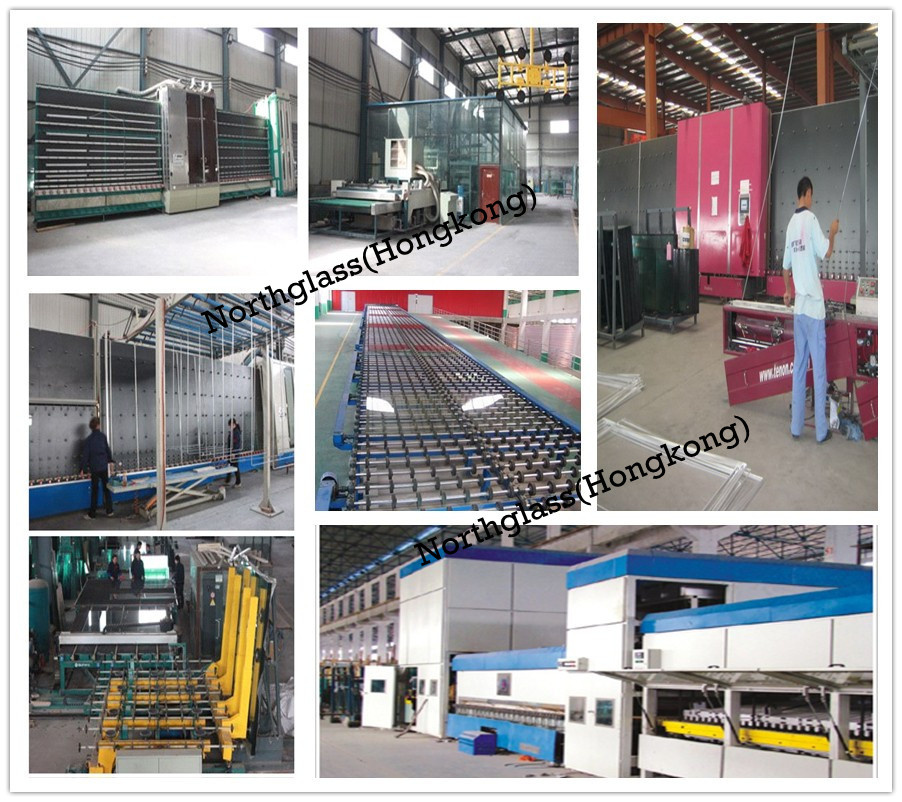

Factory situation:
Beijing Northglass Technologies Co. Ltd, a leader in glass industry, has been engaged in the research, development, processing glass since 1987. Produce range includes: Laminated safety glass, tempered safety glass, low e insulated glass, reflective glass, silk screen printed glass(ceramic frit glass, enamalled glass), tempered glass, curved tempered glass, hot curved glass, heat strenghened glass, fire proof glass, bullet proof glass, ultra clear glass(low iron glass), etc for curtain wall shower doors, windows, facades and furniture applications.
By far, we have asset USD50 million. Our head quarter is in HongKong, and our 3 fabrication companies are in China mainland having more than 1, 000 employees, of whom over 46% is specialized techical personel. Our company covers more than 390.000sqm. We have massive elites working at each process of working, among whom, professional technicians are over 26% and employees with Bachelor's degree are over 93%.
Our glass pass Australian CSI certificates, US IGCC SGCC certificates, European CE certificates and Chinese national certificates. Now we are working with customers in over 100 countries. To help customer to better achieve their success is our aim. Welcome you work with us, and establish long term cooperation!
