Three-Way Forklift Equipped Vna Pallet Rack

Three-Way Forklift Equipped Vna Pallet Rack
Price: US $ 950-1000/Ton
Min Order: 10/Ton
Pay Type: L/C,T/T
Prod Model: VNA 90
Maxium Height: up to 15m
Aisle Width: 1800mm
Forklift: 3 Way Forklift
Norm: Fem 10.2.02
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 5-15m
Closed: Semi-closed
Development: Conventional
Serviceability: Common Use
Weight: 500kg-2000kg

Product Description

1.    Product Description:

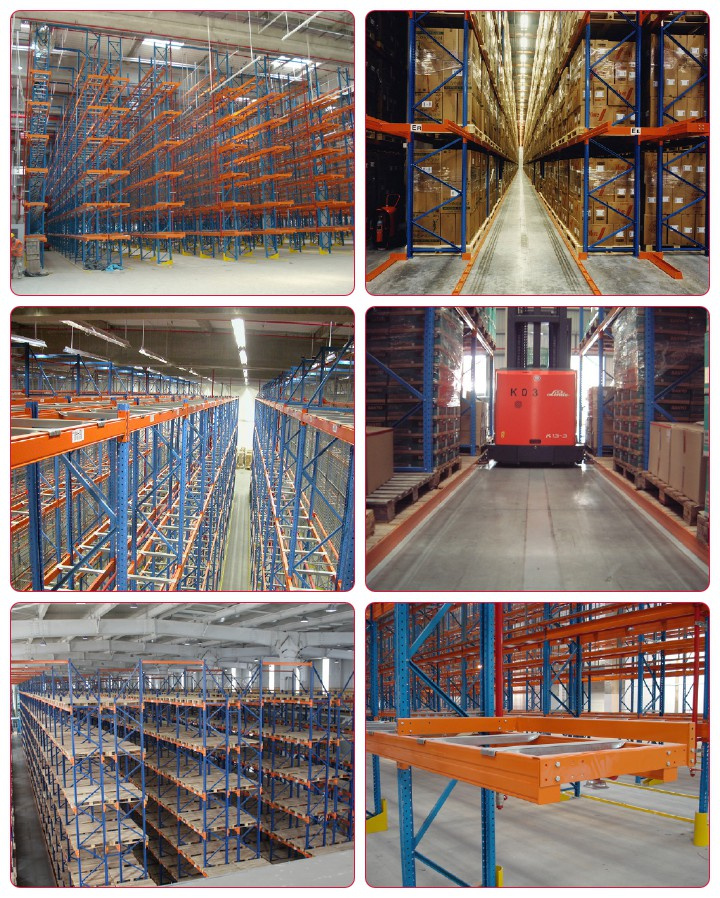

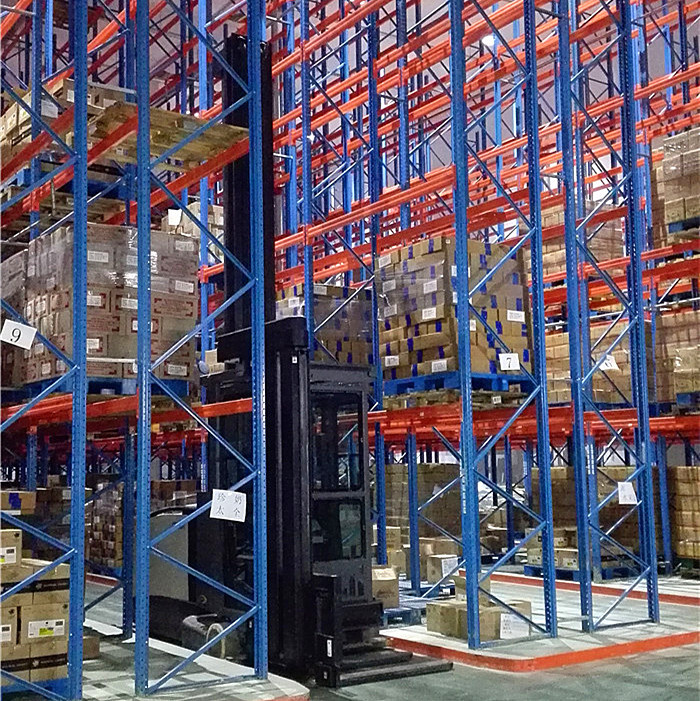

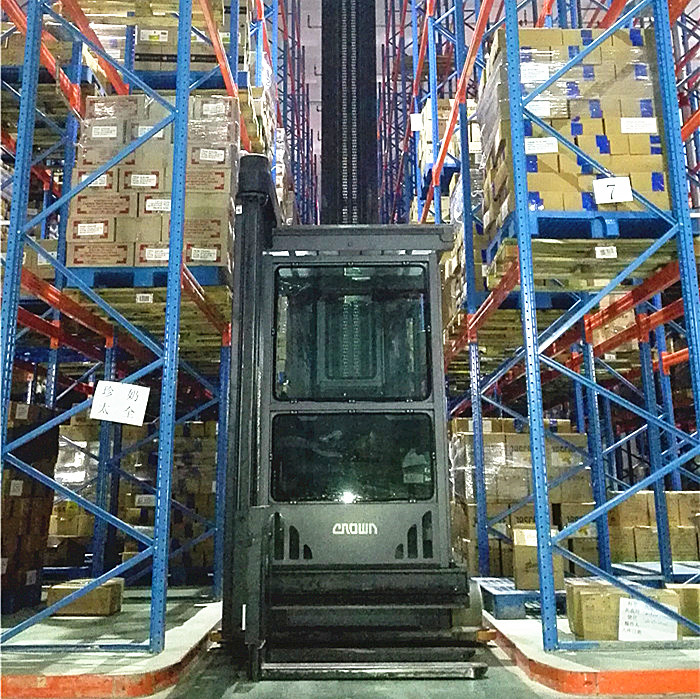

VNA rack is derived from the selective pallet racking, and only the floor guide rails are equipped. (Some trucks with magnetic conductance does not need floor guide rails). The Very Narrow Aisle (VNA) system handled with special handling equipment. The VNA truck with rotate mast or fork from left to right position to store in and pick up pallets from the aisle without turning. VNA truck can operate in margined aisle width and greater height than conventional truck.



VNA pallet rack Floor utilization is 50% and 100% selectivity, which is the best option for high-density storage.It is simple and good for first in first out application. The system is found in warehouse, super market, distribution center, pharmaceutical industry, etc.

Aisle width is approximately 1700-2000mm depends on reach height and pallet depth.
The system is designed for standard palletized goods. The size and weight of the goods, the specification of the VNA truck can be determined to design the racking structure. Rack beam height can be as high as 15m. Normally the working aisles for the VNA truck can be around 1800mm.

2.  The basic components

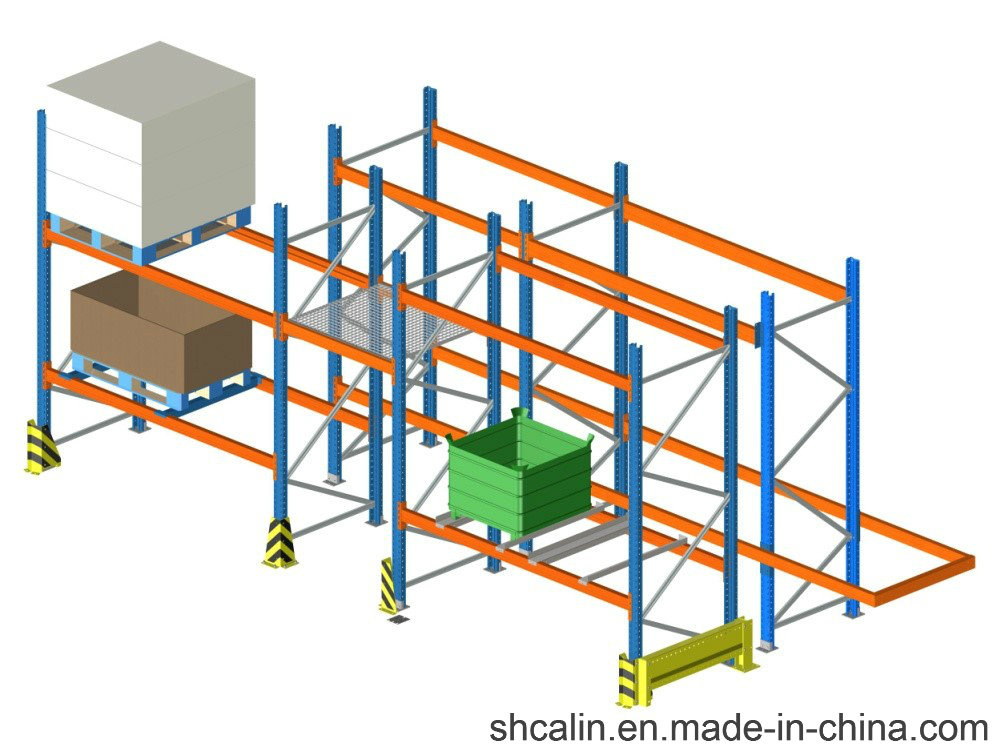

Selective pallet racking is composed of basic element such as frames and beams. It also consists of a full range of accessories to fulfill all of your requirements. The system is designed for the optimized storage of goods of all sizes and weights.



The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are  RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.

3. The main components are uprights and beams, the standard specifications are as follows:
Main componentsSection sizeThicknessMaterial
Upright90*701.8Q235B
90*702.0Q235B
90*702.3Q235B
100*802.0Q235B
100*802.3Q235B
100*802.5Q235B
Box Beams80*50*1.51.5Q235B
100*50*1.51.5Q235B
120*50*1.51.5Q235B
140*50*1.51.5Q235B
140*50*1.81.8Q235B
160*50*1.81.8Q235B
160*50*2.02.0Q235B


4. Advantages and Key benefits·

Complies with international norms and regulations
·        Wide range of basic components for storage of all pallet sizes and weights.
·        Many standard accessories to meet every storage need you can imagine
·        Computer aided design ensuring the best solution for every application, including static calculations
·        Rigid and stable construction
·        High quality of finish
·        Easy and quick installation
·        Mass volume production to offer very cost effective products

5. Beam Loading Chart:
Beams SpecificationClear Entry (mm)  Deflection<1/200
1500180020002300250027003000330036003900
B80*50*1.54000280022001700150012001000850
B100*50*1.5 42003400280025002100170014001200
B110*50*1.5  45003300280025002200180015001200
B120*50*1.5   4000340030002600220018001500
B140*50*1.5    450038003200300026002000
B160*50*1.5     48004200380033002800

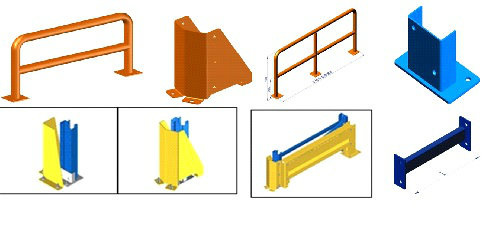

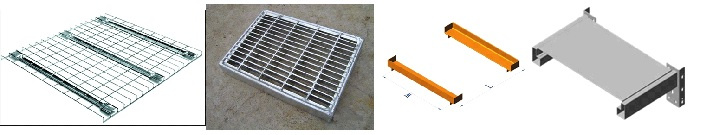

6. Available accessories:

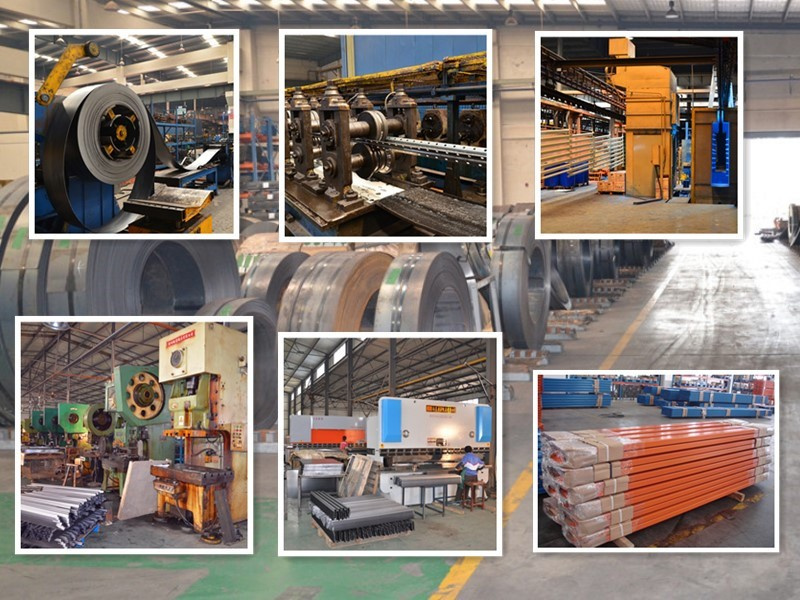

7. Factory Production:


8. RFQ documents:  Before you send us your Requirement For Quotation, please prepare the following information:
  1. Warehouse layout CAD drawings if available.
  2. Pallet size, entry side, width, depth, height of goods.
  3. Loading weight per pallet.
  4. Clear height of the warehouse
  5. Your forklift information, working aisles width and max. reaching height.
  6. Your intra logistic flow within the warehouse.


Shanghai Calin Logistic Equipment Co. Ltd. Is one of the professional suppliers for storage and logistic equipment with the specialty of racking design, manufacturing, sales and services. The company is located in Changning District, Shanghai. Our main business is to provide racking systems for the storage of palletized or small goods and longer items.

The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.

There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.

Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
