Warehouse Storage Adjustable Heavy Duty Steel Pallet Rack

Prod Model:	PN90
Deflection:	1/200
Norm:	Fem 10.02
Finish:	Epoxy Paint
Max. Loading:	4000kg/Level
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Height:	5-15m
Closed:	Semi-closed
Development:	Conventional
Serviceability:	Common Use
Weight:	500kg-2000kg

Product Description

1. Product Description:

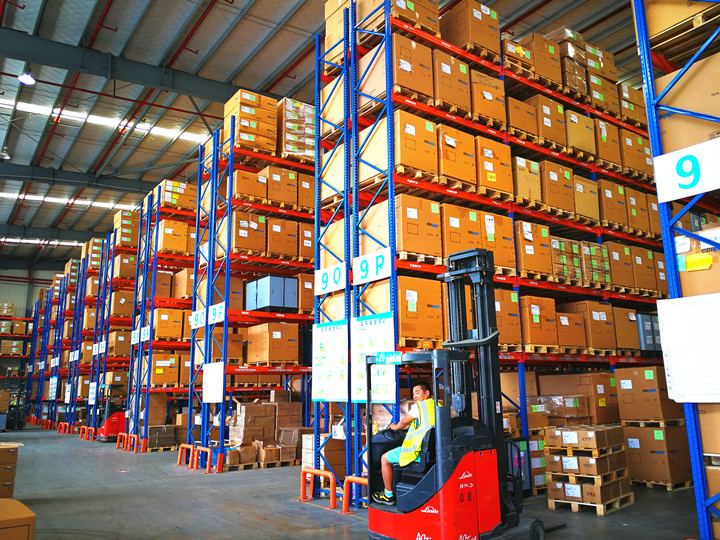

Selective pallet rack is the most common of all storage system for palletize goods. It is compatible with all type of handling equipment. It is efficient and 100% selectivity. It is simple and good for first in first out application. Its disadvantage is low utilization of floor space. The system is found in warehouse, super market, distribution center etc.


2. Basic Components:

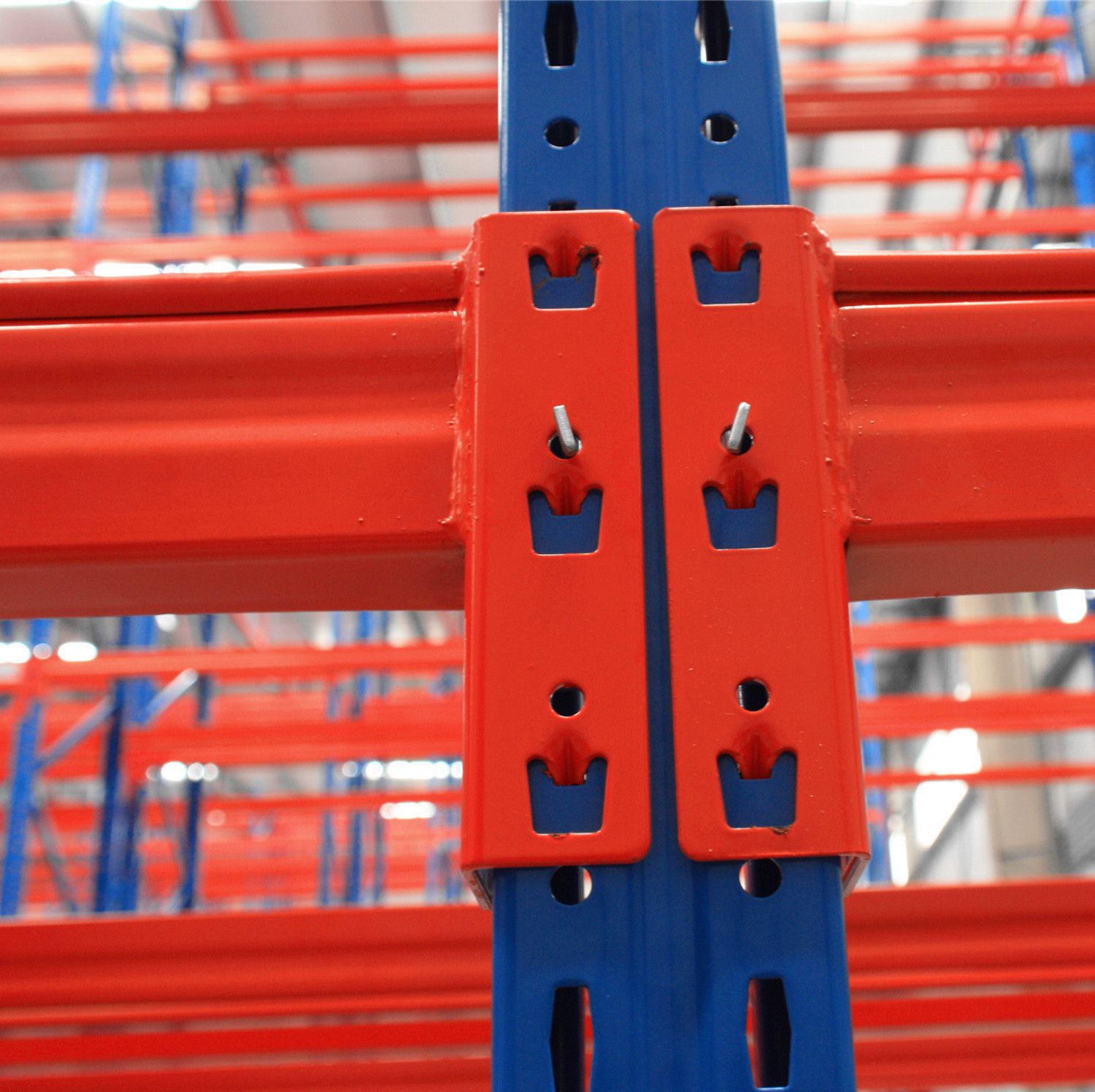

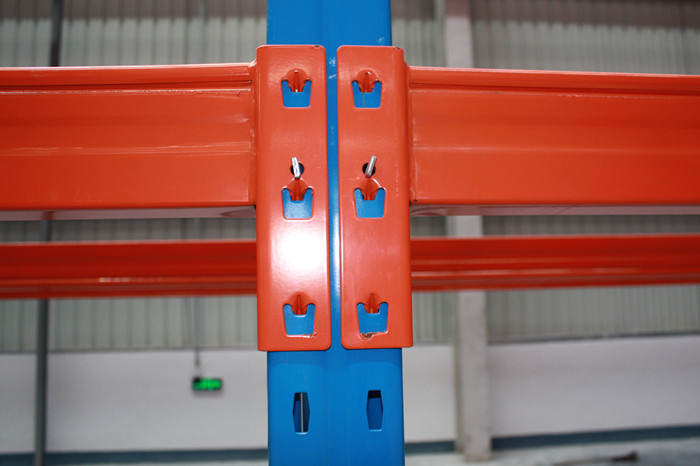

Selective pallet racking is composed of basic element such as frames and beams. It also consists of a full range of accessories to fulfill all of your requirements. The system is designed for the optimized storage of goods of all sizes and weights.



Available accessories:

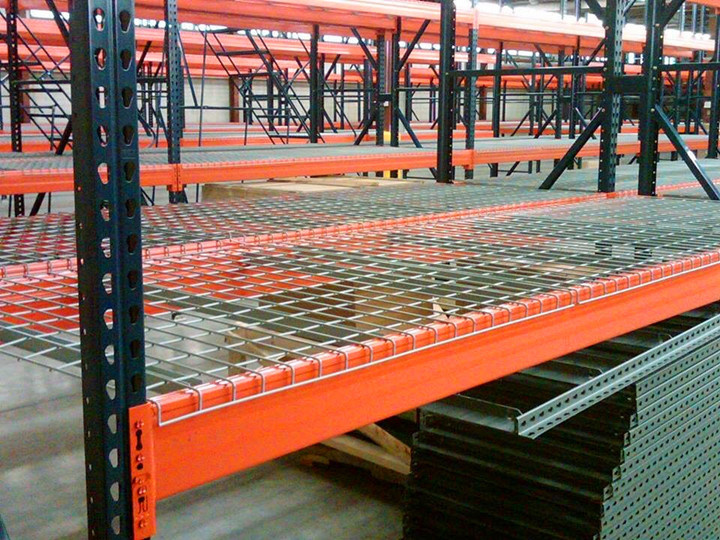

The optional accessories include Corner guard, Barrier, Frame protector, Pallet support bar, Wire mesh decking, Grating panel, Steel shelves, etc.



The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.

3. Product Specifications:

Main components	Section size	Thickness	Material
Upright	75*63	1.5	Q235B
	75*63	1.8	Q235B
	90*70	1.8	Q235B
	90*70	2.0	Q235B
	90*70	2.3	Q235B
	100*80	2.0	Q235B
	100*80	2.3	Q235B
	100*80	2.5	Q235B
	120*95	2.3	Q235B
	120*95	2.5	Q235B
	120*95	2.75	Q235B
Box Beams	80*50*1.5	1.5	Q235B
	100*50*1.5	1.5	Q235B
	120*50*1.5	1.5	Q235B
	140*50*1.5	1.5	Q235B
	140*50*1.8	1.8	Q235B
	160*50*1.5	1.5	Q235B
	160*50*1.8	1.8	Q235B

Beam Loading Chart:

Beams Specification	Clear Entry (mm) Deflection<1/200
	1500	1800	2000	2300	2500	2700	3000	3300	3600	3900
B80*50*1.5	4000	2800	2200	1700	1500	1200	1000	850
B100*50*1.5		4200	3400	2800	2500	2100	1700	1400	1200
B110*50*1.5			4500	3300	2800	2500	2200	1800	1500	1200
B120*50*1.5				4000	3400	3000	2600	2200	1800	1500
B140*50*1.5					4500	3800	3200	3000	2600	2000
B160*50*1.5						4800	4200	3800	3300	2800

4. Advantages and Key benefits·
Complies with international norms and regulations
· Wide range of basic components for storage of all pallet sizes and weights.
· Many standard accessories to meet every storage need you can imagine
· Computer aided design ensuring the best solution for every application, including static calculations
· Rigid and stable construction
· High quality of finish
· Easy and quick installation
· Mass volume production to offer very cost effective products

5. Factory Production:



6. RFQ Documents:
Before you send us your requirement for quotation, please prepare the following information:

1. Warehouse layout CAD drawings if available.
2. Pallet size, entry side, width, depth, height of goods.
3. Loading weight per pallet.
4. Clear height of the warehouse
5. Your forklift information, working aisles width and max. Reaching height.
6. Your intra logistic flow within the warehouse.

7. Q & A

1. Are you a trading company or manufacturer?Actually we are the trading/exporting department of our parent company, the manufacturer for wide range of storage racking products. We can be considered as integrated trader and manufacturer.

2. How many years are you in Racking Business?
We are in manufacturing of racking business since 2002 for almost 15 years.

3. What is your company annual sales in rack business (last three years)
Annual sales for racking is around USD600,000 to 700,000 with average increase of 10-15%.

4. Company overall manpower and the covering area.
Our factory covering the area of 15,000 M2, with almost 120 staff.

5. Define your competitive advantage and value-added service
Our competitive advantage is Professional, Innovation and Focus. The value we can add is to provide the most suitable storage solution with the professional proposal design, logistic equipment integration service and reliable after sales service.
        Our advantages:

1. Cost Lead Advantage: we offer competitive price based on factory cost.
2. Providing Storage rack proposal design free of charge: We can offer design proposal for racking solutions with senior experienced engineers.
3. Regular training to our Business partner (distributor): We offer the training to our distributors/agents to support the before-sales service.
4. Fast delivery, lead time from 15-25 days.

6. Where does your product export to?
We mainly export to the emerging countries in South-East Asia, Middle East and South American. We are also developing other Areas in Asia and US market.

7    What is the term of payment?

1. T/T payment.  30% down payment, 70% before delivery. (or against B/L)
2. LC at sight or 30-60 days.


8. Are samples available?
Yes, we can prepare some sections of samples for collection. Special samples are available on orders.

9. What's the procedure of trading?
Design racking layout proposal →Confirm layout drawing→ Offer Quotation→ PI →Confirm PI →Arrange 30% deposit→ Manufacture→ QC inspect→ Pay balance→ Shipping

10. Do you have MOQ (minimum order quantity) limitation?
No. You can order small quantity as well. However, large quantity always have better price. We recommend the order quantity for regular products at least one 20ft. container, which is about 17 tons.
