TM-Xy150 Manual 75mm Ink Cup Pad Printer
| Price: | US $ 400/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | TM-XY150 |
|---|---|
| Ink Cup Size: | Φ75 mm |
| Plate Size: | L 214 * W 100 mm |
| Worktable Size: | L 105 * W 180 mm |
| Workpiece Height: | 100 mm |
| Workpiece Length: | 100 mm |
| Printing Area: | L 80 * W 60 mm |
| Vertical Stroke: | 100 mm |
| Horizontal Stroke: | 150 mm |
| Up/Down Worktable: | 50 mm |
| Machine Dimension: | L 356 * W 178 * H 443 mm |
| Transmission Type: | Single-Colour Pad Printer |
| Speed（pcs/hr）: | 1100 |
Product Description
TM-XY150 Manual 75mm Ink Cup Pad PrinterProduct Description
Installation Video
http://v.youku.com/v_show/id_XNTQ2NzQzMzA0.html
work video
http://v.youku.com/v_show/id_XNTc4MTA2NDEy.html

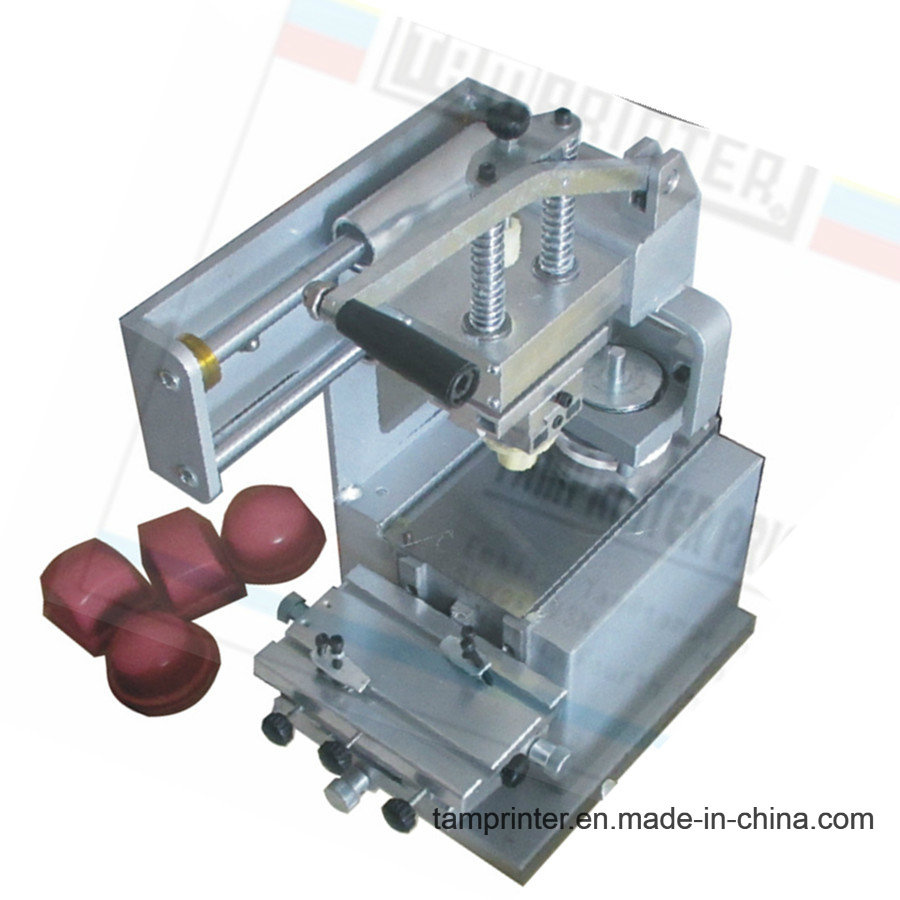

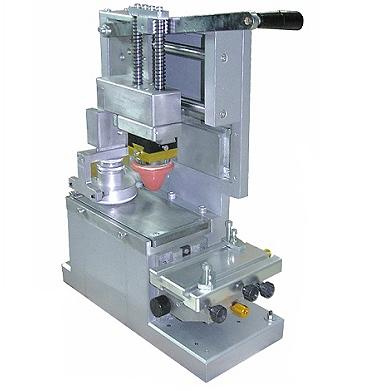

MANUAL PAD PRINTING MACHINE (WITH INK CUP)
Characteristics
| No. of Colors | 1 |
| Ink Cup Size | Φ75 mm |
| Plate Size | L 214 * W 100 mm |
| Worktable Size | L 105 * W 180 mm |
| Workpiece Height | 100 mm |
| Workpiece Length | 100 mm |
| Printing Area | L 80 * W 60 mm |
| Vertical Stroke | 100 mm |
| Horizontal Stroke | 150 mm |
| Up/Down Worktable | 50 mm |
| Machine Dimension | L 356 * W 178 * H 443 mm |
| Package Dimension | L 430 * W 250 * H 480 mm |
| Net Weight | 26 kgs |
| Gross Weight | 28.5 kgs |
(1) It is the first pad Printing machine in our Printing Production Category. It has been developed and redesigned over the years to meet our users ever changing needs.
(2) The appearance, technical specifications, and the printing precision have been improved to increase the quality and value for the user.
(3) This pad printer machine requires no energy source, it can be easily moved, and offers low cost printing with high precision.
(4)The operation is simple and can be used for printing cosmetic packaging, sporting equipment, electrical and electronic components, and other goods trademark.
Advantages
1. Manual operating .
2. Easy to change plate.
3. Lower price.
4. Coin aluminium structure.
Basic Configuration
1. One pad
2. One steel plate
3. One blade.
4. One operation manual
Printing Elements
1. Pad ink and thinner;
2. Fixture;
3. Pad plate;
4. Rubber pad.

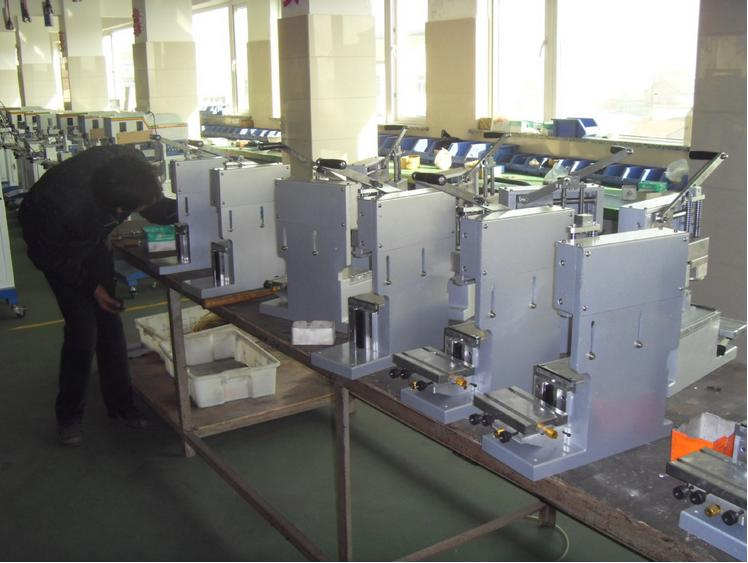

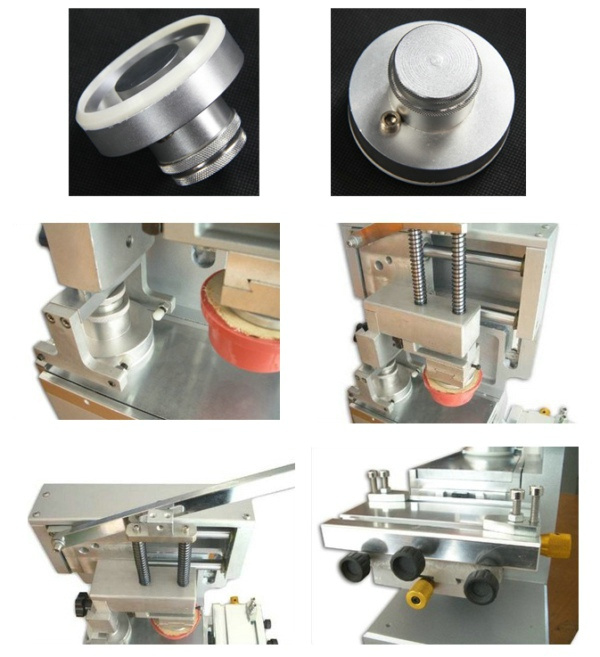

Machine show
