Urgo Pallet Racking Drive in Racks

Urgo Pallet Racking Drive in Racks
Price: Negotiable/Set
Min Order: 20/Set
Pay Type: L/C,T/T
Prod Model: DIR201705
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 5-15m
Closed: Open
Development: New Type
Serviceability: Common Use
Weight: 500-4000

Product Description

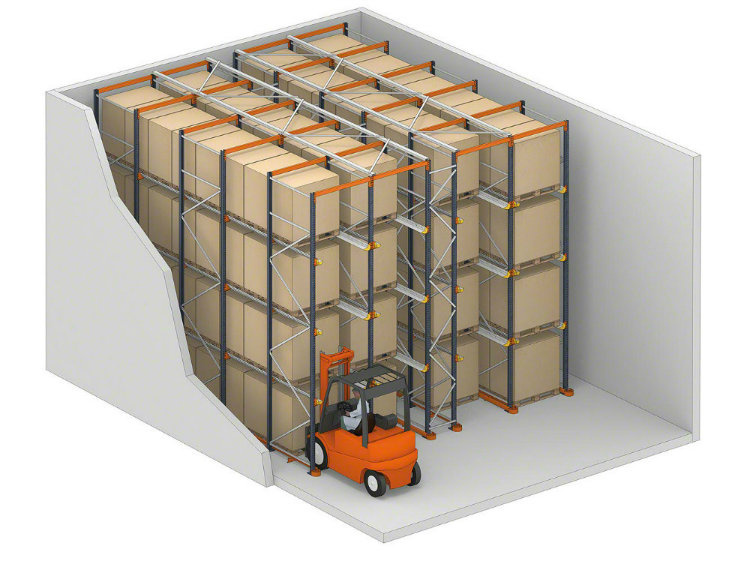

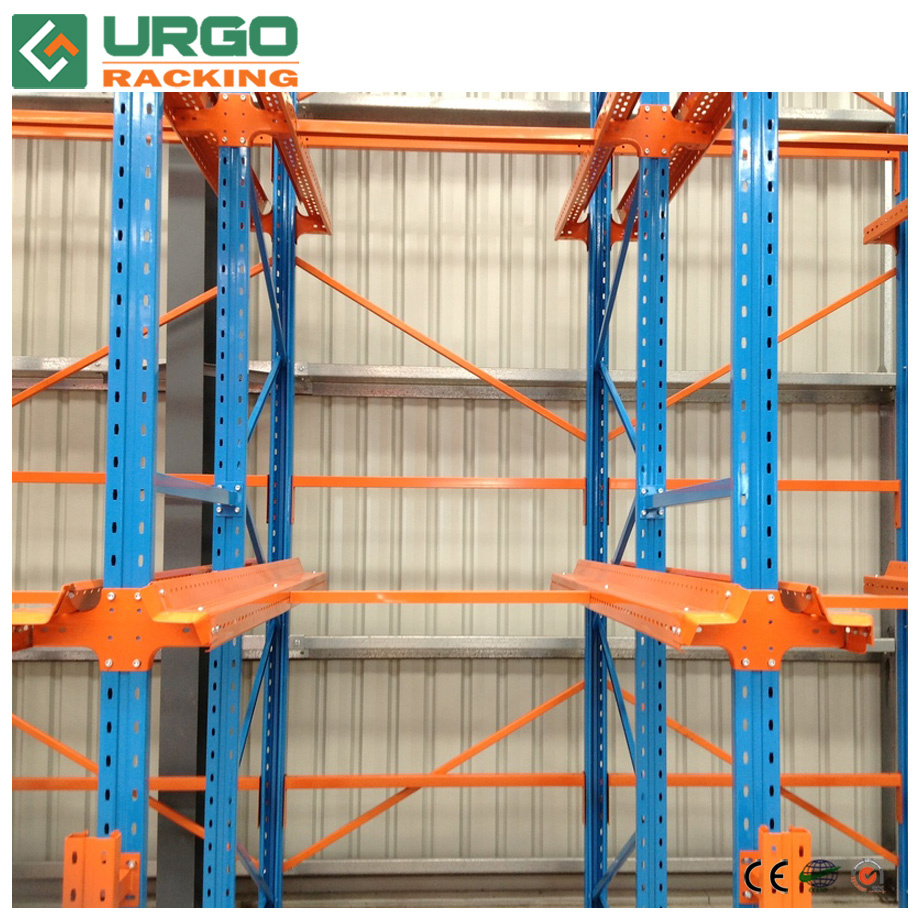

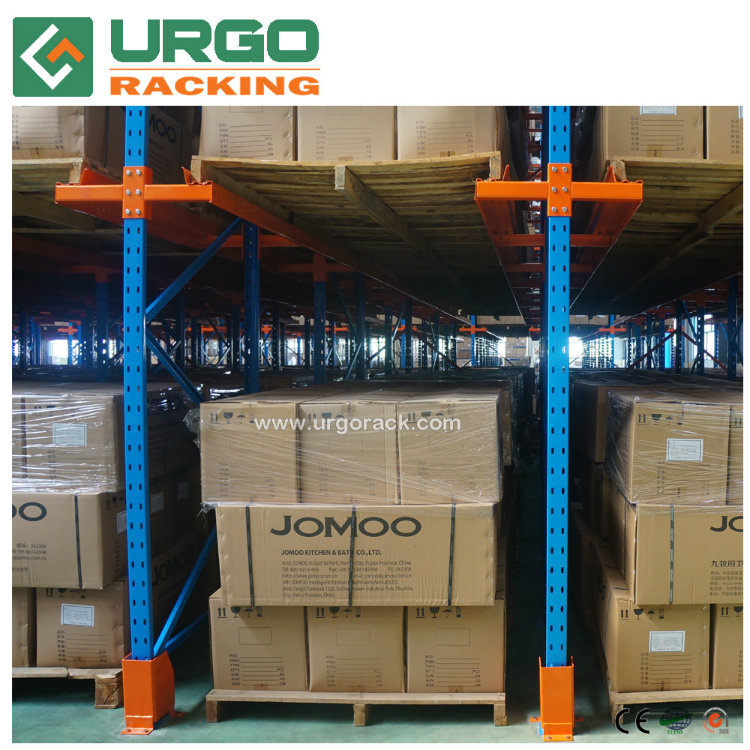

URGO Drive In Racking is the most economical high density pallet rack system designed for high volume SKU's. Increase density by 75% over selective pallet rack. Maximize the space in your warehouse with drive in racking. It is closed at one end, allowing for last in, first out(LIFO) storage. Forklift enters the rack and picks pallets off the rails. It is available in up to 20 pallets deep by 4-7 pallets high.









Product Structure

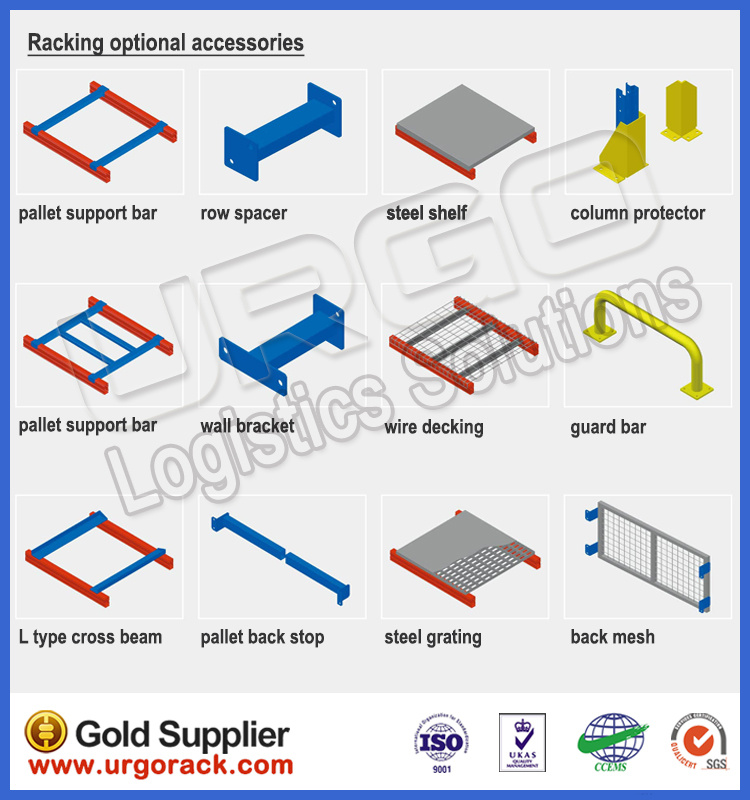

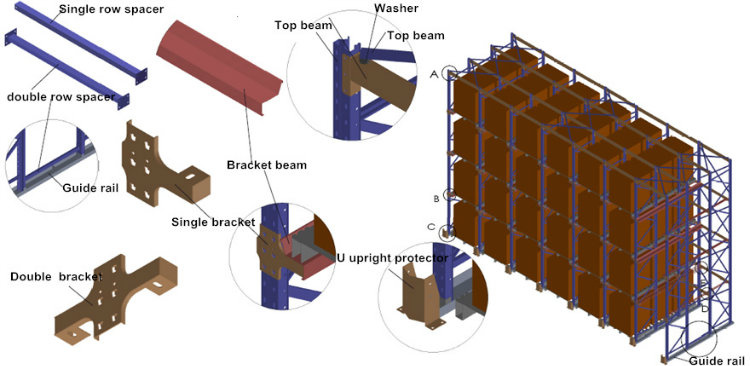

The structure of URGO heavy duty pallet rack includes uprights and beams, According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.

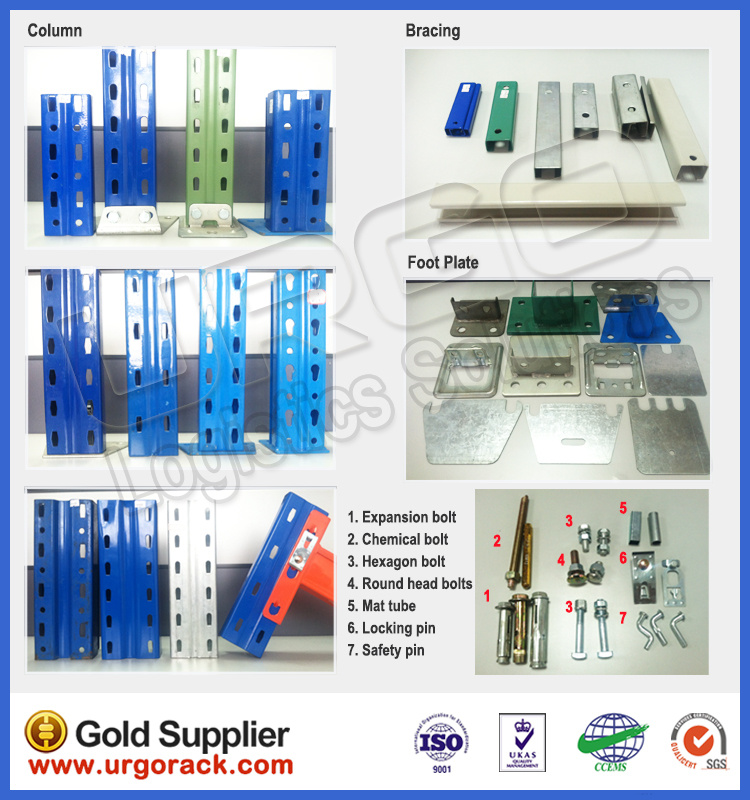

Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.

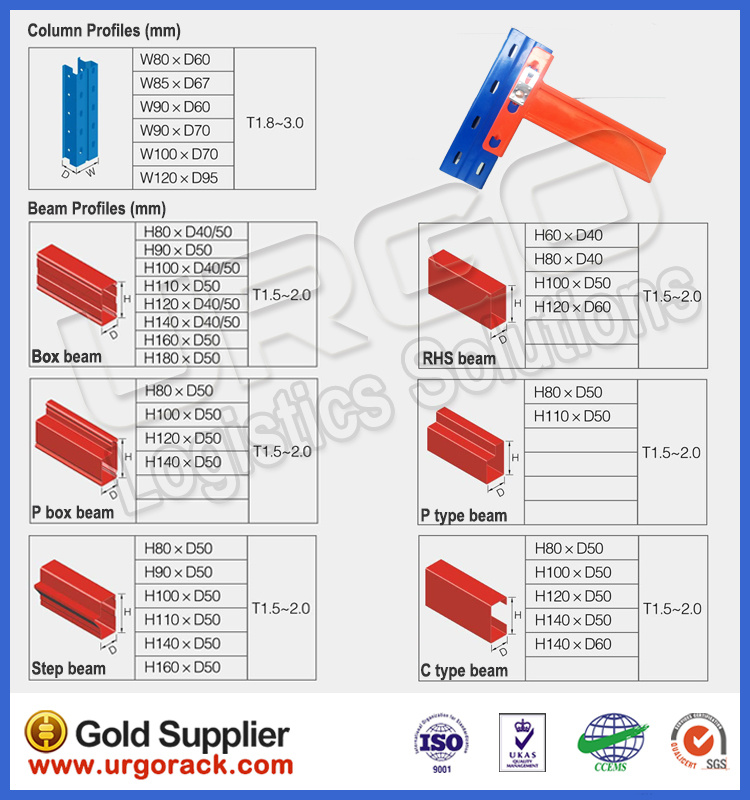

Column Profiles:

Column Specification (mm)Thickness (mm)             Upright Loading (kg)
  W80 x D60 1.8-2.0 4000-6000 KG
  W85 x D67 1.8-2.3 7500-12500 KG
  W90 x D60 1.8-2.5 8000-10000 KG
  W90 x D70 1.8-2.5 10000-12000 KG
  W100 x D70 2.0-2.5 11000-14000 KG
  W120 x D95 2.3-3.0 17000-21000KG

Beam:

1. High load capacity up to 5000kg.

2 .Manufactured with the highest quality steel Q235.

3. Orange epoxy coated (RAL 2004).

4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm

5. Boltless connection with 3/ 4/ 5 connector hooks.

6. A security pins per beam to prevent accidental dislodgement.

7. Powder coating finish

Beam Profiles:

Loading (kg)

 Specification (mm)

The Length of Box Beam (mm)
 1500 2000  2300  2500  2700  3000  3300  3600 3900
80 x 50 x 1.5 3000 1740 1340 1160 1010
90 x 50 x 1.5 4080 2350 1800  1645 1345  1010 850
100 x 50 1.5  2960 2260 1930 1680 1380 1040
 110 x 50 x 1.5   2640 2250 1950 1600 1340 1140
 120 x 50 x 1.5   3200 2730 2358 1930 1518 1379
 140 x 50 x 1.5    3868 3330 2720 2370 2020
 160 x 50 x 1.5     4220 3690 2970 2600 2340
 160 x 50 x 1.8      4400 3420 3020

 2590

160 x 50 x 2.0      4130 4170 3320

 2840

Loading (kg)

 Specification (mm)

The Length of P Box Beam (mm)
 1500 2000  2300  2500  2700  3000  3300  3600 3900
100 x 50 x 1.5 4470 2512 1900 1610 1380 1120 920
110 x 50 x 1.5 5484 3085 2332  1974 1693 1371 1133 952
120 x 50 x 1.5  3910 2957 2503 2146 1738 1436 1207 1030
 140 x 50 x 1.5  5722 4330 3662 3140 2543 2102 1766 1505
