Home LED Light Products Warehouse Adjustable Weight Storage Pallet Beam Rack
Warehouse Adjustable Weight Storage Pallet Beam Rack
| Price: | US $ 1000-1200/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T |
| Export Markets: | Global |
|---|---|
| Serviceability: | Common Use |
| Development: | Conventional |
| Closed: | Semi-closed |
| Mobility: | Combined |
| Structure: | Rack |
| Material: | Steel |
| Weight: | 500-5000kg |
| Height: | 2m-15m |
Product Description
Warehouse Adjustable Weight Storage Pallet Beam RackWe are the leading and professional manufacturer of warehouse racking in China.All products have detected by SGS, also have passed the ISO9001 quality certification.
All the rack that we produce is customized,We will be happy to give you a quotation upon receipt of your detailed requirements.
Our Storage Rack Advantages
1. Color and size can be adjusted according to your requirements.

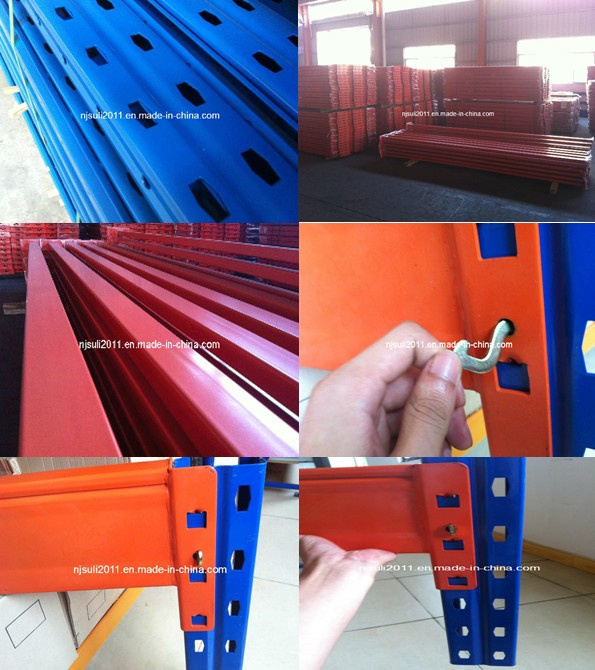

2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.
Our Advantages
1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc.)
Pls provide the following for a quick quotation:
1. Length, width, height of one rack unit
2. Loading capactiy per layer
3. How many layers
4. Warehouse drawing if you have
Services:
Our free services include consultations and sample CAD layouts of your proposed rack system. Don't hesitate to consider reviewing the racking systems on site or at our headquarters. Get the racking system you need at the best price guaranteed.
Remark:
We are very professional in producing various pallet racking, Supermarket shelving,longspan shelving, cantilever racks, rivet shelving, drive in racks, steel mezzanine, carton flow racking and other related storage equipments.
| Feature of Our Storage racking | ||
| Meterial | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China. | |
| Surface treatmet: | Podwer coating; Normal color(Orange or blue) or according to customer' s requirement. | |
| Size | Height | 2-11m (6.56-36.1ft), or according to customer' s requirements. |
| Width | 1.5-3.3m (4.92-10.82ft), or according to customer' s requirements. | |
| Length | 0.8-1.2m (2.63-3, . 94ft), or according to customer' s requirements. | |
| Thickness | Upright: 1.5-2.5mm; Beam: 1.5-2.0. Refer to below sheet 2 for more details. | |

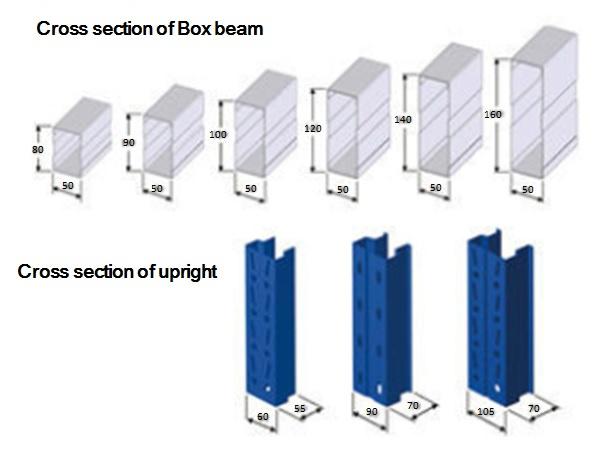

| Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. | |
| Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. | |
|
Loading capibility (per layer) |
700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details. | |
| Layer nos. | 2-7 layers. or customized. | |

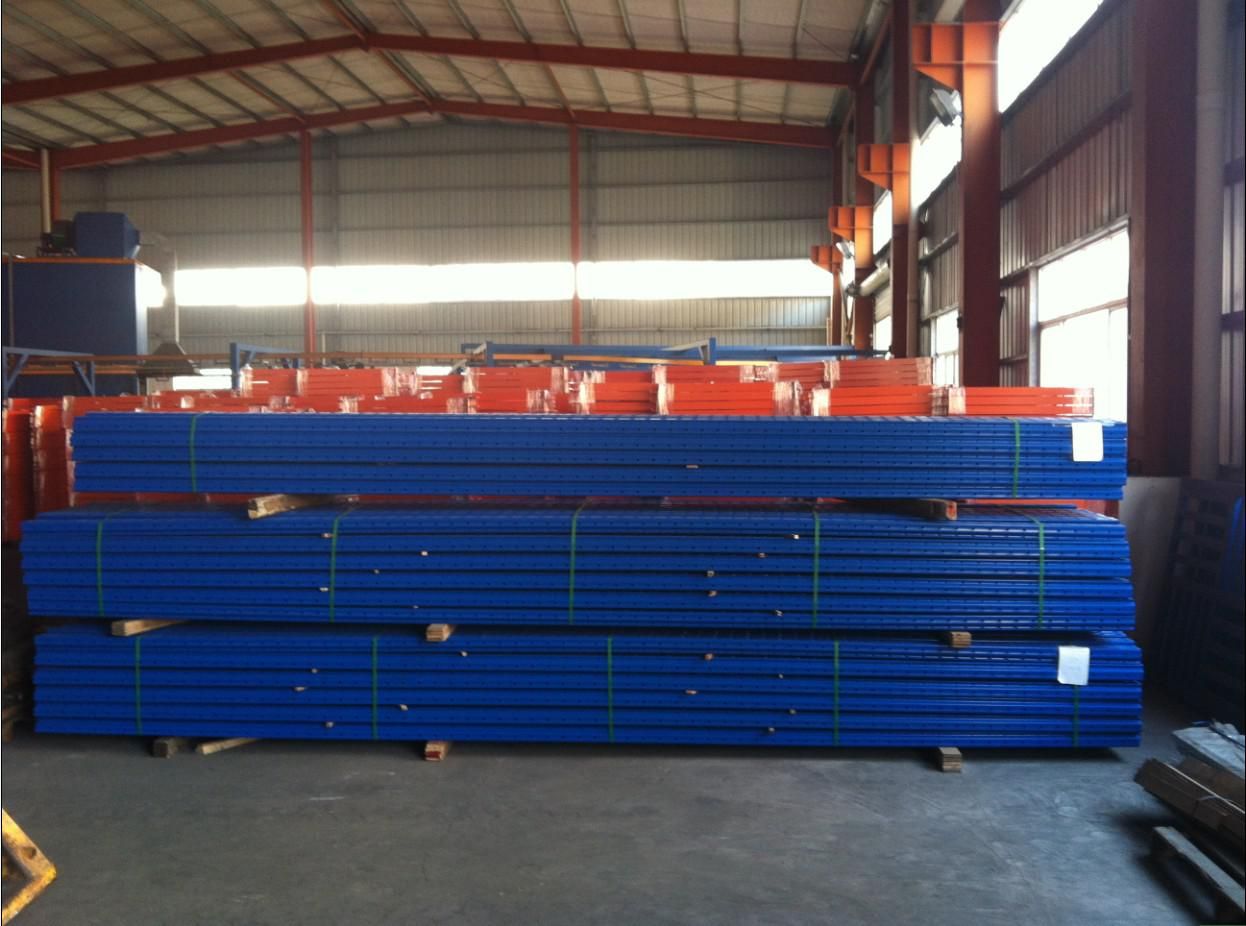

| Packing detial: | Experienced export packing (uprights and beams' both end with cardboard, then bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement. | |
| Delivery detial: | 10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits. | |
