Warehouse Drive in Racking with Upright Protector Rail Guide
| Price: | US $ 1180-1350/Ton |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T |
| Color: | as Per Your Require |
|---|---|
| Export Markets: | Global |
| Serviceability: | Common Use |
| Development: | Conventional |
| Closed: | Open |
| Mobility: | Adjustable |
| Structure: | Rack |
| Material: | Steel |
| Weight: | 500-3500kgs Per Layer |
| Height: | 2m-15m |
Product Description

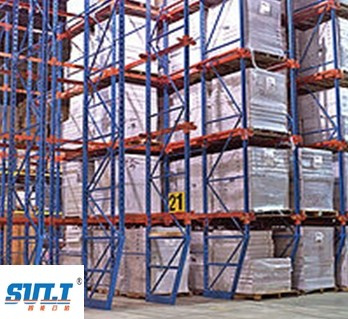

Drive in Racking/Warehouse Rack/Pallet Racking SystemSpecifications:
1 high stability and density rack2 first-in-last-out principle
3 maximum 1500kg per pallet
4 work with pallet and forklift
Features:
1, Suitable for small variety but large quantity stored products, especially for standard goods;
2, Very high utility ratio of the warehouse;
3, Each aisle consists of several level of pallet support rail. Pallets are placed on pallet support rail one after another;
4, Forklifts operation alongside the aisle;
5. Top and back bracing are used to fix the whole racking, making the whole racking stable and safe;
6, First level pallets can be placed on the floor;
7, Surface treatment: powder painting;
Load Capacity and Dimension:
1. Loading capacity: 500-4,000kgs UDL/beam level.
2. Height: 1000-10000mm
3.Depth: 400-1500mm
4.Length: 1200-3300mm
Note: Also can design and produce according to your special requirements
Main Parts:

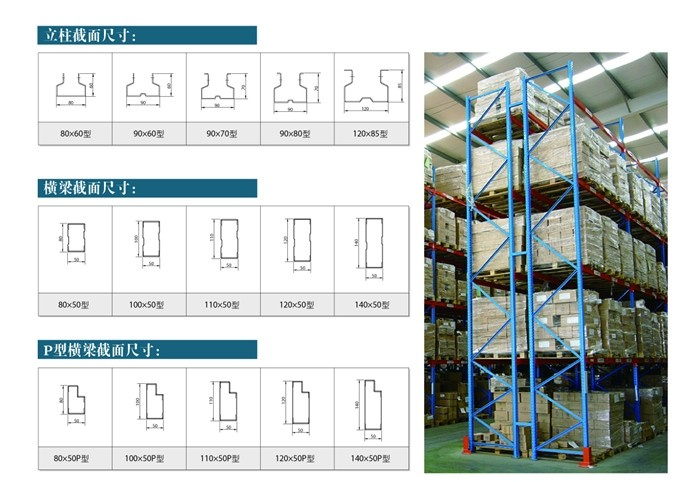

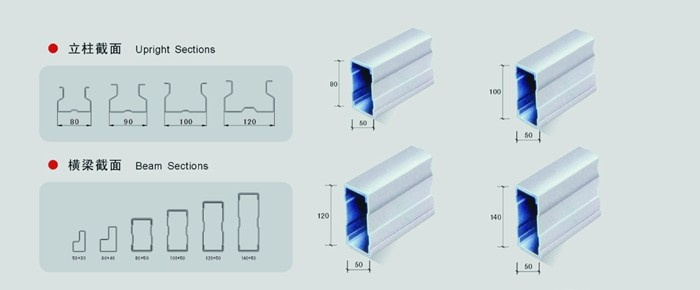

1. Upright section: 80*65/67*2.0~2.5mm, 90*67*2.0~2.5mm, 100*67*2.0~2.5mm, 120*95*2.5~3.0mm, etc.
2. Beams: 60*40*2.0mm square tube, 80*40*2.0mm square tube, 80*50*1.5mm cc, 100*50*2.0mm square tube.
3. Top bracing: 40*29/34/39*1.5mm

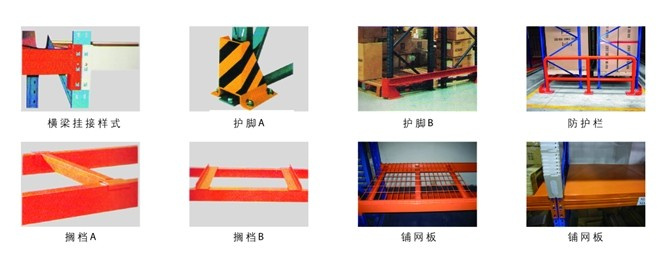

4. pallet support rail, upright protector, and guard rail, double-side bar, single-side bar and all necessary components.
Please kindly provide the below to us for quotation:
1, the CAD drawing of the warehouse (if available);
2, the sizes and weight of the pallet (length, width, height)
3, the size of the warehouse (length, width, clear height)
4, the layers of each shelf
5, the color that you want;
6, the loading weight of each layer
7, WE WILL PROVIDE Competitive price, GOOD QUALIT
Free warehouse layout design, quality guarantee!!
Advantages:
1.Individual access to all pallet to full height of warehouse.
2. Simple stock rotation achieved
3.Easy beam adjustment
4 . Compatible with many handling equipment style.
5.Economical shelving beams can be added for level picking
