Home LED Light Products Warehouse Electrical Mobile Rack for Pallet Storage with Floor Rail
Warehouse Electrical Mobile Rack for Pallet Storage with Floor Rail
| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | MR 90 |
|---|---|
| Drive Motor: | 0.4-0.75kw |
| Moving Speed: | 7-8m/Min |
| Wheels: | Dia. 250mm |

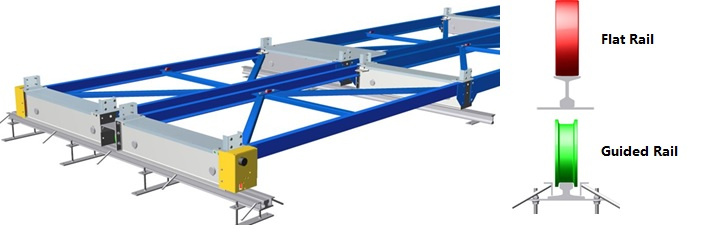

| Guided Rail: | with Rail, or Without Rail |
| Material: | Steel and Reinforced Concrete |
| Structure: | Rack |
| Mobility: | Mobile |
| Height: | 5-15m |
| Closed: | Semi-closed |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Weight: | 500kg-2000kg |
Product Description
- Product Introduction:

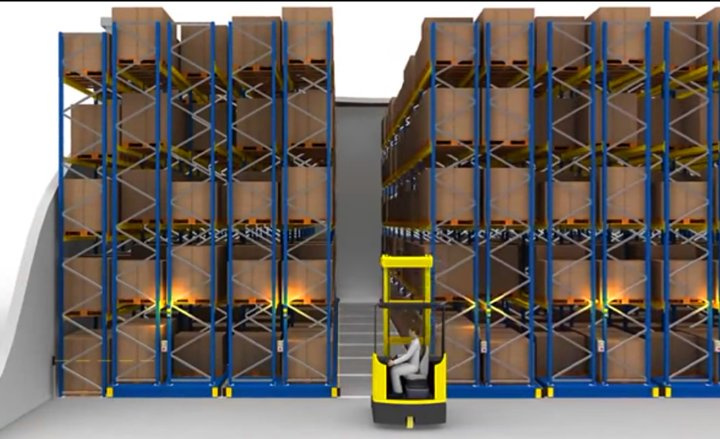

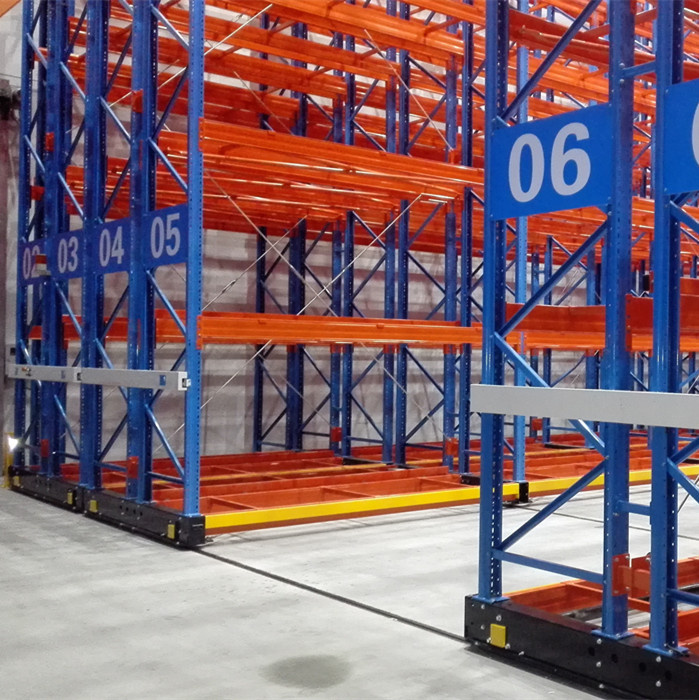

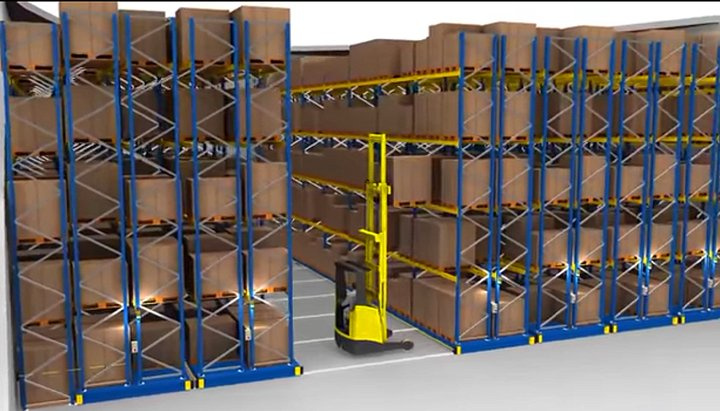

The mobile racking is composed of Conventional pallet racking installed on mobile bases, allowing opening and closing of the aisles. Where compact storage is need while keeping a high degree of accessibility to the stored products, mobile racking may be the best solution, especially where storage space is expensive, for example in cold stores. Mobile racking saves considerable space as the number of aisles is reduced to a minimum.

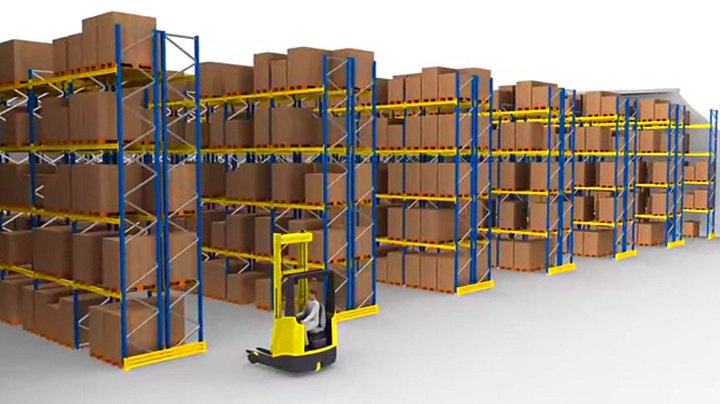

Conventional static racking requires fixed aisles between racks, causing quite some redundant space. A mobile racking system is very efficient and only needs one aisle, creating a much higher warehouse industrial storage capacity.
2. Clear benefits and advantages:
- Mobile racking can optimize available space, with high density storage and floor utilization;
- 80% compared to 40% in conventional pallet racking
- Reduced costs per m2
- Accessibility of each pallet, so high number of SKUs is allowed.
- Different pallet sizes can be stored more easily, compared to other high density storage solutions, where high demands are imposed onto the pallet dimensions and quality

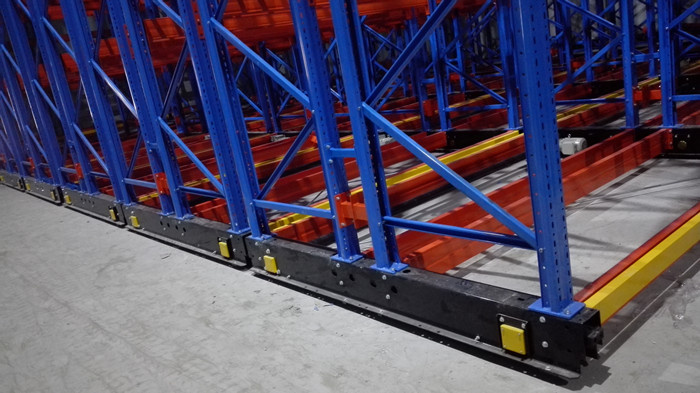

The mobile base is assembled on-site and is composed of a number of pre-assembled and single components.
- A number of wheel-trains;
- Beams;
- Horizontal bracings, with fixed length, not adjustable;
- Various small components
4. RFQ documents: Before you send us your requirement for quotation, please prepare the following information:
- Warehouse layout CAD drawings if available.
- Pallet size, entry side, width, depth, height of goods.
- Loading weight per pallet.
- Clear height of the warehouse
- Your forklift information, working aisles width and max. reaching height.
- Your intra logistic flow within the warehouse.
Shanghai Calin Logistic Equipment Co. Ltd. Is one of the professional suppliers for storage and logistic equipment with the specialty of racking design, manufacturing, sales and services. The company is located in Changning District, Shanghai. Our main business is to provide racking systems for the storage of palletized or small goods and longer items.
The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.
There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.
Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
