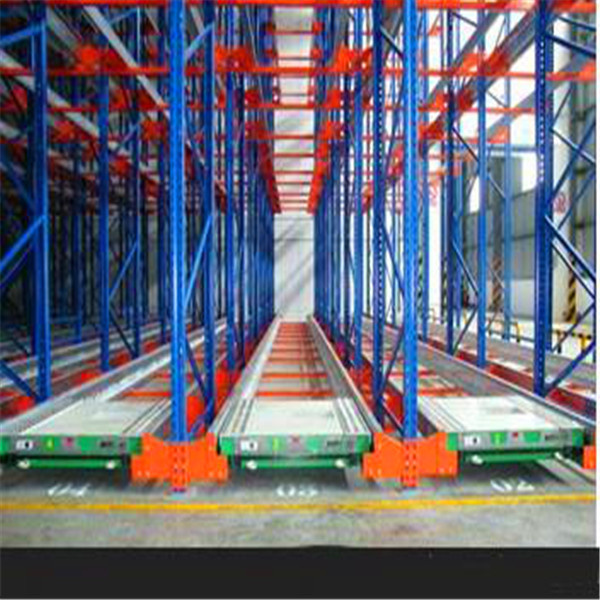

Warehouse Semi-Automated Storage Solution Shuttle Rack

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Export Markets:	Global
Depth:	1-4m
Certification:	CE,ISO9001,As4084,ISO9001:2008
Height Within:	10m
Width:	Customized
Color:	Selective
Dimension:	Different Sizes Are Available
Weight Capacity:	800-2400kg/Bay
Weld:	Weld for Automatic Welding
Adjustable:	75mm
Material:	Steel
Structure:	Rack
Mobility:	Fixed
Closed:	Open
Development:	Conventional
Serviceability:	Common Use
Height:	4-10m
Weight:	500~1500kg/Pallet

Product Description

High Tech Heavy Duty And Power Coating Radio-shuttle Rack

Product Feature

1. Shuttle storage rack is a special made racking system for shuttle which based on the structure
Of Drive-in racking.

2. Depth of this racking system could be 30-60m, which is much bigger than normal Drive-in racking.

3. Depending on the warehouse structure, the shuttle racking system can be also support for FILO
And FIFO.

4. This system doesn't need the forklift to pick up goods inside the lane, but a shuttle instead.

5. So it has a good safety performance.

6. It is suitable for storing goods of large quantity by small varieties, such as food, chemical,
Tobacco industry, it is also the best choice for cold operation storage.

Items No.	shuttle pallet racking
Brand	Jracking
Place of Origin	Nanjing, China
Material	Q235/Q345 Steel
Finish	Powder Coated/Hot Dip Galvanized/Black Raw
Color	Customized RAL Color
Size	Different Sizes Available
Weld	Weld for Automatic Welding
Pallet Rack Surface	Antirust
Certifications	*CE *ISO9001:2000 *FEM10.2.09 *AS4084-2012 *RMI2002
Usage	Warehouse Storage
Style	Pallet Rack/Drive-in Rack/VNA/Push-back Pallet rack
Load Capacity	Light-duty/Heavy-duty/Extra-heavy-duty
Characteristics	Flexible, Steady, Safe and Economical

Techinical Description

1. Pallets are loaded onto a shuttle at the front of the lane, which transports the pallet to the other end.
The in-built sensor on the shuttle detects the position of previous pallets and places the new load at
A predetermined distance from them, before return to the beginning.

2. The shuttle movements are sent via the radio remote controller, allowing the forklift truck and driver to
Be released for other tasks while the shuttle operates.

3. One shuttle can be shared by many lanes.

4. The shuttle is easily moved between lanes by a standard forklift. Shuttle racking system can be
Designed and customized according to the customers' different requirements.

Our Storage Rack Advantages

1. Color and size can be adjusted according to your requirements.
2. Upright and beam is formed by high-quality cold rolled steel, with an omega shaped section to make sure they are very strong.
3. Box beam or step beam used. Beam can be freely adjusted by pitch 50mm or 75mm.
4. Connection of the upright and beam is by wedging, equipped with safety pin to make sure of the safety.
5. Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire decks, steel shelf, etc.
6. Stable structure, large loading capacity, convenient sorting.
7. Compatible with most type of handling equipment and building structures.
8. First level pallets can be placed on the floor.
9. Easy to install and dismantle.

Our Advantages

1. High and stable quality.
2. Delivery timely.
3. Excellent rolling technology and patents
4. The whole set of perfect production process. (Cutting, roll forming, welding, galvanized, bending, punching machine, powder coated, assembly etc.)
