19'' Outdoor Server Cabinet with A/C
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | TN-901 |
|---|---|
| Packing: | Assembled or Dis-Assembled |
| Logo: | Silk Print, Aluminum Sticker, Rubber Sticker |
| Material: | SPCC Cold Rolled Steel or Eg Steel |
| Color: | Ral9004, Ral7044, Ral7039 etc |
| Static Loading: | Over 800kgs |
| Type: | Server Cabinet |
| Usage: | Network Integration System |
| Installation: | Vertical |
| Certification: | GS |
| Condition: | New |
| Fan Number: | 2 or 3 or 4 |
| Capacity: | 6u~47u |
Product Description

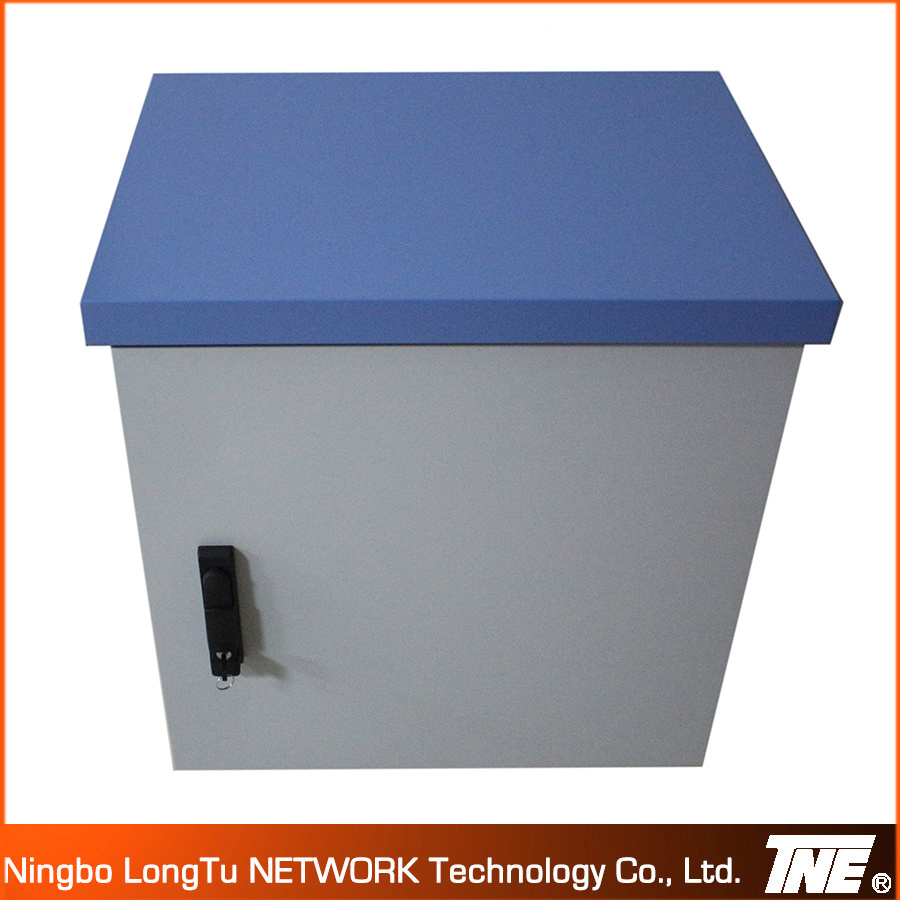

19'' Outdoor Server Cabinet with A/C
Description
Standard and Material:
Comply with ANSI/EIA,RS-310-D;IEC297 2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:
Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:
SPCC cold rolled steel or Zink-plated panel or stainless steel
Thickness:
Mounting profile:2.0mm,others: 1.50mm
IP degree:
IP-55
Color:Body color:
RAL5012(Top cover and base);RAL7035(The others)

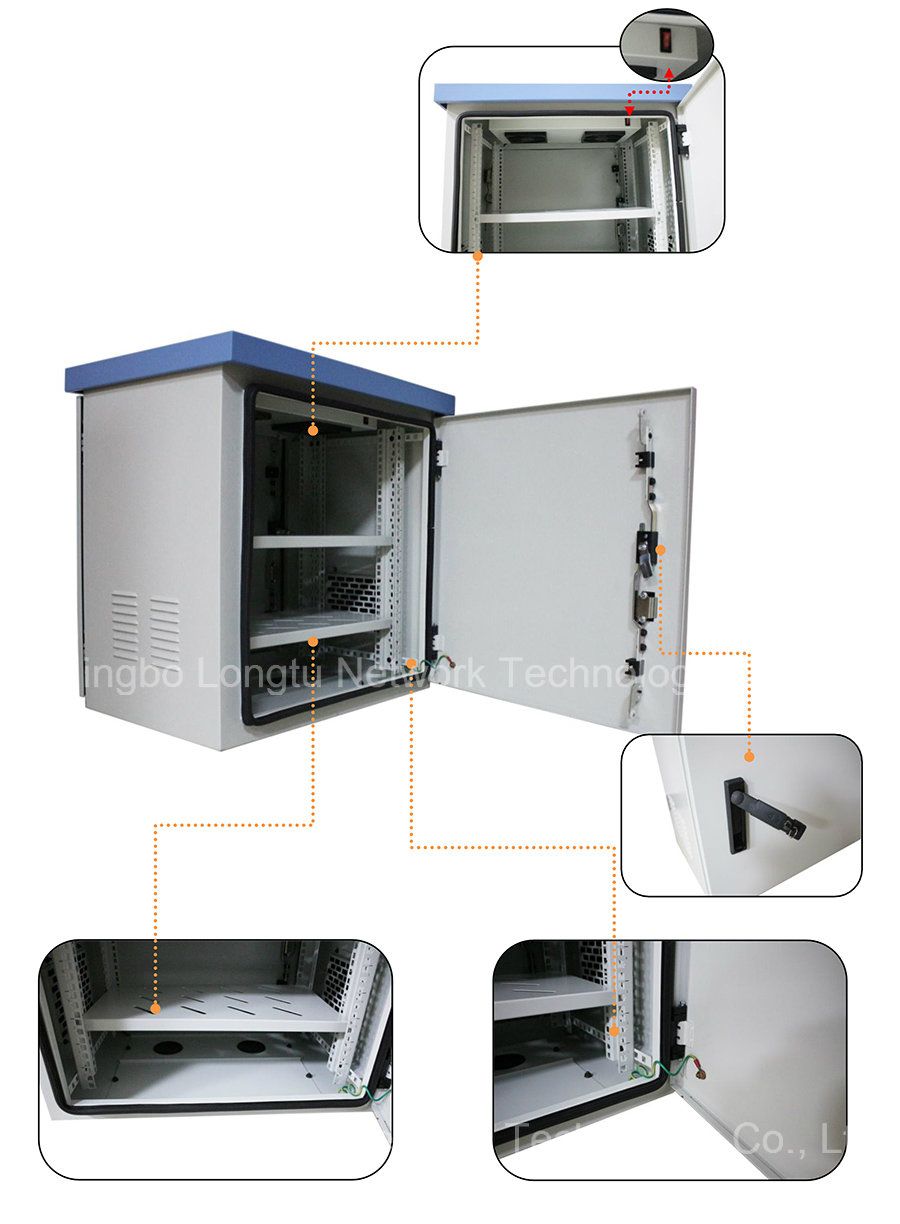

- 19 inch street cabinet,outdoor application
- Reliable 19" international structure, Double wall type
- Outdoor floor standing or fixed on poles
- Front single solid metal door with handle lock
- Enhance door hinges with 130 degrees operation angle
- Rear single solid metal panel
- Top with 2/8 fans for airflow&cooling, fan size: 120*120*38 mm
- Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable
- Varies specification upon customers' special requirements
- with 1 pc of lighting system,smoke alarm,temperature sensor
Width: 600,800 mm
Depth: 600,800mm
Height: 6U,9U,12U, 15U, 18U,22U, 27U, 32U, 37U, 42U, 47U - Customized size is available

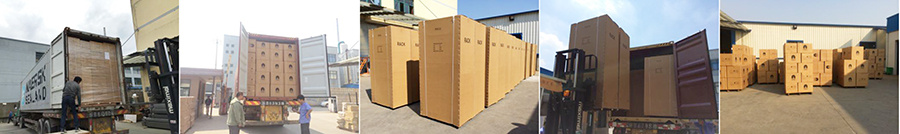

- Flexible packing methods allows for convenient stocking and end user delivery.
Standard and Material:
Comply with ANSI/EIA,RS-310-D;IEC297 2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:
Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:
SPCC cold rolled steel or Zink-plated panel or stainless steel
Thickness:
Mounting profile:2.0mm,others: 1.50mm
IP degree:
IP-55
Color:Body color:
RAL5012(Top cover and base);RAL7035(The others)
NO. | Item | 600 wide | 800wide | Materials | Treatment | Note |
1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coating | |
2 | Front Door | 1 | 1 | solid metal | \ | double wall type |
3 | Side Door | 0 | 0 | \ | \ | |
4 | Back Door | 1 | 1 | solid metal | \ | double wall type |
5 | Lock | 2 | 2 | \ | \ | Handle Lock |
6 | Top cover | 1 | 1 | 1.5mm SPCC steel | Powder coating | |
7 | Rear door panel | 1 | 1 | 1.5mm SPCC steel | Powder coating | |
8 | Fan unit | 1 | 1 | 1.2mm SPCC steel | Powder coating | |
9 | Ac fan | 2-8 | 2-8 | \ | \ | D>800,6-8pcs |
10 | Bottom panel | 1 | 1 | SPCC T=2.0 | Powder coating | |
11 | Earthing bolts | 1 | 1 | SPCC T=1.5 | \ | 25 cm |
12 | Castors tray | \ | \ | SPCC T=2.5 | Powder coating | |
13 | Castors | \ | \ | \ | \ | |
14 | Ajustable feet | \ | \ | \ | \ | |
15 | Mounting angle | 2 | 2 | SPCC T=1.5 | Powder coating | |
16 | 19inch rails | 4 | 4 | SPCC T=2.0 | Powder coating | |
17 | Cable management | \ | 2 | SPCC T=1.5 | Powder coating | Only for 800 W |
Optional Accessory
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
TNE owned Painting Line with Environment evaluation certificate
- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
And so on...
