Prod Model: |
TN-301-52 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Fiber Optic Connectors |
Wiring Devices: |
Integrated Wiring |
Condition: |
New |
Product Description

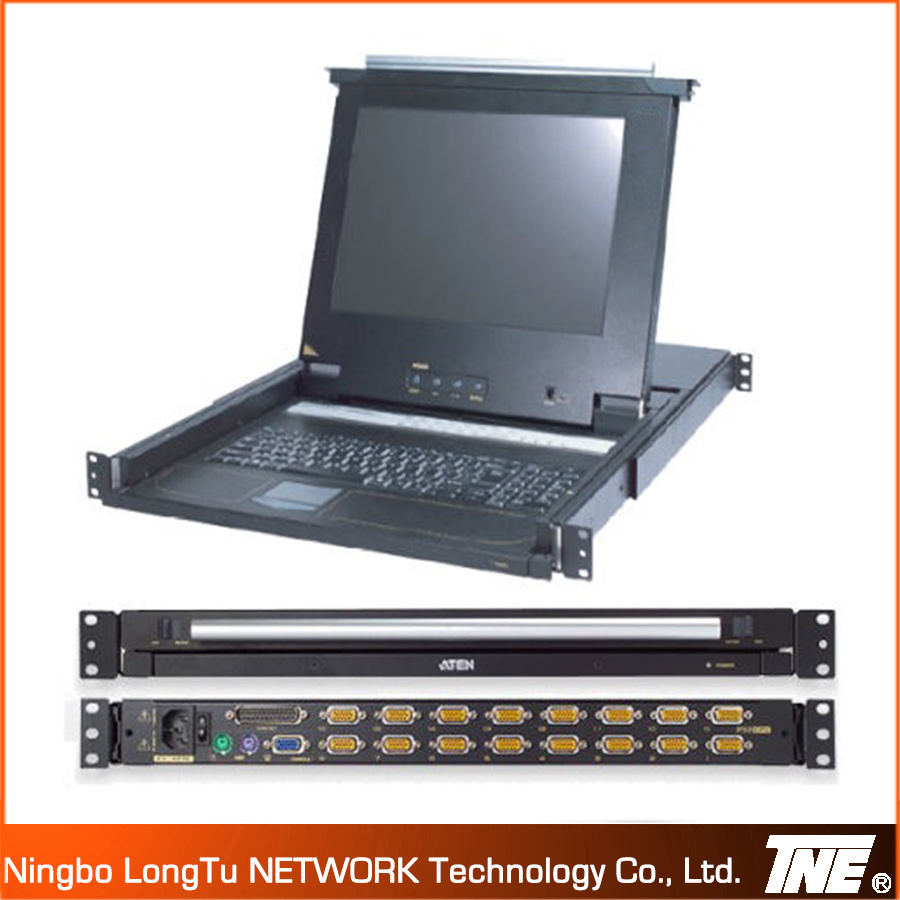

VGA KVM controlplatform AS-9100ULG is one with integrate a single ports KVM switch, monitor,keyboard & mouse into 1U height. It controls 1pcs computer with oneplatform (keyboard, mouse and monitor).
FEATURES
Control Platform
Control platform with LCD, keyboard, mouse and singleports VGA KVM switch.
1U height, suitable for 19'' standard cabinetinstallation and metal structure.
19" LED screen with high brightness, high clear andhigh resolution.
Control platform can be totally pulled out from thecabinet and the LCD screen can be turned on to 120 degrees.
Ultra thin keyboard with keypad.
Mouse touch board with two function button.
Front panel with lock to prevent damage by accident.
Built-in power.
Automatic power on/off. When pulling control platformout from cabinet, the power turns off automatically. When pushing it into thecabinet, the power turns on automatically.
An easy to use OSD menu.
Switch
One control platform can control 1pcs computer bydirect connection.
Be compatible with USB/PS.2 standard interface.
Support VGA, SVGA, XGA video input.
Accord with DDC, DDC2, DDC2B standard and VESAstandard.
Support maximum resolution of 1920 * 1080
Support multiple operating systems:WIN95/98/98SE/ME/200/XP/7/ NT, UNIX, LINUX.
Type | AS-9100ULG |
Computer Connection | 1 |
CPU Port Selection | Front panel buttons/OSD menu |
Console Connector | Keyboard | Disassembled standard 99-key keyboard |
Mouse | standard PS/2 touch pad; rear side with USB connector |
Video | 19 inch SXGA color TFT-LCD |
Cable Connectors | Keyboard | 1 x PS/2 female (purple),1 x USB female |
Mouse | 1 x PS/2 female (green) ,1 x USB female |
Video | 1 x HDB-15 male (blue) |
LED's | Online | 1 red LED's |
Selected | 1 green LED's |
LCD monitor | monitor | 19.0"SXGA Color TFT-LCD |
visible square | 304.128(H)*228.096(V)mm |
Resolution(max) | 1920*1080 60HZ |
Support Color | 16.2 M / 262K colors |
White Luminance | 250 (center, Typ)@ 60 mA |
contrast | 700:1 (Typ) |
Back light | LED |
Pixel Pitch | 0.297(per one triad)x0.297 |
LCD MTBF | 50,000hours |
Input power | DC 12 V |
Keyboards | keyboard | 99keys |
Compatible IBM/AT | Win95/98/98SE/ME/200/Win7 XP Vista WinNT Uni Linux |
Port | Standard PS/2&USB |
Using life | >1,000,000 times |
Mouse | X/Y resolution | 1000dots/inch 40x40/mm) |
hardware connector | Standard PS/2&USB |
Os support | Win95/98/98SE/ME/200/Win7 XP Vista WinNT Uni Linux |
Using life | >1,000,000 times |
Power | Power (AC) | ~100V-240V |
Using life | MTBF>60,000hours 25 °C |
Housing | Metal ( black ) |
Gross weight | 19.13 KGS |
Dimensions | 630*450*42mm |
Rack installation depth | 600mm ~ 1200mm(adjustable) |
Operating/storage Temp | 0 ~ 50 /-20 ~ 60ºC |
Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.
> Year 2003 TNE Founded
> Year 2006 TNE gains Export and Import Right
> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.
> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.
TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.
TNE mainly Products as below:
Network cabinet
Server Rack
Wall Mount Cabinet
Open Frames
PDU...
TNE Machinery:
CNC Punching Machine: 4 sets
Laser Cutting Machine: 2 sets
Bending Machine: 11 sets
And other small Machines...
TNE owned Painting Line with Environment evaluation certificate
Welcome to contact with us to start the business in Year 2016! !
