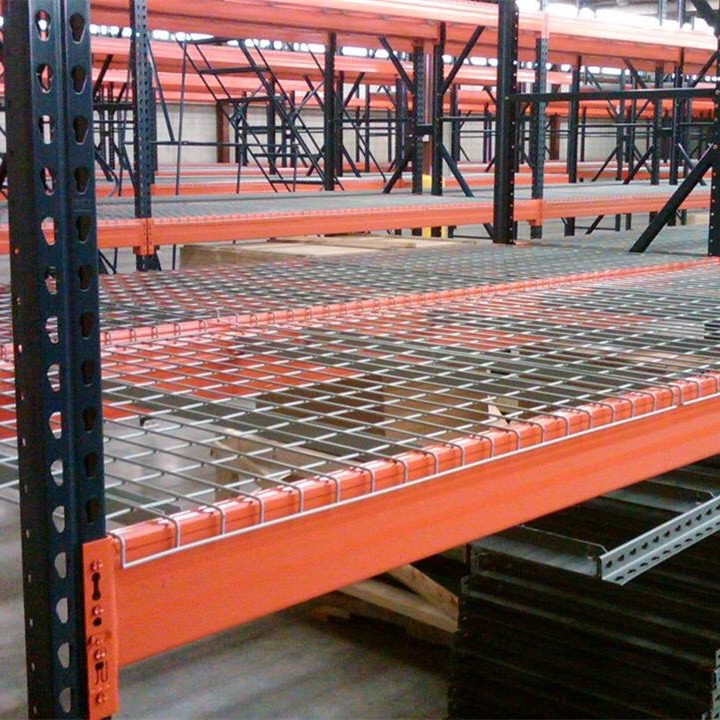

American Style Teardrop Steel Pallet Racking

Prod Model:	PN90
Upright Hole Type:	Tear Drop
Certificate:	ISO9001, Ce
Color:	as Requirment
Norm:	QS American Standard
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Height:	5-15m
Closed:	Closed
Development:	Conventional
Serviceability:	Common Use
Weight:	500kg-2000kg

Product Description

 1. Product Description:
Teardrop Pallet Storage Racking System,Product Description:
1) Appropriate for picking heavy goods by pallet.
2) High strength and durability.
3) High precision rolling components.
4) Easy for complete installation.
5) Araldite static powder coating.
6) Abundant accessories..
7) Every layer of the board can be adjusted freely;
8) Color and size can be adjusted according to your requirements.
9) The heavy-duty standing posts is good looking and anti-rust with fine powder-coating.
10) Different thickness, size, layers, and colors are available for you to choose

Beam Feature
4 holes 11"*2"*5" P shape beam,slotted connection&bolted connection. Beams can be adjusted every 2".
A, Hot rolled steel moulding, bearing evenly.
B, Various specification and load capacity to meet different storage requirements.
C, Beam hitch steel's teeth are designed to different direction; this not only makes the teeth for increased rigidity.
D, Connection between beams and pillars are performed by safety bolts and clips.
E, Optional accessory is nameplate holder.

Uprights feature
Both bolted and welded types are available.Beam and column locking system provides exceptional protection against damage, tampering, and accidental disengagement. Durable powder coating and hot-dip galvanized surface treatment, ensure long term using even under the most demanding conditions.
In clined beam has two type longer,one is used loosely for the upper of the rack, the shorter densely for the lower to improve the bearance and solidity.
A, Polyhedron with thirteen faces.
B, Pitch is 50 mm, beam is adjustable.
C, Triangle hole easily tightens to hitch steel and strengthens the load capacity of posts.

Bracings

The horizontal and diagonal bar on standing colunm is square tube,no C-shaped ,square tube is 30*50 ,30*30, and so on.
Support for metal box, Used for placing mesh box and metal container etc. with stacking feet, safe and reliable.

Wood shelf and support bar
The plywood, 20mm thick, is in the salience of knighthead. Each pallet has a pair of knighthead.

Metal shelf
The steel material: cold rolling steel ,SPCC, DC01, ST12,Q195, the steel thickness ranges from 0.6mm to 1.2mm,

Safety locker
Locker, bolted,pin  for making racks stability,more strong.

Protector/ barrier
Located at the sides or corners of shelving to be away from impact by forklift.

Pallet stopper
For pallet stop, speciully for fork lift in top oppration.

Row-spacer
Row-spcaer,to be two lines rack connected.


2. Product Specificaitons:


1. Dimension & loading capacity	Type: teardrop pallet rack
	Height: 8', 10', 12', 16', 16', 18', 24'
	Depth: 36", 42", 48", 54", 60", 66", 72"
	Length: 96", 108", 120", 144"
	Special size also available
	Loaing capacity per beam layer: 2000-8000lbs
	Loading capacity per set: 10000-28000lbs
2. Main parts specs	Upright: 3"*3"
	Beam: 3", 3.5", 4", 4.5", 5", 5.5", 6", 6.25", 6.5"
3. Material	Q235B, Q345B
4. Certification	CE, ISO9001
	All manufacturing process is strictly comply with certification requirement
5. Surface treatment	Finish: powder coating
	Feature: anti-rust, corrosion protection
	Color: as requirement
6. Advantages	1) Low capital cost
	2) Bottom layer can be stored on the floor to save cost
	3) Easy install and adjust
	4) Compatible with most types of handling equipment
	5) Direct access to all pallets,, pallets can be located and moved freely
	6) Beam height can be adjusted freely per 75mm according to the storage needs
7. Free sample	Free cut sample is available for quality check
	Cut sample is ready within 5 days.
8. MOQ	No MOQ requirement
9. Payment term	T/T, L/C
10. Loading port	Shanghai port
11. Delivery time	15-25 days based on the quantity
12. OEM/ODM	Available
13. Package	1) Rack components are bundled with steel belt and covered with plastic film
	2) Accessories are packed with carton box
	3) Every package will be marked with label of product name, size and quantity
	4) Air bubble bags are used when loading container to prevent possible goods
	move during long distance transportation.
14. Application	Manufacturing facility, retail center, storage and distribution facility
