Chinese Supplier Adjustable Warehouse Middle Storage Rack
| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | XBH-G02 |
|---|---|
| Weight Capacity: | 300-500kg Per Layer |
| Usage: | Warehouse, Industrial, Tool Rack,Supermarket Rack |
| Layers: | 3-4 |
| Surface Treatment: | Powder Coating |
| Size: | Customized |
| Load Capacity: | 300-500kg Per Layer |
| Certification: | ISO9001:2000 Ce |
| MOQ: | 10PCS |
| Warranty: | 5 Years |
| Colour: | Blue Orange |
| Material: | Metal |
| Type: | L Stand |
| Style: | Magnetic Suspension |
Product Description

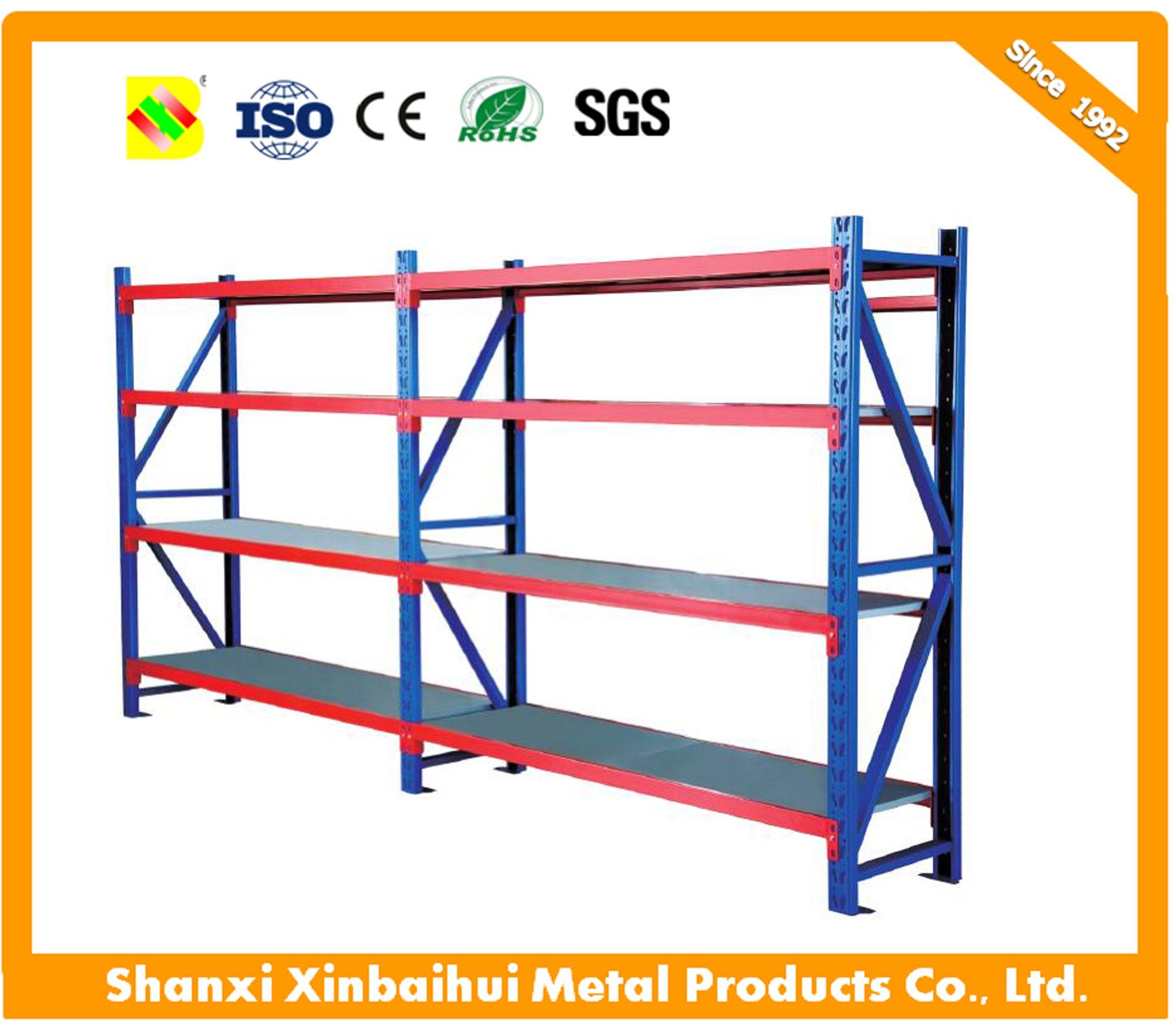

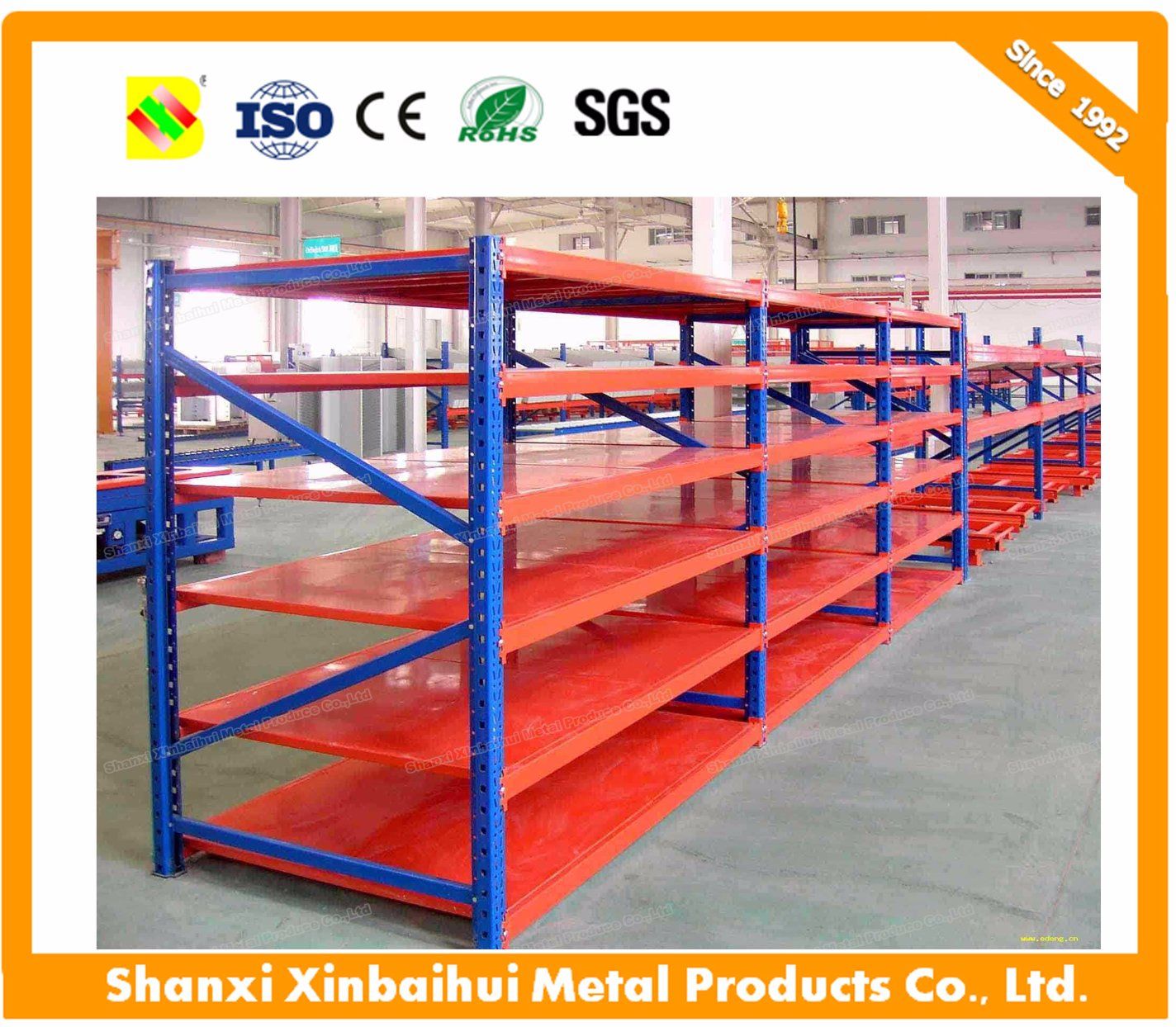

Medium Warehouse Rack ( XBH-G02)
Shelving rack has a wonderful looks and scientific structures. The upright is made of the cold rolled steel sheet, which is bent and rolled. And it has the double line of holes, and there is a 50mm distance between two holes. The holes are designed to hang the beams. There are row bracing and diagonal racing between the upright frames. And the beam is "P" shape beam, and the height is matched with the shelf panels. The shelf panels are made of the cold roll steel according to the requests. All the accessories of the rack are processed by polishing, acid cleaning, phosphating, automatic static sprayed, baking and so on. After all these processing, it is installed to a whole set of the rack. It is convenient to disassemble and assemble and it is widely used in the supermarket, warehouse and other public fields.
For the upright, we have the standard size of: 60*55*1.2mm, 60*55*1.5mm and 80*60*1.8mm and 80*60*2.0mm. Special requests of the upright style and size can be designed according to the customer's requests.
1. High grade Q235B Steel
2. Loading Capacity: 200-500kg/ per layer
Installation method as following picture shows
Product Details:
| 1. Item | medium duty rack |
| 2. Regular Size/Unit | L1500/1600/1700/1800/2000/2200mm*D400~800mm*H1500~3500mm |
| 3. Panel | galvanized, painting,wire,wood |
| 4. Standard Color | blue, orange, green, yellow, grey |
| 5. MOQ | 10 units |
| 6. Standard Packings | metal strip, film, paper board and master carton |
| 7. Certification | ISO9001:2000 |
| 8. Customized size accepted, Special color available | |
