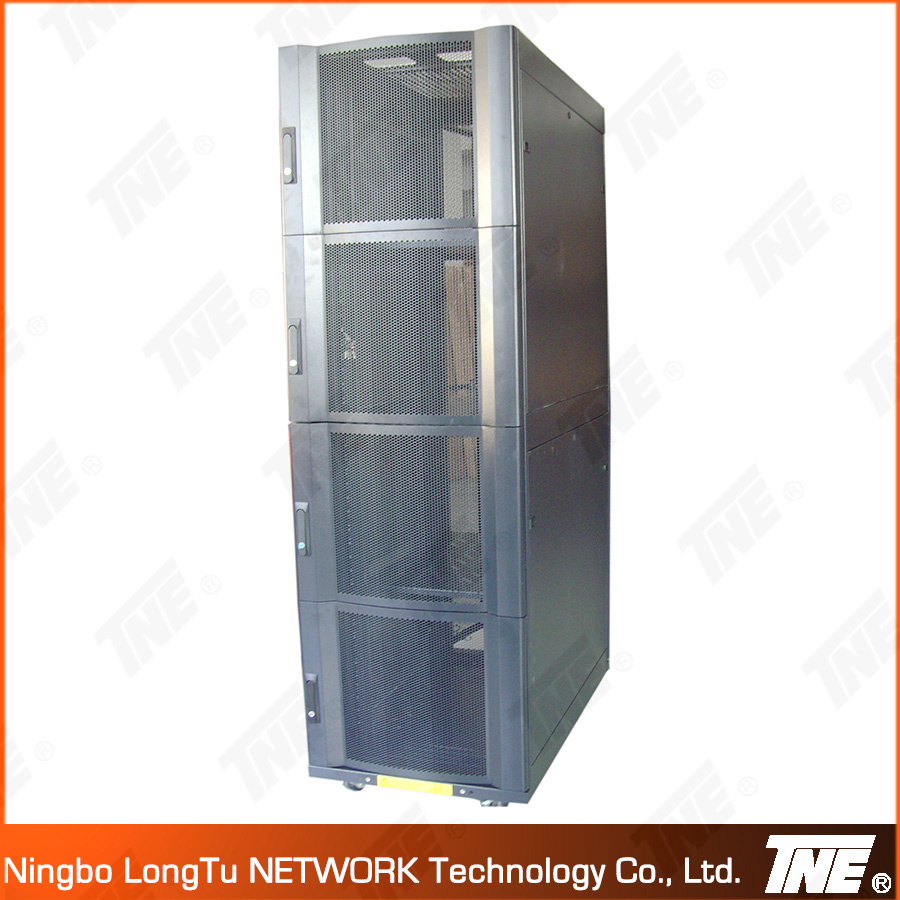

Compartment Server Cabinet for Individual Customers with Unique Locks for Each Compartment

Prod Model:	TN-804
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Ral7035, Ral9004, etc
Logo:	Silk Print, Aluminum Sticker, Rubber Sticker
Packing Style:	Assembled or Dis-Assembled
Shipping:	Sea, Air, Train, Truck
Material:	SPCC Cold Rolled Steel
Certificate:	CE. RoHS. SGS
Type:	Server Cabinet
Usage:	Network Integration System
Installation:	Vertical
Fan Number:	Four
Certification:	RoHS
Condition:	New
Capacity:	32u to 52u

Product Description

Compartment Racks for Individual Customers with unique Locks for each Compartment


--------------------Application-----------------------------

The Colocation Series provides an excellent solution for facilities and data centers which offer colocation hosting services.

Available in 2, 3 and 4 compartment configurations, our Colo rack provides complete integrity between compartments, plus optimized cable and air management


--------------------Features---------------------------

Lockable doors equipped with standard swing handle or 3-digit combination lock with key overide.
Heavy duty 1000 kgs load rated
High density perforated doors provide expanded total open area for proper air flow.
Fan tray option can be mounted to doors.
Field reversible doors with 135 degree opening radius.
Sealed cable channels accessible only to individual user.
Depth adjustable 19" mounting rails with U number printed on rails.
Optional security panel can replace side panel when two or more cabinets are bayed together.

---------------------Specifications----------------------

2 Compartment model : 21 U
3 Compartment model : 14 U
4 Compartment model :10 U

> Complies to : EIA310-E and IEC-60297-1,2

> Material : High grade cold rolled steel

> Finish : 5-stage iron phosphate pretreatment followed by tough scratch resistant powder coat paint.

> Color : Black

> For more details, please Contact us.

> Disclaimer : All product information and catalog sheets are updated from time to time and actual product may vary from what is shown.

-------------------Optional Accessory----------------

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...


-------------------Size Form--------------

Model No.	Capacity(U)	Width(mm)	Depth(mm)	Height(mm)
TN-804	18U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	988mm
TN-804	22U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	1166mm
TN-804	27U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	1388mm
TN-804	32U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	1610mm
TN-804	37U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	1833mm
TN-804	42U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	2055mm
TN-804	45U	600mm/750mm/800mm	600mm/800mm/1000mm/1200mm	2188mm
TN-804	47U	600mm/750mm/800mm	600mm/800mm/1000mm /1200mm	2277mm
