Compartment Server Cabinet

Compartment Server Cabinet
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: TN-804
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Ral7035, Ral9004, etc
Logo: Silk Print, Aluminum Sticker, Rubber Sticker
Packing Style: Assembled or Dis-Assembled
Shipping: Sea, Air, Train, Truck
Material: SPCC Cold Rolled Steel
Certificate: CE. RoHS. SGS
Type: Server Cabinet
Installation: Heavy Duty

Product Description

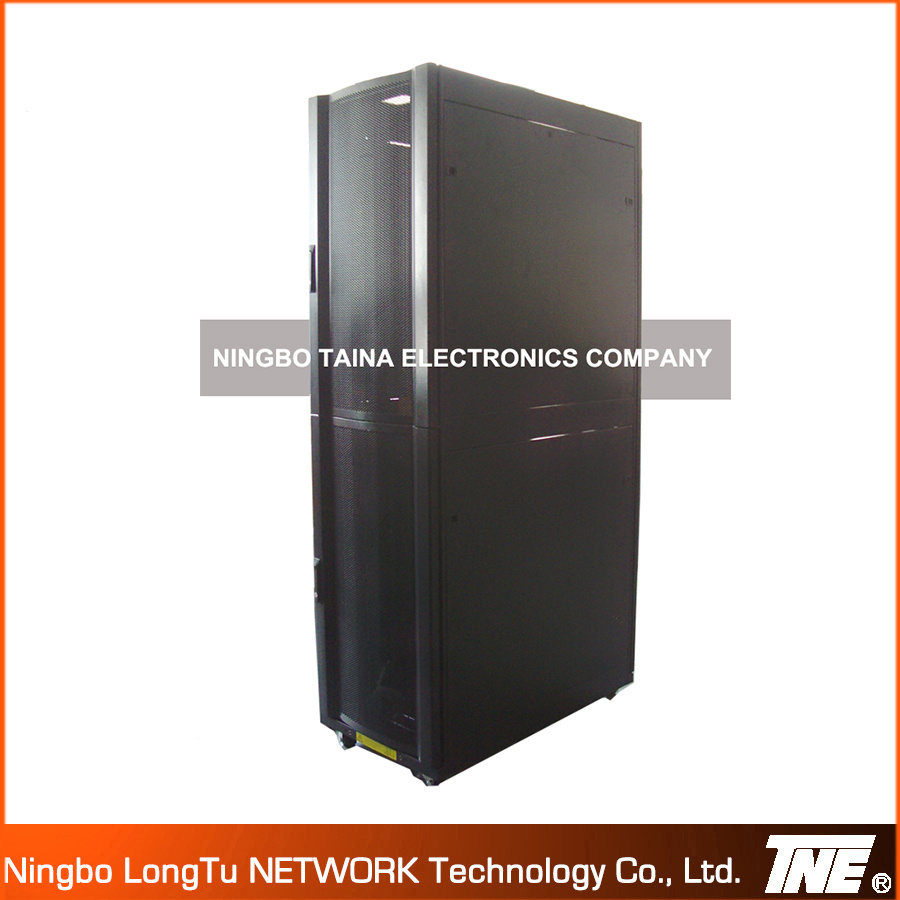

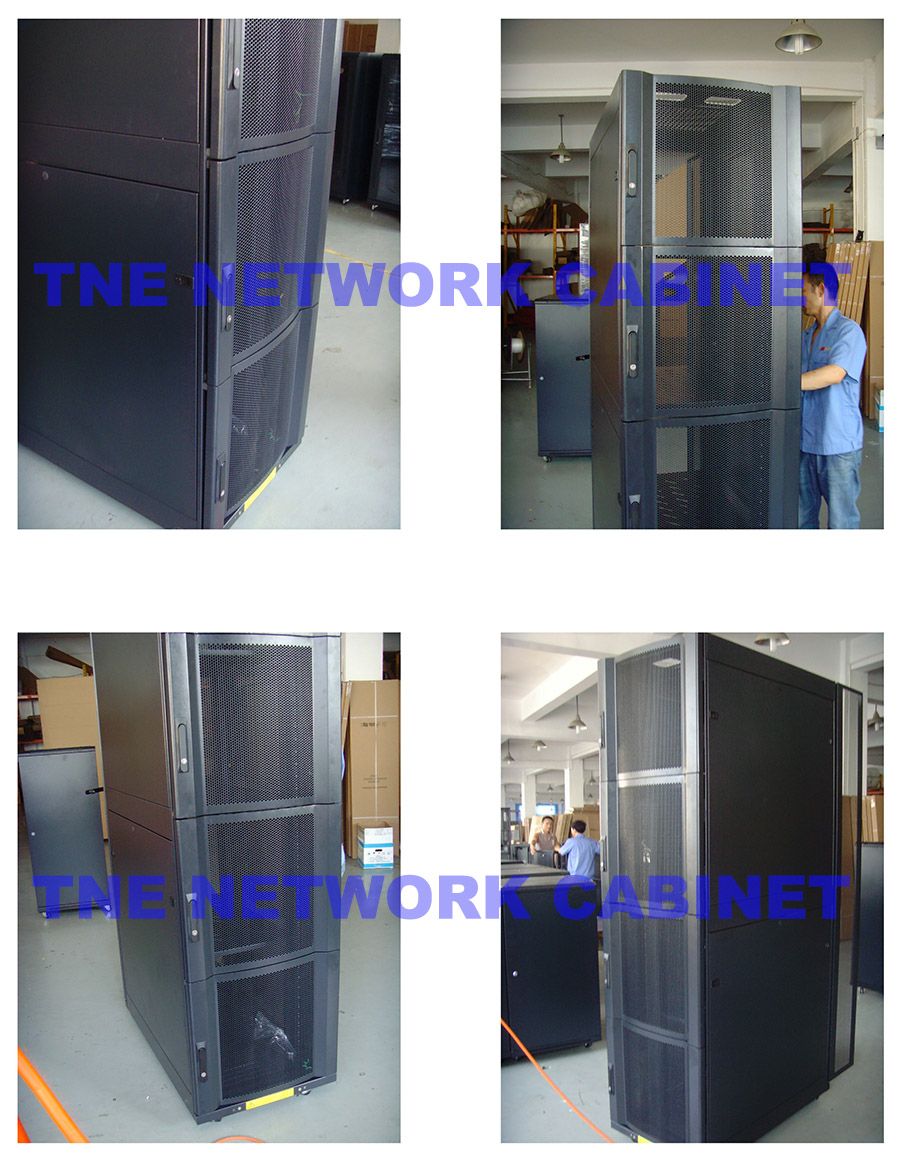

Model No. Tn-804 Compartment Racks for Individual Customers with unique Locks for each Compartment


Application:

The Colocation Series provides an excellent solution for facilities and data centers which offer colocation hosting services.



Available in 2, 3 and 4 compartment configurations, our Colo rack provides complete integrity between compartments, plus optimized cable and air management




Features:
  • Lockable doors equipped with standard swing handle or 3-digit combination lock with key overide.
  • Heavy duty 1000 kgs load rated
  • High density perforated doors provide expanded total open area for proper air flow.
  • Fan tray option can be mounted to doors.
  • Field reversible doors with 135 degree opening radius.
  • Sealed cable channels accessible only to individual user.
  • Depth adjustable 19" mounting rails with U number printed on rails.
  • Optional security panel can replace side panel when two or more cabinets are bayed together.

Specifications:

2 Compartment model : 21 U
3 Compartment model : 14 U
4 Compartment model :10 U

Complies to : EIA310-E and IEC-60297-1,2

Material : High grade cold rolled steel

Finish : 5-stage iron phosphate pretreatment followed by tough scratch resistant powder coat paint.

Color : Black

For more details, please Contact us.

Disclaimer : All product information and catalog sheets are updated from time to time and actual product may vary from what is shown.

Optional Accessory:

Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
1U, 2U support board
Vertical Cable manager
19'' Power distribution unit(PDU)
19'' Blanking plate 1U, 2U, 4U
Heavy duty castor, Heavy duty castor with braker
Optional lock for side panels
Earth kit
And so on...

Catalog:




Model No.Capacity(U)Width(mm)Depth(mm)Height(mm)

TN-804

18U600mm/750mm/800mm600mm/800mm/1000mm/1200mm988mm

TN-804

22U600mm/750mm/800mm600mm/800mm/1000mm/1200mm1166mm

TN-804

27U600mm/750mm/800mm600mm/800mm/1000mm/1200mm1388mm

TN-804

32U600mm/750mm/800mm600mm/800mm/1000mm/1200mm1610mm

TN-804

37U600mm/750mm/800mm600mm/800mm/1000mm/1200mm1833mm

TN-804

42U 600mm/750mm/800mm600mm/800mm/1000mm/1200mm2055mm

TN-804

45U600mm/750mm/800mm600mm/800mm/1000mm/1200mm2188mm

TN-804

47U 600mm/750mm/800mm 600mm/800mm/1000mm /1200mm
2277mm


Ningbo Longtu Network Technology Co., Ltd. ( Formly named Ningbo Taina Electronics Compay) own a Brand of "TNE" Mainly offer 19'' network cabinets, 19'' server racks, wall mount cabinet and customized Products, built for your specific requirement.

> Year 2003 TNE Founded

> Year 2006 TNE gains Export and Import Right

> Year 2010 TNE Moved the factory to Guanhaiwei East Industrial Zone, Ocupy 6066 Square Meter.

> Year 2014 TNE Changed the name from NINGBO TAINA ELECTRONICS COMPANY to NINGBO LONGTU NETWORK TECHNOLOGY Co., Ltd. Pure Producing Network Cabinet.

TNE have some stable partner From USA, UK, France, Austrial, Egypt, and So on.

TNE mainly Products as below:

Network cabinet

Server Rack

Wall Mount Cabinet

Open Frames

PDU...

TNE Machinery:

CNC Punching Machine: 4 sets

Laser Cutting Machine: 2 sets

Bending Machine: 11 sets

And other small Machines...

TNE owned Painting Line with Environment evaluation certificate

Welcome to contact with us to start the business in Year 2016! !
