DC12V/24V Wall Mount Door Holder Door Stopper
| Price: | US $ 16-17/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 5/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | NP-G140 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Version: | Fail-Unlocked |
| Holding Force: | 50kg(100lbs) |
| Standard Functions: | Manual Door Release Button |
| Lock Status Sensors: | No |
| Rated Operating Voltage: | DC 12V or 24V (Adjustable) |
| Current Consumption: | 12V/180mA 24V/85mA |
| Surface Finish: | Paint and Zinc Plated |
| Magnets Dimensions(L X W X D): | 70L*43W*86h(mm) |
| Weight In Kg: | 0.9kg |
| Ce-Mark For Building: | Yes |
| Brand: | Nordson |
Product Description
Standard Extended wall mount electromagnetic door holder door stopper door catch with ultra low power consumptionSpecification:
| Version | Fail-unlocked |
| Holding Force | 50kg(100Lbs) |
| Standard Functions | Manual door release button |
| Lock Status Sensors | NO |
| Rated Operating Voltage | DC 12V or 24V (Adjustable) |
| Current consumption | 12V/180mA 24V/85mA |
| Surface finish | Paint and Zinc plated |
| Ambient temperature in °C | -10°C - +55°C |
| Suitable for | All Kind of Single & Double Smokeproof Doors |

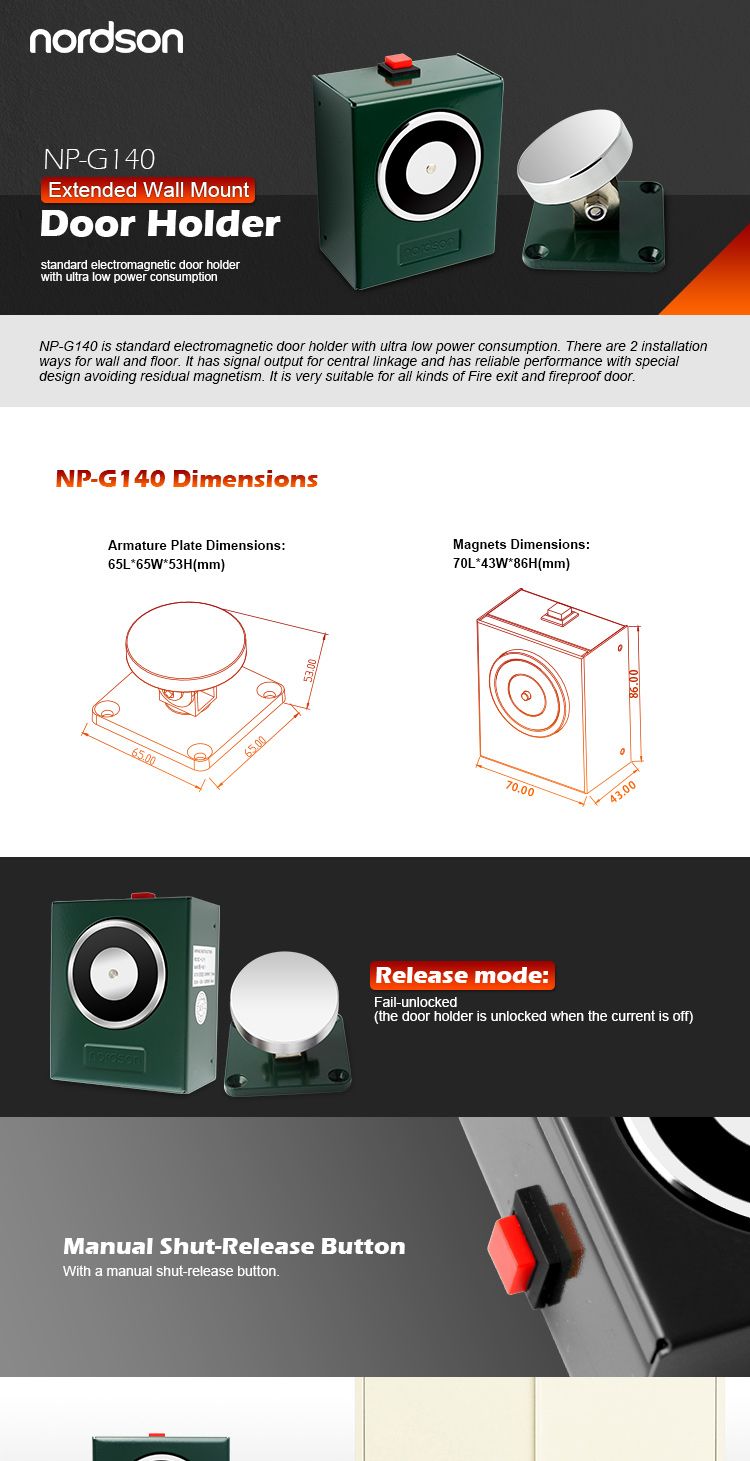

| Magnets Dimensions(L x W x D) | 70L*43W*86H(mm) |
| Armature Plate Dimensions(L x W x D) | 65L*65W*53H(mm) |
| Weight in kg | 0.9kg |
| CE-mark for building | YES |
| Rohs-mark for building | YES |

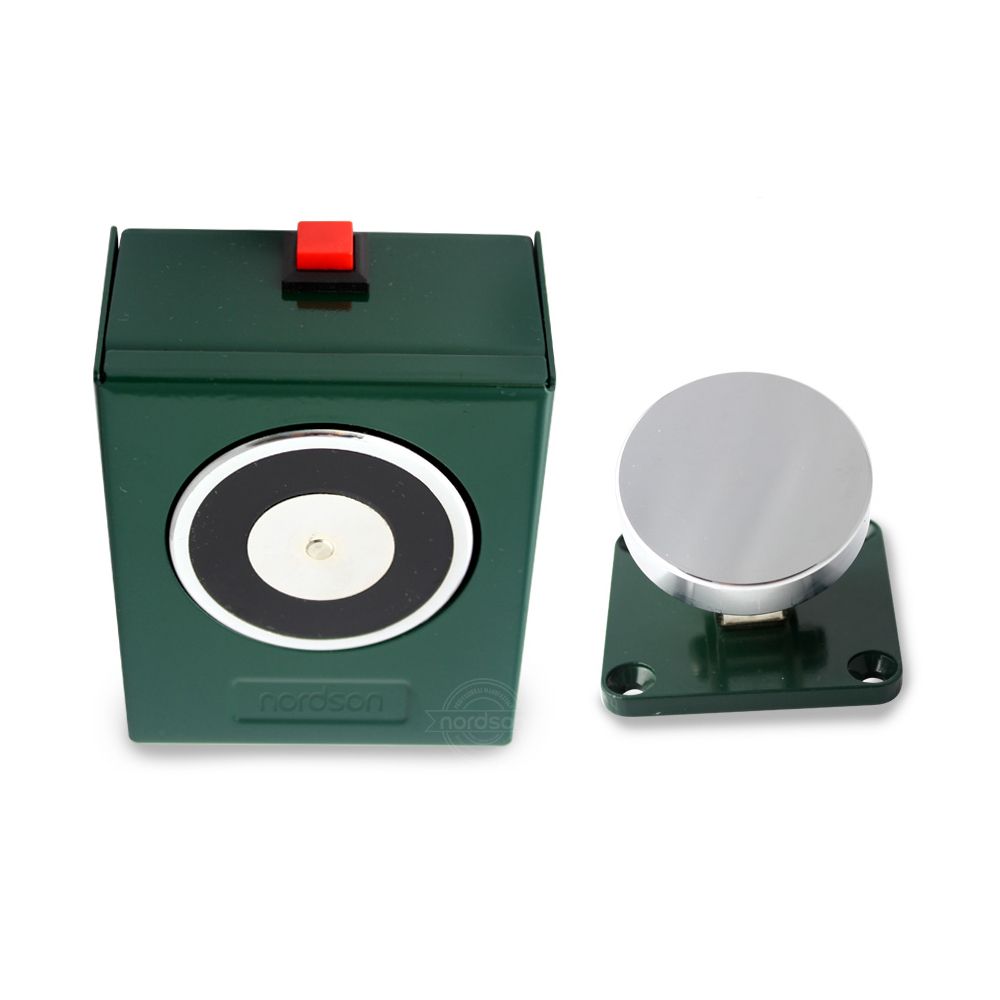

NP-G140 is standard electromagnetic door holder with ultra low power consumption. There are 2 installation ways for wall and floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.

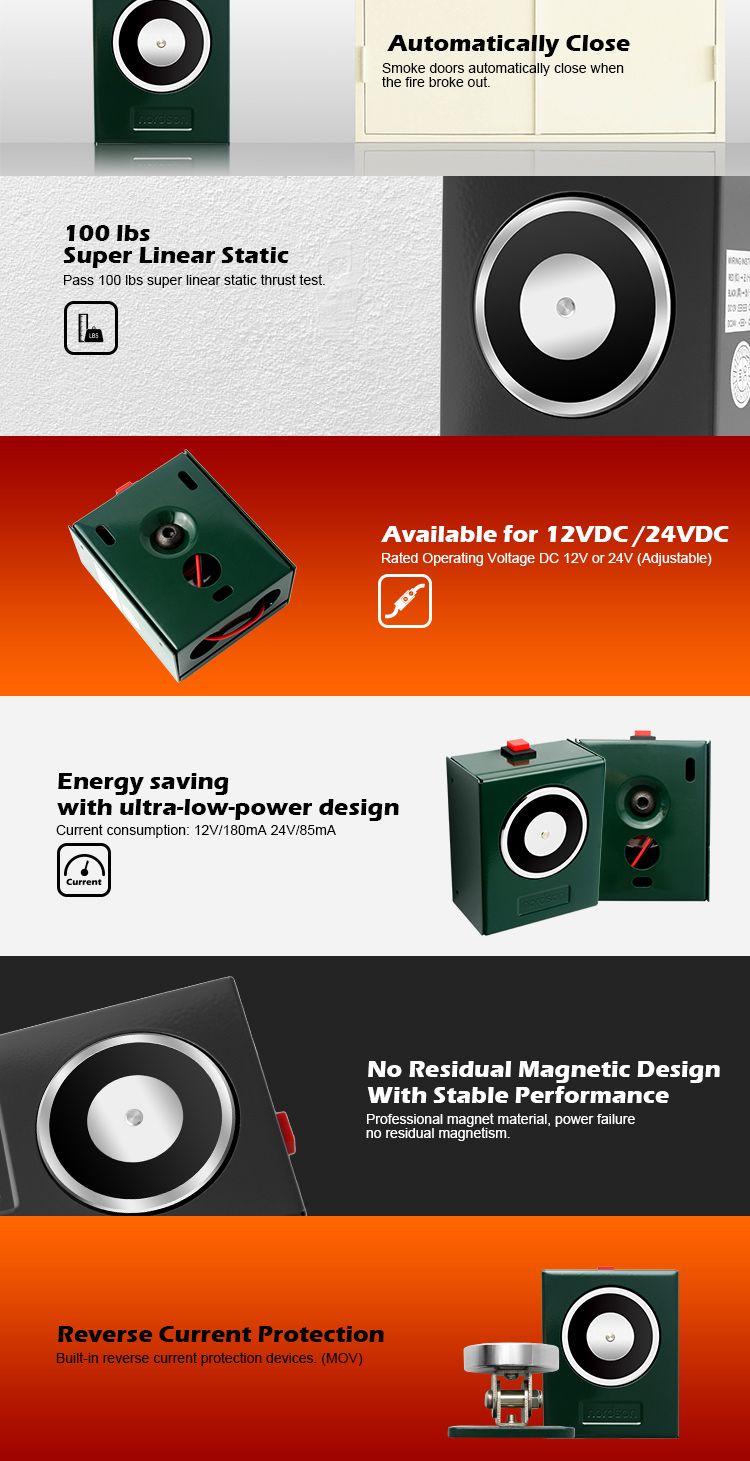

Function:
1.Pass 100Lbs super linear static thrust test
2.Double release modes: Power off & Manual button
3.Available for 12VDC /24VDC
4.Energy saving with ultra-low-power design
5.No residual magnetic design with stable performance
6.Passive switch signal output

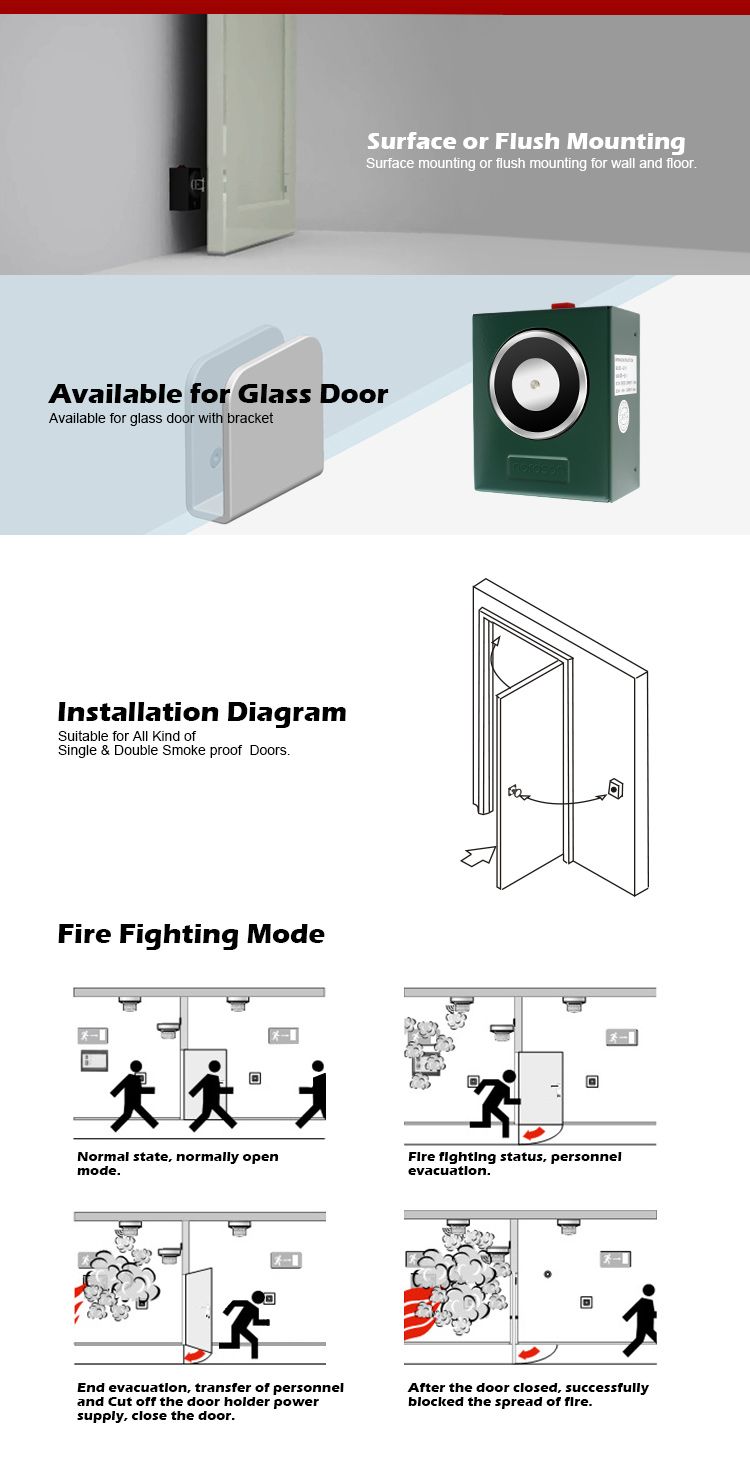

7.Surface mounting or flush mounting for wall and floor
8.Available for glass door with bracket
