Prod Model: |
NP-G140 |
Version: |
Fail-Unlocked |
Holding Force: |
50kg(100lbs) |
Standard Functions: |
Manual Door Release Button |
Lock Status Sensors: |
No |
Rated Operating Voltage: |
DC 12V or 24V (Adjustable) |
Current Consumption: |
12V/180mA 24V/85mA |
Surface Finish: |
Paint and Zinc Plated |
Ambient Temperature In °c: |
-10 Degree Centigrade - +55 Degree Centigrade |
Magnets Dimensions(L X W X D): |
70L*43W*86h(mm) |
Armature Plate Dimensions(L X W X D): |
65L*65W*53h(mm) |
Style: |
Modern |
Shape: |
Cube and |
Anti-theft Standard: |
A |
Part: |
Lock |
Backset: |
No Size Limit |
Door Thickness Fits: |
Unlimited |
Lock Cylinder Length: |
Without |
Material: |
Paint and Zinc Plated |
Usage: |
Channel Lock, Household Door Locks, Bedroom |
Type: |
Electronic |
Product Description

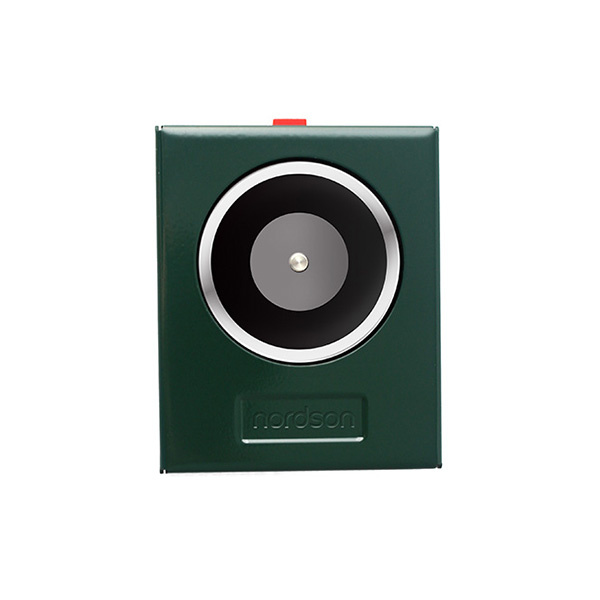

Standard electromagnetic door holder with ultra low power consumption
overview:NP-G140 is standard electromagnetic door holder with ultra low power consumption. There are 2 installation ways for wall and floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.Function:1.Pass 100Lbs super linear static thrust test
2.Double release modes: Power off & Manual button
3.Available for 12VDC /24VDC
4.Energy saving with ultra-low-power design
5.No residual magnetic design with stable performance
6.Passive switch signal output
7.Surface mounting or flush mounting for wall and floor
8.Available for glass door with bracket
Specification:Version | Fail-unlocked |
Holding Force | 50kg(100Lbs) |
Standard Functions | Manual door release button |
Lock Status Sensors | NO |
Rated Operating Voltage | DC 12V or 24V (Adjustable) |
Current consumption | 12V/180mA 24V/85mA |
Surface finish | Paint and Zinc plated |
Ambient temperature in °C | -10°C - +55°C |
Suitable for | All Kind of Single & Double Smokeproof Doors |
Magnets Dimensions(L x W x D) | 70L*43W*86H(mm) |
Armature Plate Dimensions(L x W x D) | 65L*65W*53H(mm) |
Weight in kg | 0.9kg |
CE-mark for building | YES |
Rohs-mark for building | YES |
