Prod Model: |
NP-G110-4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Dimensions: |
80L*80W*40h(mm) |
Holding Force: |
50kg(100lbs) |
Voltage: |
12/24VDC+10% |
Current Draw: |
12V/100mA 24V/50mA |
Weight: |
0.9kg |
Usage: |
Industrial |
Product Description
Electromagnetic Door Holder with Glass Door Holderinterview:

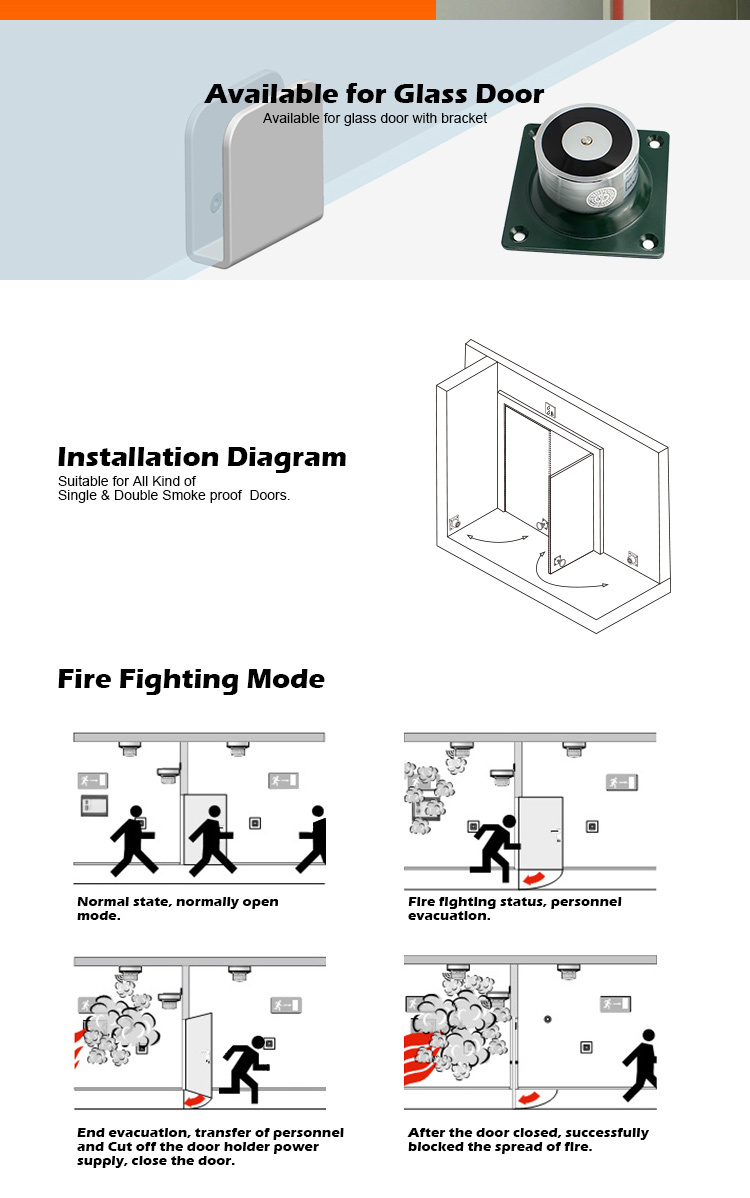

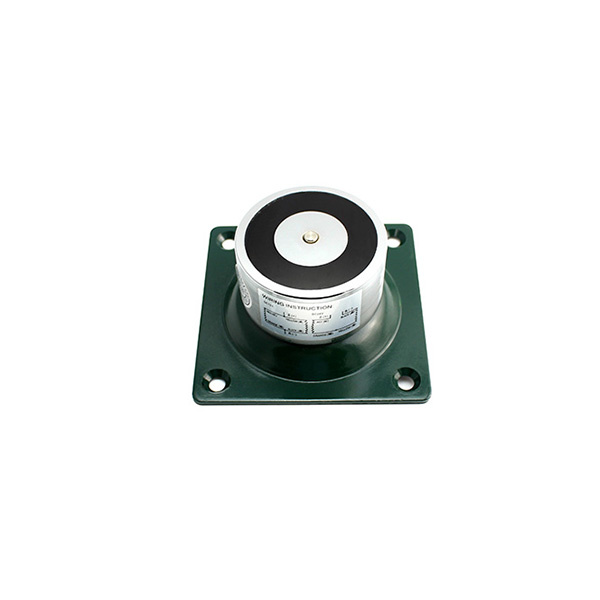

NP-G110 is standard Electromagnets for Hold Open Magnets with ultra low power consumption. There are 2 installation ways for wall and floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.Specification:
Version | Fail-unlocked |
Holding Force | 50kg(100Lbs) |
Lock Status Sensors | NO |

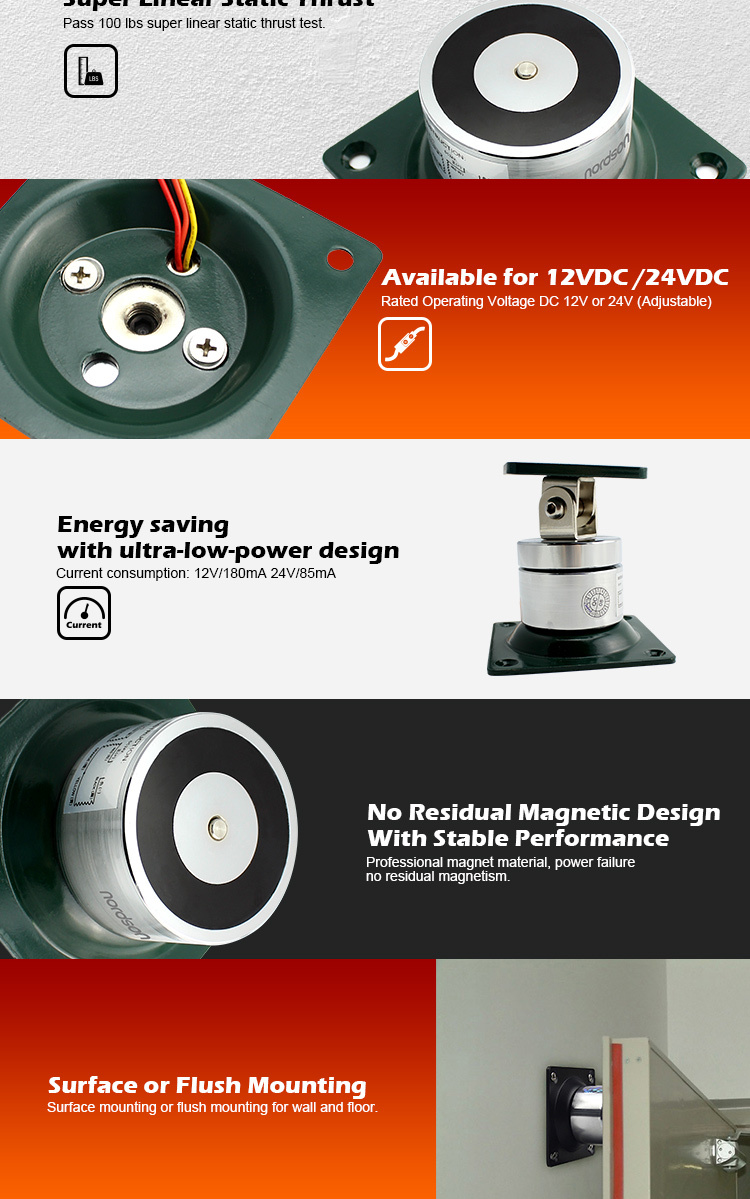

Rated Operating Voltage | DC 12V or 24V (Adjustable) |
Current consumption | 12V/180mA 24V/85mA |
Surface finish | Paint and Zinc plated |
Ambient temperature in °C | -10°C - +55°C |
Suitable for | All Kind of Single & Double Smokeproof Doors |

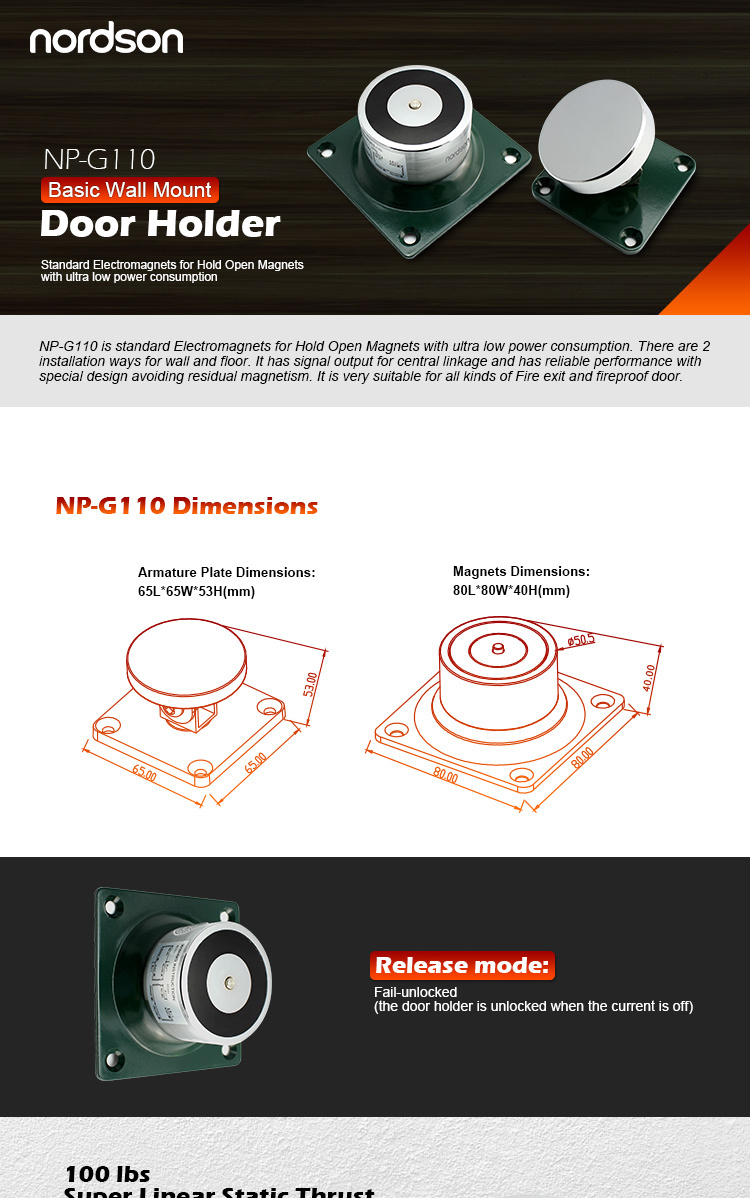

Magnets Dimensions(L x W x D) | 80L*80W*40H(mm) |
Armature Plate Dimensions(L x W x D) | 65L*65W*53H(mm) |
Weight in kg | 0.9kg |
CE-mark for building | YES |
Rohs-mark for building | YES |
Packaging & Delivery Packaging Details: | Neutral package of NJ-314 Electric strike door lock |
Delivery Detail: | 3-14 days after recieved your remittance |
Warranty:For the non-human factors of product quality issues, NORDSON NJ-314 Electric strike door lock
k enjoy a three-year warranty services, Access Control Panel ,
electric bolt and electric strike are 2 years, exit button, bracket , and power supply will be 1 year .
The customers will be in charge of the material and the maintain fees if the product damage under other condition
