Dynamic Storage Fifo Pallet Rack
| Price: | Negotiable/Ton |
|---|---|
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | PL 90 |
|---|---|
| Slope Of Roller Bed: | with 3-5° |
| Roller Diameter: | 60mm |
| Load Per Roller: | 150kg/Roller |
| Finish: | Galvanized |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Closed: | Closed |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Type: | Gravity Rack |
| Height: | 2-9m |
| Weight: | 150-1500kg |
Product Description

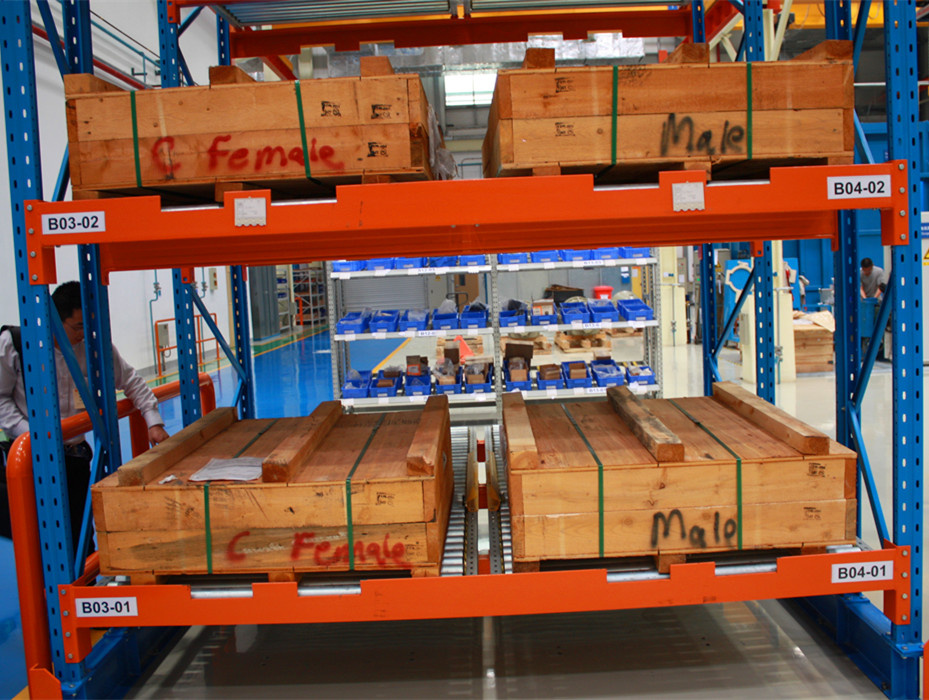

1. Product Description:Pallet Live Rack is a storage system that Gravity roller lanes ranged side by side and one above the others on the racks. Pallets are loaded from the upper end of the slope (with 3-5° ) and travel through the roller to the lower end picking face. It's the best FIFO storage system and is suitable for mass volume and lesser SKU products. The space utilization is high.
2. The basic components
Gravity pallet racking is composed of frames, beams and roller bed. The roller bed consists of a set of rollers designed to fit into a frame structure and mounted on the loading beams. To avoid the fast sliding down of pallets, normally brake rollers are designed. There is also one set of pallet separator for picking the first pallet. The system is designed for the storage of first in first out operation.
Pallet Separators:
Unpowered roller features:
1,Standard 300/1800 rollers
2,Loading of roller: 50-300kg/pcs
3,Maintenance free
4,Bearings: Sturdy and Durable
5,waterproof, dust free
6,long life span
The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Roller beds are normally galvanized. Special colors are available on request.
3. Advantages and Key benefits·
Complies with international norms and regulations
· Offer compact storage, the space utilization rate can be up to 60-70%.
· First in first out operation.
· The design is suitable for different size of pallets
· High quality of finish
4. Factory Production:
5. RFQ documents: Before you send us your Requirement For Quotation, please prepare the following information:
Warehouse layout CAD drawings if available.
Pallet size, entry side, width, depth, height of goods. specially the underneath structure of the pallets. We suggest better to have a sample of pallets for testing of slidiing on rollers.
Loading weight per pallet.
Clear height of the warehouse
Your forklift information, working aisles width and max. reaching height.
Your intra logistic flow within the warehouse.
parators:
