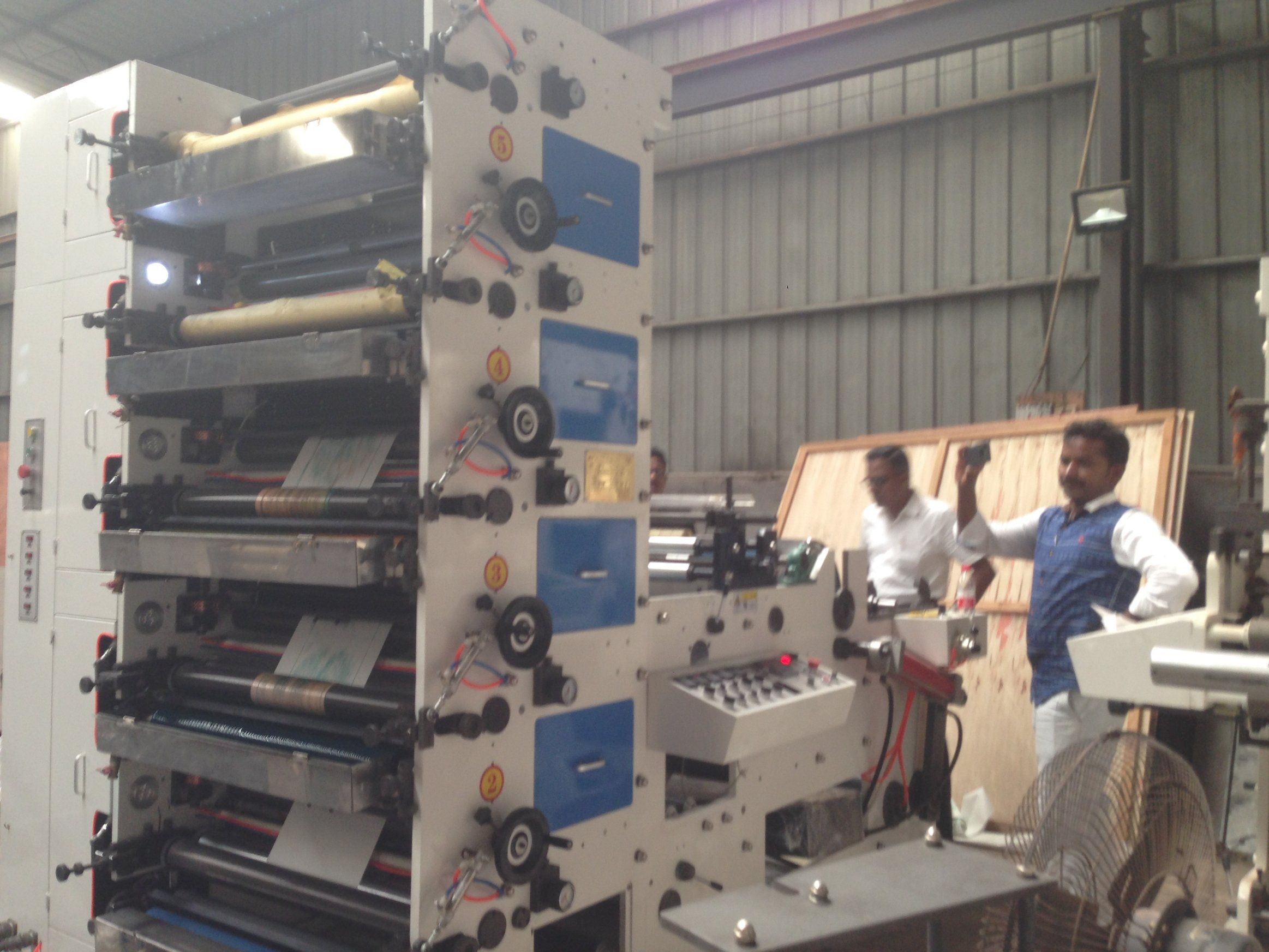

Flexo Printing Machine 5 Color 850mm Paper Cup
| Price: | US $ 9062-50000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | 850 |
|---|---|
| Product Name: | Flexo Printing Machine 420 with 6 UV |
| Speed: | 100m/Min |
| Color: | 5 |
| Max. Web Width: | 850mm |
| Max. Printing Width: | 850mm |
| Max. Putting Diameter: | 1000mm |
| Max. Winding Diameter: | 1000mm |
| Printing Girth: | 175-381mm |
| Precision Of Chromatography: | 0.1mm |
| Dimensions: | 3100*1200*2300(mm) |
| Type: | Ink Jet |
| Embossing Structure: | Rotary Letterpress |
| Application: | Paper Cup |
| Printing Speed: | 120m/Min |
Product Description
DETAILED PRODUCT DESCRIPTION:
Characteristics:
1. The main motor adopts imported inverter to govern a stepples speed adjustment.
2. Feeding and rewinding are controlled through magnetic particle brake and clutch(Japanese Mitsubishi auto tension controller).
3. Un winder system is controlled by edge guide sensor.
4. Adopt ceramic anliox roller which offers durability, wear resistance and corrosionresistance, also is more efficient on production by reducing the times of changing rollers.
5. The printing units are all equipped with a group of infrared dryers respectively.
6. Each IR dryer device of printing unit is interchangeable to UV dryer.
7. Un winder and re winder adopt air core holder.
8. The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units continue to printing.
9. The roll feeding, printing, UV vanish, auto infrared drying, laminating and rewinding can be processed in one pass. It has characterized by wide application, fast printing speed and high economic efficiency Ink will not contaminate environment. So it is an idea printing machine for the business form, Tag and high end pressure sensitive label.
Station for flexo printing machine:
1. One mounting machine
2. One anilox roller for each group (lpi is optional, made in Shanghai)
3. Three sets printing rollers (3*5=15)
4. Printing both sides at the same time (with turn bar)
5. With the lamination station
6. One unwinding tension controller (Mitsubishi Japan)
7. One rewinding tension controller (Mitsubishi Japan)
8. Two rotary die cutting station
9. One rotary sheeting station.
| Printing speed | 120m/min |
| Printing color | 5 colors |
| Max. web width | 850mm |
| Max. printing width | 850mm |
| Max. putting diameter | 1000mm |
| Max. Winding diameter | 1000mm |
| Printing girth | 175-381mm |
| Precision of chromatography | ±0.1mm |
| Dimensions | 3100*1200*2300(mm) |
| Machine weight | About 4000kg |
