Prod Model: |
ZBRY |
Product Name: |

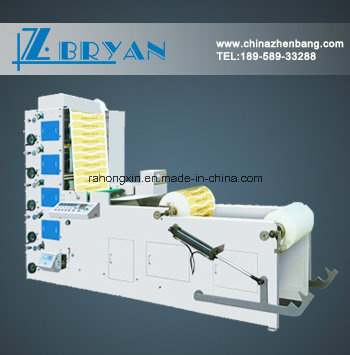

Zbry 520-4 Flexographic Printer |
Color: |
4 |
Max.Unwinding Diameter: |
600mm |
Max.Rewinding Diameter: |
550mm |
Printing Repeat: |
175-380mm |
Type: |
Ink Jet Type |
Style: |
Flexographic Printing Presses |
Structure: |
Rotary Printing Press |
Color & Page: |
Multi-Colour Printing Press |
System Supported: |
Vista |
Print Interface: |
Ceramic Anilox Roller |
Product Description
Product Description
1. The main motor adopts imported inverter to govern a stepples speed adjustment.
2. Feeding and rewinding are controlled through magnetic particle brake and clutch(Japanese Mitsubishi auto tension controller).
3. Un winder system is controlled by edge guide sensor.
4. Adopt ceramic anliox roller which offers durability, wear resistance and corrosionresistance, also is more efficient on production by reducing the times of changing rollers.
5. The printing units are all equipped with a group of infrared dryers respectively.
6. Each IR dryer device of printing unit is interchangeable to UV dryer.
7. Un winder and re winder adopt air core holder.
8. The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units continue to printing.
9. The roll feeding, printing, UV vanish, auto infrared drying, laminating and rewinding can be processed in one pass. It has characterized by wide application, fast printing speed and high economic efficiency Ink will not contaminate environment. So it is an idea printing machine for the business form, Tag and high end pressure sensitive label.
Model | RY-320 | RY-450 |
Max. Web width | 320mm | 450mm |
Max. printing width | 310mm | 440mm |
Printing repeat | 180mm-380mm/min | 180mm-380mm/min |
Color | 2~6 | 2~6 |
Thickness of substrate | 0.1~0.3mm | 0.1~0.3mm |
Machine speed | 10m-80m/min | 10m-80m/min |
Max. unwind diameter | 600mm | 600mm |
Max. Rewind diameter | 550mm | 550mm |
Main motor capacity | 2.2kw | 2.2kw |
Main power | 380V/AC 3 phase 50Hz | 380V/AC 3 phase 50Hz |
Overall dimension(L×W×H) | 3000×1500×3000 | 3000×1700×3000 |
Machine weight | 2000kg | 2300kg |
*Its overall dimension and manufacturing Process are subject to change without further notice. |
Ruian Zhenbang Printing Machinery Co., Ltd. is located at the leading industrial town in south Zhejiang, which has a long history of specializing in manufacturing series of trademark printing machine. Since its founding, the company has been holding on the creed of quality first and seek excellence, paying attention to inner management, after sales services, science and technical progress and information developing. It holds on the policy of uniting traders to occupy the market and take part in the competition. And thus achieved the rapid development of the enterprise.
Facing the drastic competition in the market, the companies makes its policy carefully and keeps its promise of quality basic and emphasize on quality, keep creditable as purpose, the company tries to improve its management system and perfects its sales network it answers back the society by its high quality products and effective services, and at the same time if believes that only by virtue of the strict standard on the product quality can the investing benefits of the clients be ensured more effectively.
Zhenbang enterprise hopes to cooperate with friends home and broad and progress together.
