Home LED Light Products Flexographic Printing Machine for Paper Cup

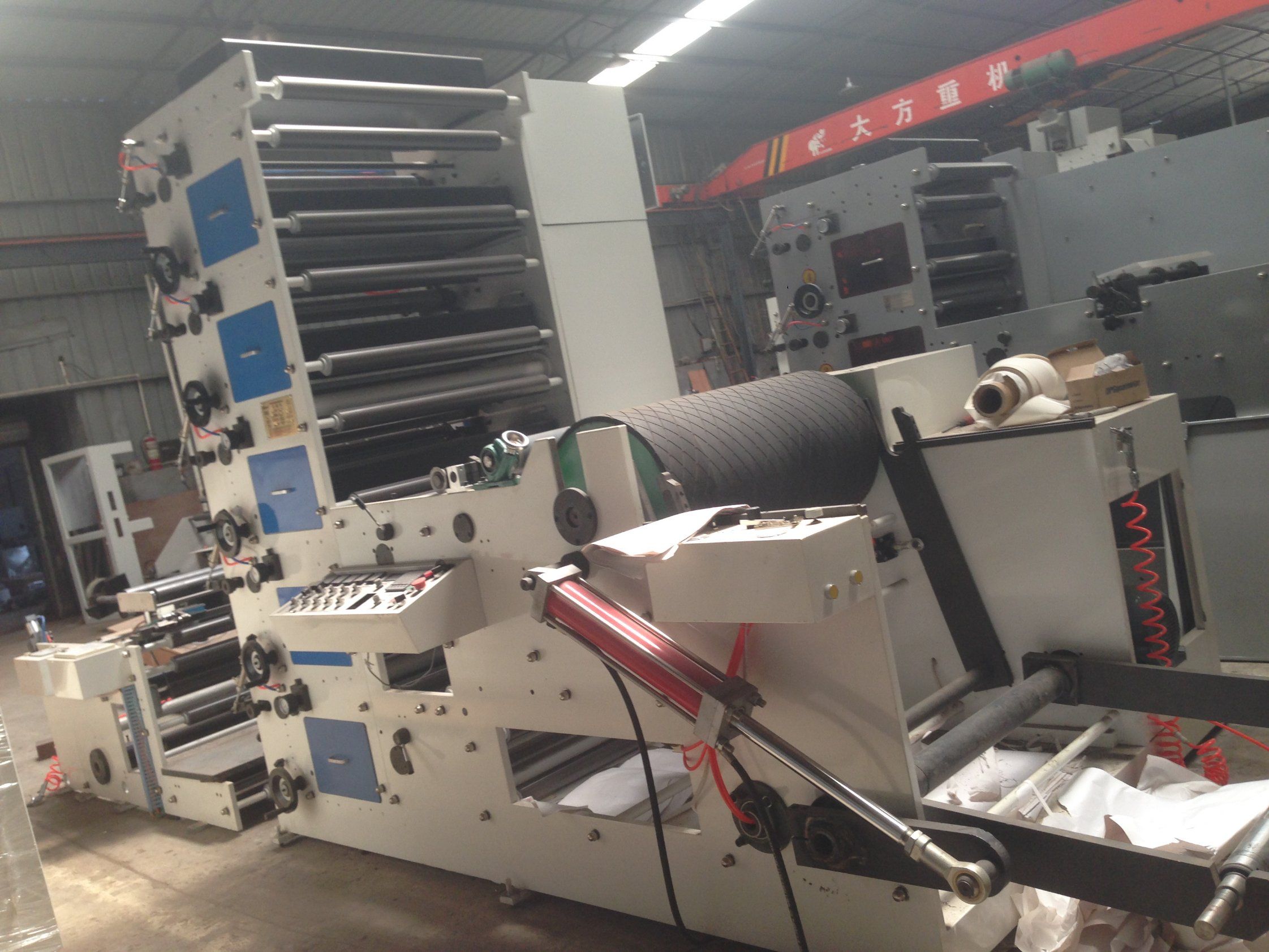

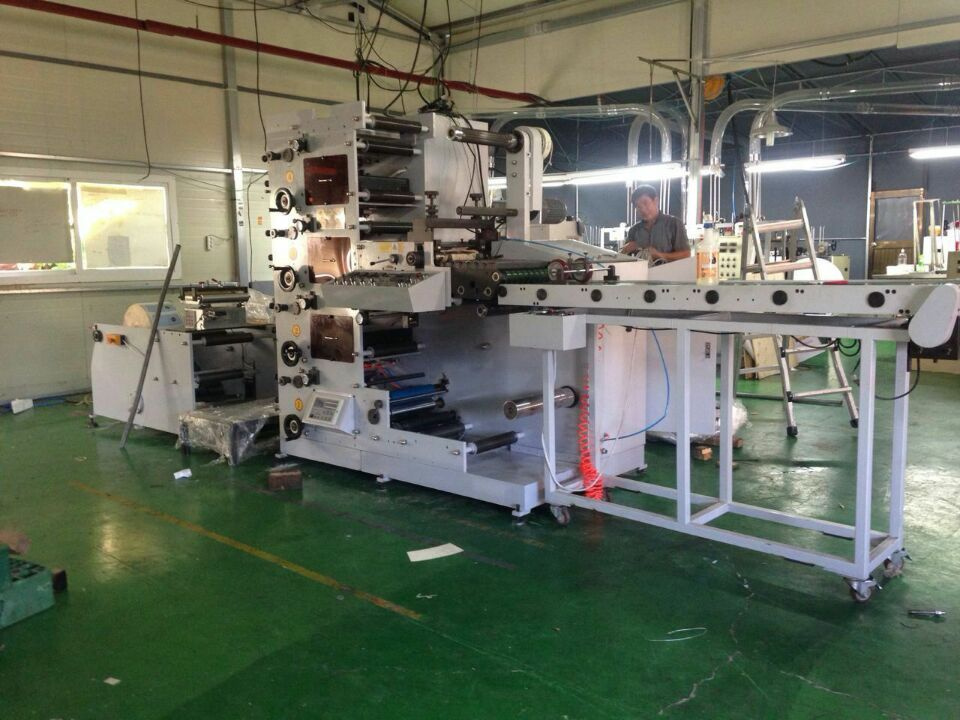

Flexographic Printing Machine for Paper Cup
| Price: | US $ 23000-25000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | 600-1000mm |
|---|---|
| Product Name: | Zbry 520-4 Flexographic Printer |
| Max.Unwinding Diameter: | 800mm |
| Max.Rewinding Diameter: | 800mm |
| Printing Repeat: | 175-381mm |
| Type: | Ink Jet |
| Embossing Structure: | Rotary Letterpress |
| Printing Speed: | 120m/Min |
Product Description
Product Description
1. The main motor adopts imported inverter to govern a stepples speed adjustment.
2. Feeding and rewinding are controlled through magnetic particle brake and clutch(Japanese Mitsubishi auto tension controller).
3. Un winder system is controlled by edge guide sensor.
4. Adopt ceramic anliox roller which offers durability, wear resistance and corrosionresistance, also is more efficient on production by reducing the times of changing rollers.
5. The printing units are all equipped with a group of infrared dryers respectively.
6. Each IR dryer device of printing unit is interchangeable to UV dryer.
7. Un winder and re winder adopt air core holder.
8. The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units continue to printing.
9. The roll feeding, printing, UV vanish, auto infrared drying, laminating and rewinding can be processed in one pass. It has characterized by wide application, fast printing speed and high economic efficiency Ink will not contaminate environment. So it is an idea printing machine for the business form, Tag and high end pressure sensitive label.
| Model | RY-320 | RY-450 |
| Max. Web width | 320mm | 450mm |
| Max. printing width | 310mm | 440mm |
| Printing repeat | 180mm-380mm/min | 180mm-380mm/min |
| Color | 2~6 | 2~6 |
| Thickness of substrate | 0.1~0.3mm | 0.1~0.3mm |
| Machine speed | 10m-100m/min | 10m-100m/min |
| Max. unwind diameter | 600mm | 600mm |
| Max. Rewind diameter | 550mm | 550mm |
| Main motor capacity | 2.2kw | 2.2kw |
| Main power | 380V/AC 3 phase 50Hz | 380V/AC 3 phase 50Hz |
| Overall dimension(L×W×H) | 3000×1500×3000 | 3000×1700×3000 |
| Machine weight | 2000kg | 2300kg |
| *Its overall dimension and manufacturing Process are subject to change without further notice. | ||
