Heavy Duty Pallet Gravity Fifo Rack
| Price: | Negotiable/Ton |
|---|---|
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | PL 90 |
|---|---|
| Slope Of Roller Bed: | with 3-5° |
| Roller Diameter: | 60mm |
| Load Per Roller: | 150kg/Roller |
| Finish: | Galvanized |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Closed: | Closed |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Type: | Gravity Rack |
| Height: | 2-9m |
| Weight: | 150-1500kg |
Product Description

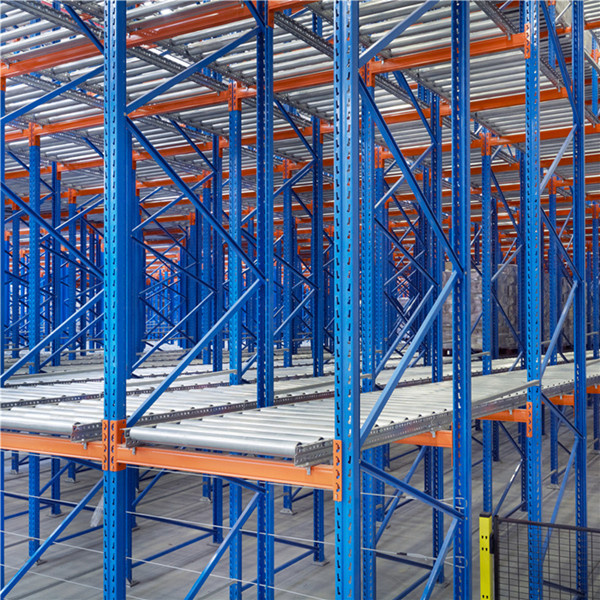

1. Product Description:Pallet Live Rack is a storage system that Gravity roller lanes ranged side by side and one above the others on the racks. Pallets are loaded from the upper end of the slope (with 3-5° ) and travel through the roller to the lower end picking face. It's the best FIFO storage system and is suitable for mass volume and lesser SKU products. The space utilization is high.
2. The basic components
Gravity pallet racking is composed of frames, beams and roller bed. The roller bed consists of a set of rollers designed to fit into a frame structure and mounted on the loading beams. To avoid the fast sliding down of pallets, normally brake rollers are designed. There is also one set of pallet separator for picking the first pallet. The system is designed for the storage of first in first out operation.
Pallet Separators:
Unpowered roller features:
1,Standard 300/1800 rollers
2,Loading of roller: 50-300kg/pcs
3,Maintenance free
4,Bearings: Sturdy and Durable
5,waterproof, dust free
6,long life span
The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Roller beds are normally galvanized. Special colors are available on request.
3. Advantages and Key benefits·
Complies with international norms and regulations
· Offer compact storage, the space utilization rate can be up to 60-70%.
· First in first out operation.
· The design is suitable for different size of pallets
· High quality of finish
4. Factory Production:
5. RFQ documents: Before you send us your Requirement For Quotation, please prepare the following information:
Warehouse layout CAD drawings if available.
Pallet size, entry side, width, depth, height of goods. specially the underneath structure of the pallets. We suggest better to have a sample of pallets for testing of slidiing on rollers.
Loading weight per pallet.
Clear height of the warehouse
Your forklift information, working aisles width and max. reaching height.
Your intra logistic flow within the warehouse.
parators:
Shanghai Calin Logistic Equipment Co. Ltd. Is one of the professional suppliers for storage and logistic equipment with the specialty of racking design, manufacturing, sales and services. The company is located in Changning District, Shanghai. Our main business is to provide racking systems for the storage of palletized or small goods and longer items.
The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.
There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.
Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.
There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.
Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
