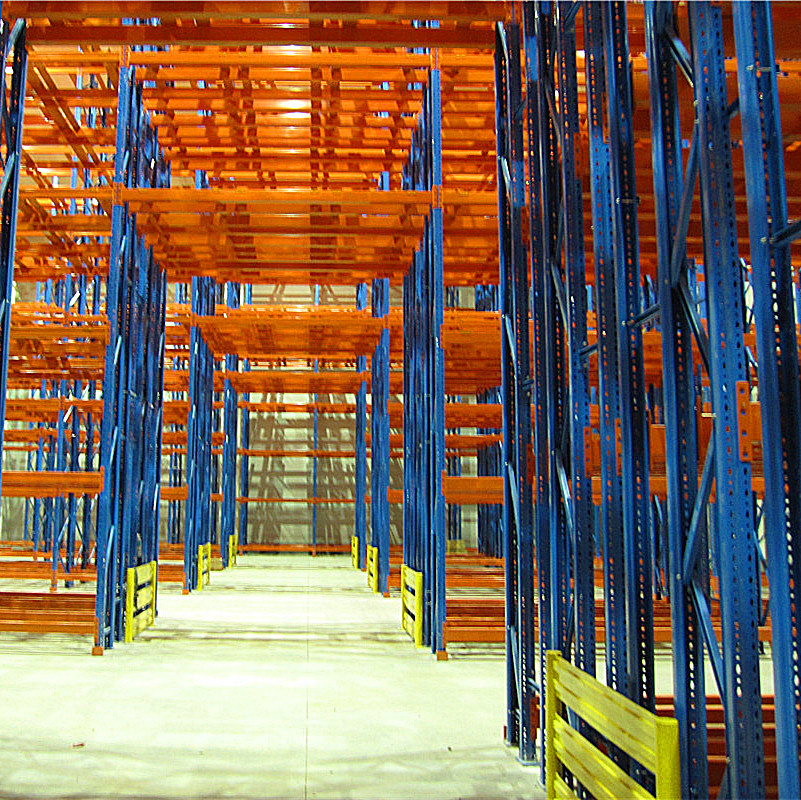

Industrial Selective Double Deep Warehouse Rack

Prod Model:	PR 90
Beam Deflection:	1/200
Forklift:	Double Deep
Accessories:	Pallet Support Bar
Norm:	Fem 10.2.02
Material:	Steel
Structure:	Rack
Mobility:	Adjustable
Height:	5-15m
Closed:	Semi-closed
Development:	Conventional
Serviceability:	Common Use
Weight:	500kg-2000kg

Product Description

1. Product Description:
Double Deep is similar to selective racking; but pallets are now stored two rows deep instead of one. This type of racking therefore requires specialised pallet handling equipment using ether a specialised forklift or a standard unit a with double deep handling attachment.
The most common forklift used for double-deep handing is a reach truck. One key disadvantage with reach trucks is that they require a counterbalance for loading and unloading the pallet onto trucks, which can double capital investment requirements for your pallet handling equipment.

2. Basic Components:
Selective pallet racking is composed of basic element such as frames and beams. It also consists of a full range of accessories to fulfill all of your requirements. The system is designed for the optimized storage of goods of all sizes and weights.

The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.


3. Product Specifications:

Main components	Section size	Thickness	Material
Upright	90*70	1.8	Q235B
	90*70	2.0	Q235B
	90*70	2.3	Q235B
	100*80	2.0	Q235B
	100*80	2.3	Q235B
	100*80	2.5	Q235B
	120*95	2.3	Q235B
	120*95	2.5	Q235B
	120*95	2.75	Q235B
Box Beams	80*50*1.5	1.5	Q235B
	100*50*1.5	1.5	Q235B
	120*50*1.5	1.5	Q235B
	140*50*1.5	1.5	Q235B
	140*50*1.8	1.8	Q235B
	160*50*1.5	1.5	Q235B
	160*50*1.8	1.8	Q235B

Beam Loading Chart:

Beams Specification	Clear Entry (mm) Deflection<1/200
	1500	1800	2000	2300	2500	2700	3000	3300	3600	3900
B80*50*1.5	4000	2800	2200	1700	1500	1200	1000	850
B100*50*1.5		4200	3400	2800	2500	2100	1700	1400	1200
B110*50*1.5			4500	3300	2800	2500	2200	1800	1500	1200
B120*50*1.5				4000	3400	3000	2600	2200	1800	1500
B140*50*1.5					4500	3800	3200	3000	2600	2000
B160*50*1.5						4800	4200	3800	3300	2800

4. Advantages and Key benefits·
Advantages
Lowers capital investment compared to scissor & pantograph masts.
Reduces required aisle width when compared to manual fork extensions
Increases handling of pallets and reduces stock damage compared to manual fork extensions.
Clear visibility, no extra obstructions because of all extra moving parts of the scissor reach system.
Disadvantages
Reduces forklift lifting capacity

Pallet Access (LIFO)

Double-Deep is Last In First Out (LIFO). This type of racking reduces the amount of accessible stock keeping units (SKU's) due to 50% of SKU's being behind pallets when storage locations are at full capacity. Can increase pallet storage by as much as 10-15% depending on racking layout.
Double-deep is better suited to stock that has a medium to long term shelf life. Highly perishable goods aren't recommended for this style of racking due to LIFO racking type.
5. Factory Production:
Roll forming--Welding--Pretreatment-Powder-Coating--Baking--Off loading--Packing


6. RFQ Documents:
Before you send us your requirement for quotation, please prepare the following information:
Warehouse layout CAD drawings if available.
Pallet size, entry side, width, depth, height of goods.
Loading weight per pallet.
Clear height of the warehouse
Your forklift information, working aisles width and max. Reaching height.
Your intra logistic flow within the warehouse.
