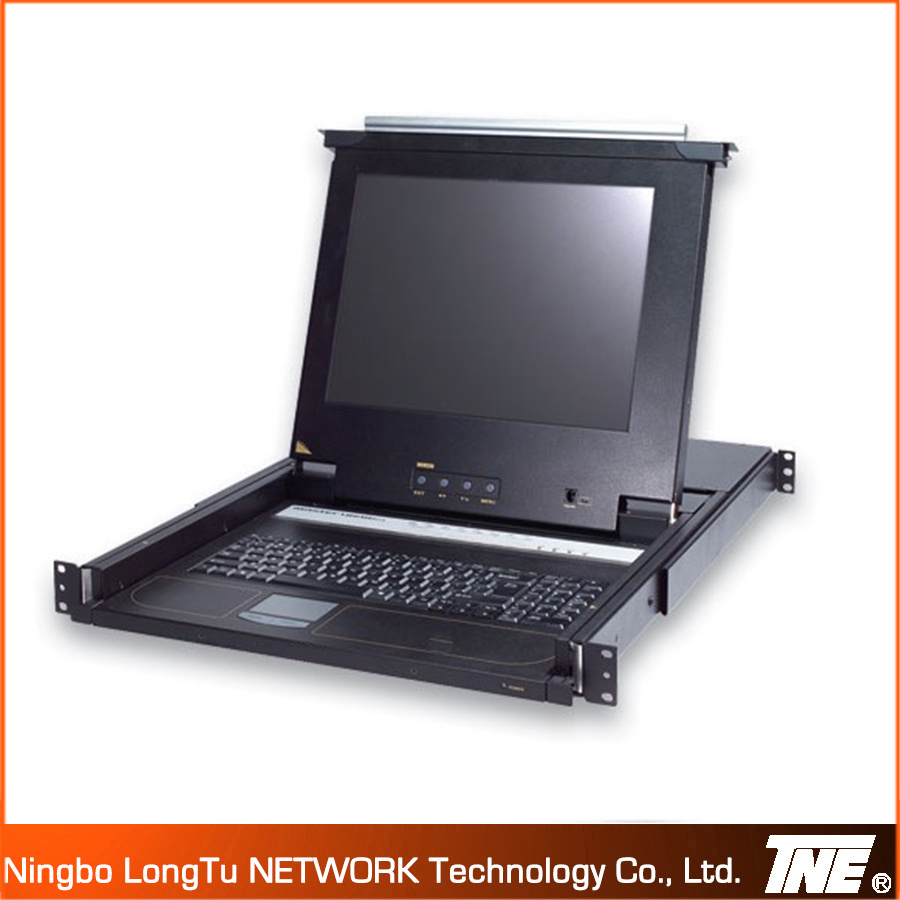

Network Cabinet Server LCD Kvm Drawer

Prod Model:	TN-301-52
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Fiber Optic Connectors
Wiring Devices:	Integrated Wiring
Condition:	New

Product Description

VGA KVM controlplatform AS-9100ULG is one with integrate a single ports KVM switch, monitor,keyboard & mouse into 1U height. It controls 1pcs computer with oneplatform (keyboard, mouse and monitor).
FEATURES
Control Platform
Control platform with LCD, keyboard, mouse and singleports VGA KVM switch.
1U height, suitable for 19'' standard cabinetinstallation and metal structure.
19" LED screen with high brightness, high clear andhigh resolution.
Control platform can be totally pulled out from thecabinet and the LCD screen can be turned on to 120 degrees.
Ultra thin keyboard with keypad.
Mouse touch board with two function button.
Front panel with lock to prevent damage by accident.
Built-in power.
Automatic power on/off. When pulling control platformout from cabinet, the power turns off automatically. When pushing it into thecabinet, the power turns on automatically.
An easy to use OSD menu.
Switch
One control platform can control 1pcs computer bydirect connection.
Be compatible with USB/PS.2 standard interface.
Support VGA, SVGA, XGA video input.
Accord with DDC, DDC2, DDC2B standard and VESAstandard.
Support maximum resolution of 1920 * 1080
Support multiple operating systems:WIN95/98/98SE/ME/200/XP/7/ NT, UNIX, LINUX.

Type		AS-9100ULG
Computer Connection		1
CPU Port Selection		Front panel buttons/OSD menu
Console Connector	Keyboard	Disassembled standard 99-key keyboard
	Mouse	standard PS/2 touch pad; rear side with USB connector
	Video	19 inch SXGA color TFT-LCD
Cable Connectors	Keyboard	1 x PS/2 female (purple),1 x USB female
	Mouse	1 x PS/2 female (green) ,1 x USB female
	Video	1 x HDB-15 male (blue)
LED's	Online	1 red LED's
	Selected	1 green LED's
LCD monitor	monitor	19.0"SXGA Color TFT-LCD
	visible square	304.128(H)*228.096(V)mm
	Resolution(max)	1920*1080  60HZ
	Support Color	16.2 M / 262K colors
	White Luminance	250 (center, Typ)@ 60 mA
	contrast	700:1 (Typ)
	Back light	LED
	Pixel Pitch	0.297(per one triad)x0.297
	LCD MTBF	50,000hours
	Input power	DC 12 V
Keyboards	keyboard	99keys
	Compatible IBM/AT	Win95/98/98SE/ME/200/Win7 XP Vista WinNT Uni Linux
	Port	Standard PS/2&USB
	Using life	>1,000,000 times
Mouse	X/Y resolution	1000dots/inch 40x40/mm)
	hardware connector	Standard PS/2&USB
	Os support	Win95/98/98SE/ME/200/Win7 XP Vista WinNT Uni Linux
	Using life	>1,000,000 times
Power	Power (AC)	~100V-240V
	Using life	MTBF>60,000hours 25 °C
Housing		Metal ( black )
Gross weight		19.13 KGS
Dimensions		630*450*42mm
Rack installation depth		600mm ~ 1200mm(adjustable)
Operating/storage Temp		0 ~ 50 /-20 ~ 60ºC
