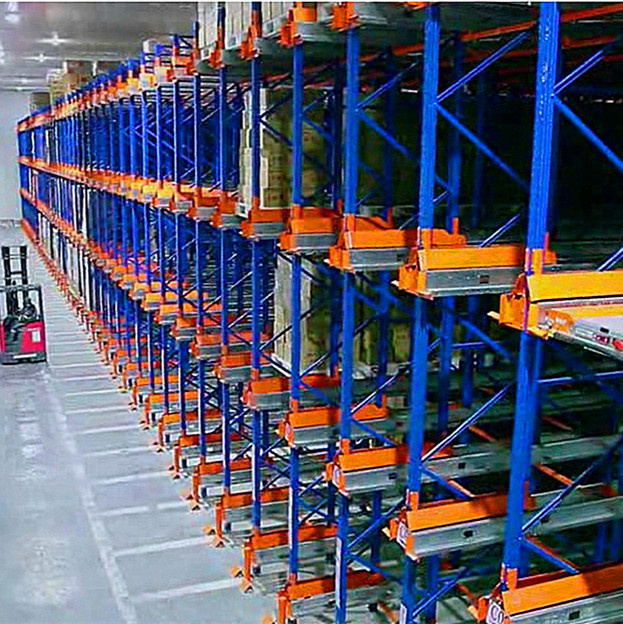

Pallet Shuttle Racking for Cold Store Warehouse Storage

Pallet Shuttle Racking for Cold Store Warehouse Storage
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: SR 90
Material: Steel
Structure: Rack
Mobility: Mobile
Height: 5-15m
Closed: Closed
Development: New Type
Serviceability: for Special Purpose
Weight: 500kg-1500kg

Product Description

1. Product Specifications:

Shuttle racking, is a deep lane storage and retrieval system. The pallet shuttle system consists in a specific rack and a mobile shuttle. This shuttle is a self-powered device that runs on rails in the storage lanes for the loading and unloading of pallets. It is transported to its location at the
front or the back of a lane (in case of open back side) by a standard forklift. Once at its home position, the shuttle performs the loading and unloading tasks without any human intervention.
These tasks are instructed by the fork lift driver using a remote control. Once the tasks are completed the shuttle returns to its home position and is then ready to be transported to a new location for a new task.

By introducing more shuttles into a racking system, the performance will increase. The system can be used for new installations as well as for refurbishments, and is independent from the number and the depth of the lanes. The systems is widely used in food, FMCG, Cold chain logistic area, etc.


2. Clear benefits and advantages:
A shuttle system offers highest possible density storage and is considered the best solution amongst not fully automated systems
The system is semi-automated and works in combination with a fork lift truck.
While the shuttle transports the load within the racking, the fork lift driver is free to work elsewhere, thus he is optimizing his working time.
Compact storage of another article (SKU) on every lane.
Ability to handle the pallets FIFO and LIFO. And the possibility to change at every time. Both can be available in the same block. What we call 'Maximum Flexibility'

2. Techincal Specifications:

ItemsDATAItemsDATA
Loading capacity≤1500KGRated Voltage26v
Speed without load1.1 m/sBattery Duration≥8h
Speed with load0.8 m/sRemote range100m
Acceleration without load0.8 m/s2Charging time3h/85%

Standard configeration:
ItemsNameSpecificationQuantity
Standard configurationShuttle main bodyW****D***1 SET
Lithium Battery26V/60AH1 SET
Battery Charger29.4V1 PCS
Remote controllerT60TX-15DML1 PCS
Lock of battery compartmentC19*20L1 SET
Expanded configurationWMS,  AUTOMATIC INVENTORY,PAD




3. Shuttle operational requirements
Pallet
For a good operation and the shuttle is a moving transport device, a  good quality pallet is required. The pallet surface should be closed (no mesh patterns), unless stated otherwise.
Wooden pallets of good quality, allowing the span between the 2 pallet-rails, with a maximum pallet deflection of 20mm
The pallet and/or load have a fully closed strip in the middle for the detection of the sensors
Not acceptable or to be tested for approval:
Damaged pallets
Pallets with too high deflection
Pallets with an open bottom construction
Containers and metal support structures
Ambient conditions
Operating temperature: from -30°C to +35°C
Relative humidity: max 80%
Shuttle better always remains in the  cold-store environment
Before switching on the power again the shuttle must be dry (no condensation)
Not acceptable:
·         Dusty, sandy, humid, combustible,… environments



4. Warehouse conditions/Cold Store
Keep the shuttle always INSIDE the Cold Store
But charge the batteries always OUTSIDE the Cold Store
    charge only after warming up to normal temperature
So in 3 shift applications best to use 3 battery packs :
              1 working in the shuttle
              1 warming up
              1 charging in the battery station.
Battery and shuttle must be completely dry before connecting
For existing Cold Store Rooms check for condensation or icing on rails, floors
For NEW Cold Store Warehouses check if a intermediate area is foreseen between ambient and frozen zone, humidity around a frozen storage zone is prohibited.
5. RFQ Documents:
Before you send us your requirement for quotation, please prepare the following information:
Warehouse layout CAD drawings if available.
Pallet size, entry side, width, depth, height of goods.
Loading weight per pallet.
Clear height of the warehouse
Your forklift information, working aisles width and max. reaching height.
Your intra logistic flow within the warehouse.







Shanghai Calin Logistic Equipment Co. Ltd. Is one of the professional suppliers for storage and logistic equipment with the specialty of racking design, manufacturing, sales and services. The company is located in Changning District, Shanghai. Our main business is to provide racking systems for the storage of palletized or small goods and longer items.

The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.

There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.

Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
