Steel Rack for Heavy Duty Storage
| Price: | US $ 900-930/Ton |
|---|---|
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | PR 90 |
|---|---|
| Color: | Ral 5015, Ral 2004 |
| Norm: | Fem 10.2.02 |
| Proposal Design: | Available |
| Beam Deflection: | 1/200 |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Semi-closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500kg-2000kg |
Product Description
- Product Description:
2. Basic Components:

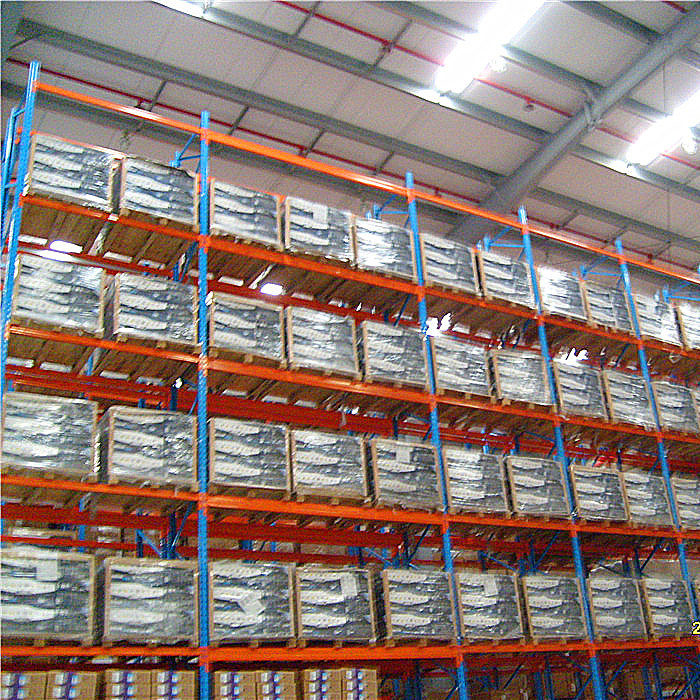

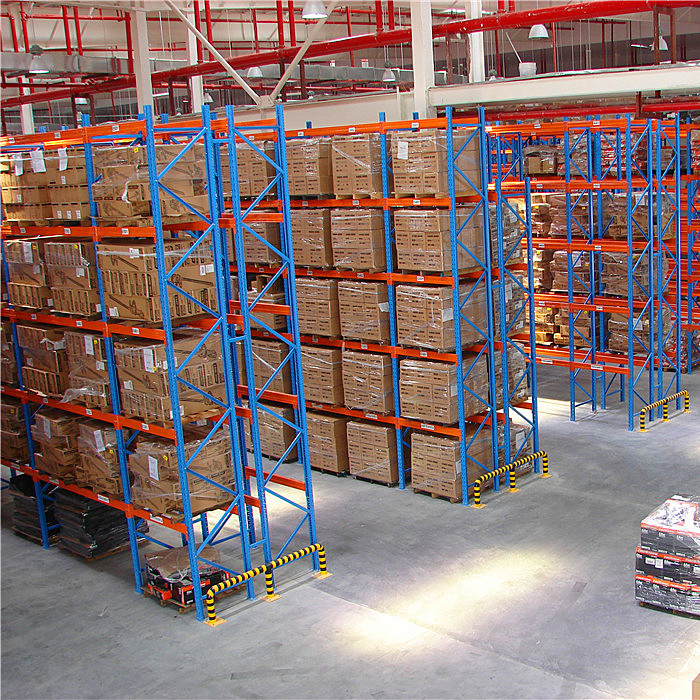

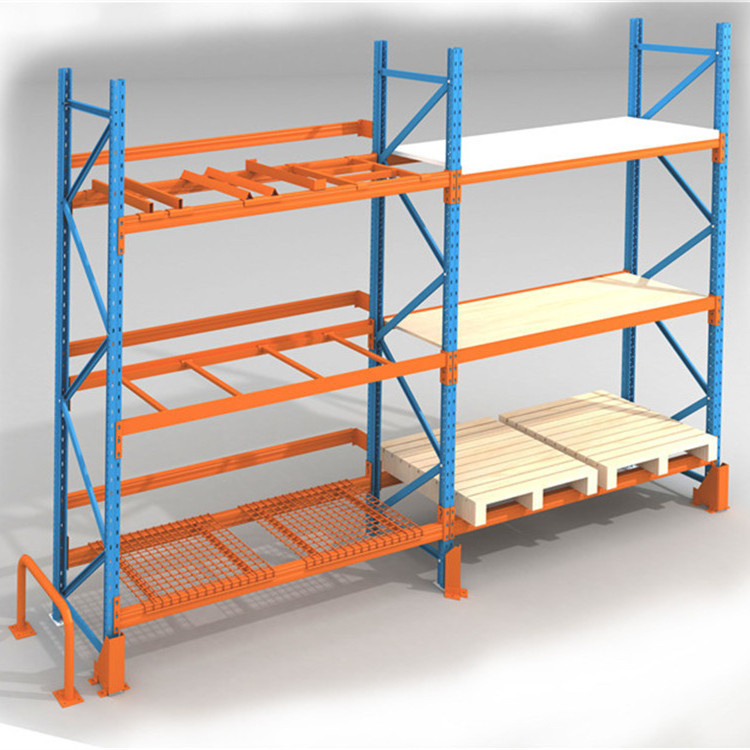

Selective pallet racking is composed of basic element such as frames and beams. It also consists of a full range of accessories to fulfill all of your requirements. The system is designed for the optimized storage of goods of all sizes and weights.

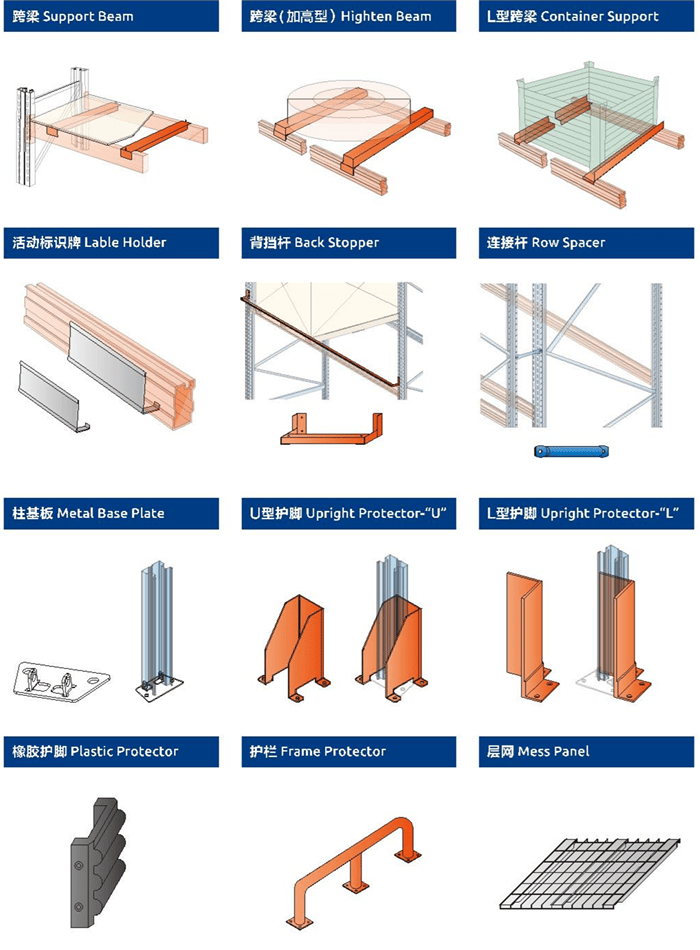

Available accessories:
The optional accessories include Corner guard, Barrier, Frame protector, Pallet support bar, Wire mesh decking, Grating panel, Steel shelves, etc.
The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.
3. Product Specifications:
| Main components | Section size | Thickness | Material |
| Upright | 75*63 | 1.5 | Q235B |
| 75*63 | 1.8 | Q235B | |
| 90*70 | 1.8 | Q235B | |
| 90*70 | 2.0 | Q235B | |
| 90*70 | 2.3 | Q235B | |
| 100*80 | 2.0 | Q235B | |
| 100*80 | 2.3 | Q235B | |
| 100*80 | 2.5 | Q235B | |
| 120*95 | 2.3 | Q235B | |
| 120*95 | 2.5 | Q235B | |
| 120*95 | 2.75 | Q235B | |
| Box Beams | 80*50*1.5 | 1.5 | Q235B |
| 100*50*1.5 | 1.5 | Q235B | |
| 120*50*1.5 | 1.5 | Q235B | |
| 140*50*1.5 | 1.5 | Q235B | |
| 140*50*1.8 | 1.8 | Q235B | |
| 160*50*1.5 | 1.5 | Q235B | |
| 160*50*1.8 | 1.8 | Q235B |
Beam Loading Chart:
| Beams Specification | Clear Entry (mm) Deflection<1/200 | |||||||||
| 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| B80*50*1.5 | 4000 | 2800 | 2200 | 1700 | 1500 | 1200 | 1000 | 850 | ||
| B100*50*1.5 | 4200 | 3400 | 2800 | 2500 | 2100 | 1700 | 1400 | 1200 | ||
| B110*50*1.5 | 4500 | 3300 | 2800 | 2500 | 2200 | 1800 | 1500 | 1200 | ||
| B120*50*1.5 | 4000 | 3400 | 3000 | 2600 | 2200 | 1800 | 1500 | |||
| B140*50*1.5 | 4500 | 3800 | 3200 | 3000 | 2600 | 2000 | ||||
| B160*50*1.5 | 4800 | 4200 | 3800 | 3300 | 2800 | |||||
4. Advantages and Key benefits·
Complies with international norms and regulations
· Wide range of basic components for storage of all pallet sizes and weights.
· Many standard accessories to meet every storage need you can imagine
· Computer aided design ensuring the best solution for every application, including static calculations
· Rigid and stable construction
· High quality of finish
· Easy and quick installation
· Mass volume production to offer very cost effective products

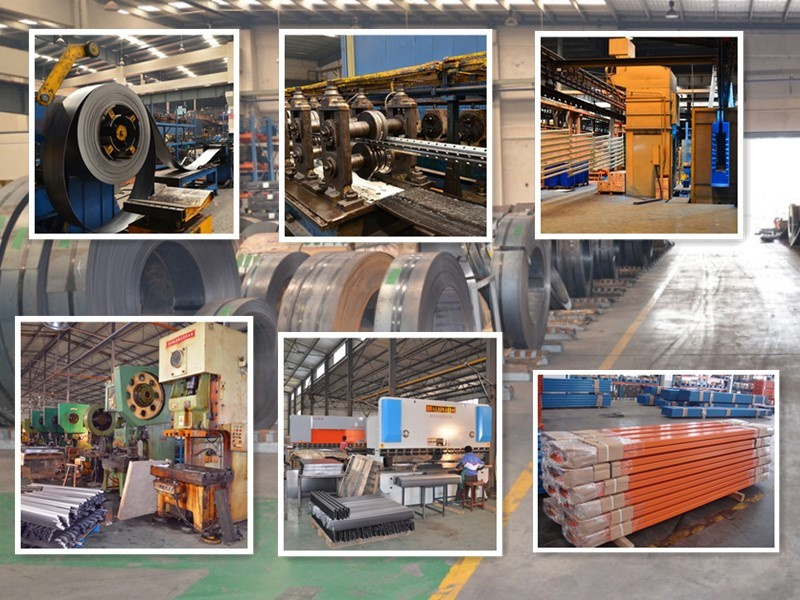

5. Factory Production:
6. RFQ Documents:
Before you send us your requirement for quotation, please prepare the following information:
- Warehouse layout CAD drawings if available.
- Pallet size, entry side, width, depth, height of goods.
- Loading weight per pallet.
- Clear height of the warehouse
- Your forklift information, working aisles width and max. Reaching height.
- Your intra logistic flow within the warehouse.
