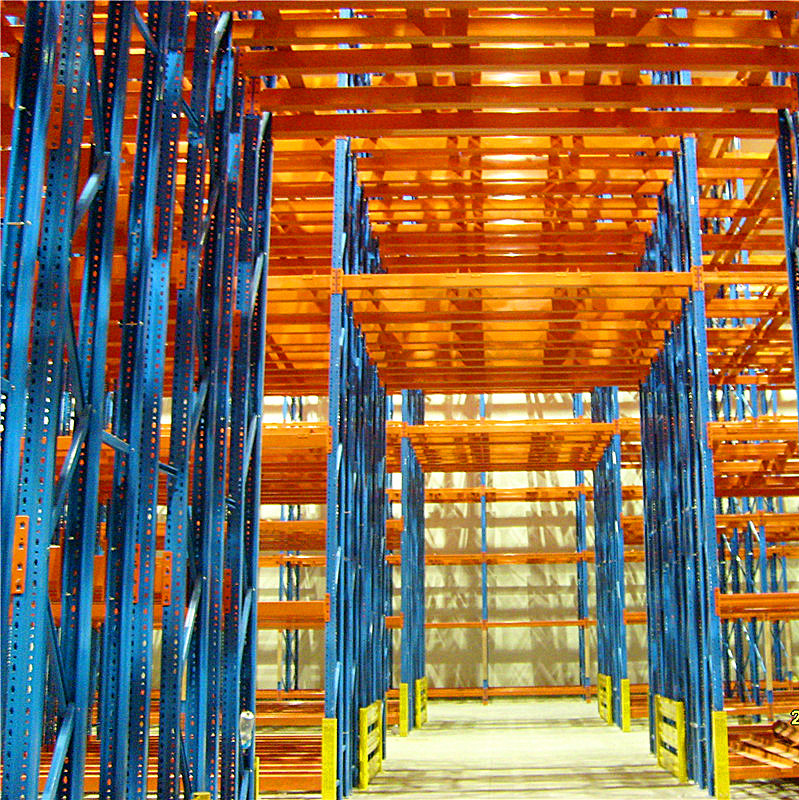

Warehoue Storage Double Deep Pallet Rack
| Price: | US $ 870-930/Ton |
|---|---|
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | PR 90 |
|---|---|
| Beam Deflection: | 1/200 |
| Forklift: | Double Deep |
| Accessories: | Pallet Support Bar |
| Norm: | Fem 10.2.02 |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Semi-closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500kg-2000kg |
Product Description

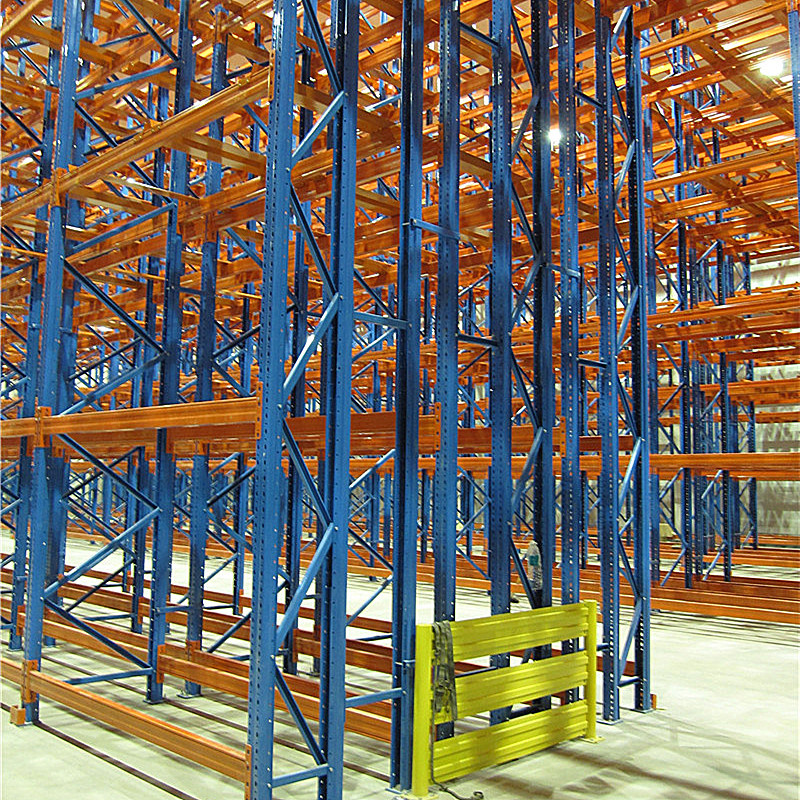

1. Product Description:Double Deep is similar to selective racking; but pallets are now stored two rows deep instead of one. This type of racking therefore requires specialised pallet handling equipment using ether a specialised forklift or a standard unit a with double deep handling attachment.
The most common forklift used for double-deep handing is a reach truck. One key disadvantage with reach trucks is that they require a counterbalance for loading and unloading the pallet onto trucks, which can double capital investment requirements for your pallet handling equipment.
2. Basic Components:

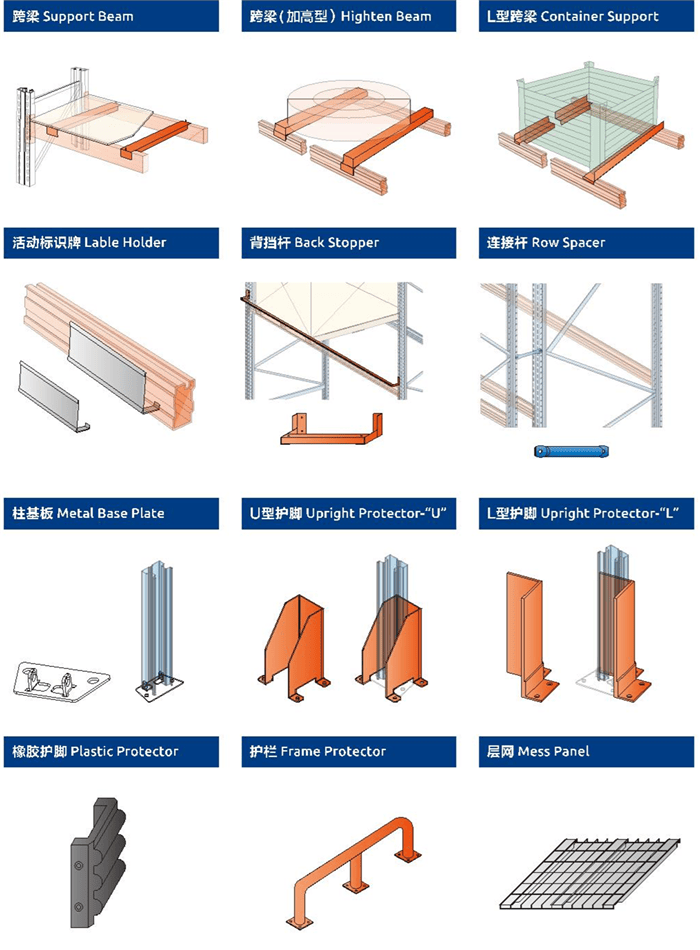

Selective pallet racking is composed of basic element such as frames and beams. It also consists of a full range of accessories to fulfill all of your requirements. The system is designed for the optimized storage of goods of all sizes and weights.
The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.
3. Product Specifications:
| Main components | Section size | Thickness | Material |
| Upright | 90*70 | 1.8 | Q235B |
| 90*70 | 2.0 | Q235B | |
| 90*70 | 2.3 | Q235B | |
| 100*80 | 2.0 | Q235B | |
| 100*80 | 2.3 | Q235B | |
| 100*80 | 2.5 | Q235B | |
| 120*95 | 2.3 | Q235B | |
| 120*95 | 2.5 | Q235B | |
| 120*95 | 2.75 | Q235B | |
| Box Beams | 80*50*1.5 | 1.5 | Q235B |
| 100*50*1.5 | 1.5 | Q235B | |
| 120*50*1.5 | 1.5 | Q235B | |
| 140*50*1.5 | 1.5 | Q235B | |
| 140*50*1.8 | 1.8 | Q235B | |
| 160*50*1.5 | 1.5 | Q235B | |
| 160*50*1.8 | 1.8 | Q235B |
Beam Loading Chart:
| Beams Specification | Clear Entry (mm) Deflection<1/200 | |||||||||
| 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| B80*50*1.5 | 4000 | 2800 | 2200 | 1700 | 1500 | 1200 | 1000 | 850 | ||
| B100*50*1.5 | 4200 | 3400 | 2800 | 2500 | 2100 | 1700 | 1400 | 1200 | ||
| B110*50*1.5 | 4500 | 3300 | 2800 | 2500 | 2200 | 1800 | 1500 | 1200 | ||
| B120*50*1.5 | 4000 | 3400 | 3000 | 2600 | 2200 | 1800 | 1500 | |||
| B140*50*1.5 | 4500 | 3800 | 3200 | 3000 | 2600 | 2000 | ||||
| B160*50*1.5 | 4800 | 4200 | 3800 | 3300 | 2800 | |||||
4. Advantages and Key benefits·
Advantages
- Lowers capital investment compared to scissor & pantograph masts.
- Reduces required aisle width when compared to manual fork extensions
- Increases handling of pallets and reduces stock damage compared to manual fork extensions.
- Clear visibility, no extra obstructions because of all extra moving parts of the scissor reach system.
Disadvantages
- Reduces forklift lifting capacity
Pallet Access (LIFO)
Double-Deep is Last In First Out (LIFO). This type of racking reduces the amount of accessible stock keeping units (SKU's) due to 50% of SKU's being behind pallets when storage locations are at full capacity. Can increase pallet storage by as much as 10-15% depending on racking layout.
Double-deep is better suited to stock that has a medium to long term shelf life. Highly perishable goods aren't recommended for this style of racking due to LIFO racking type.
5. Factory Production:

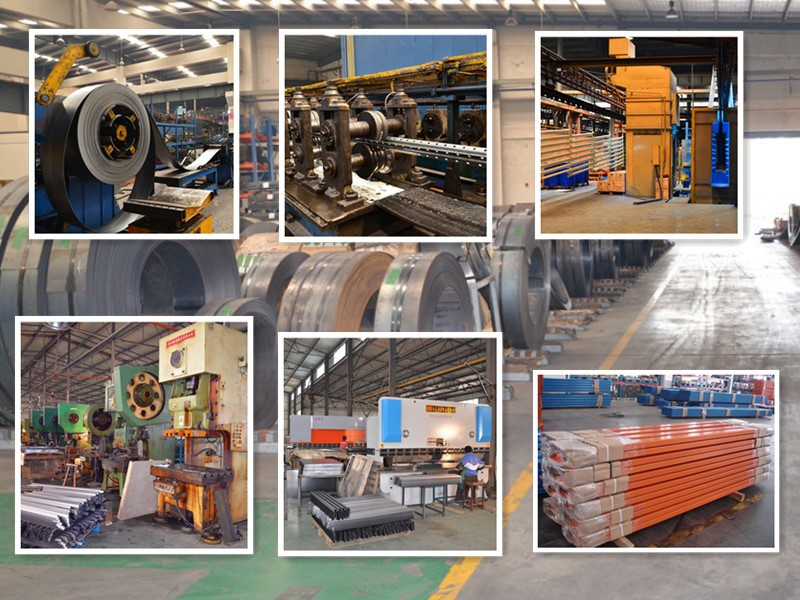

Roll forming--Welding--Pretreatment-Powder-Coating--Baking--Off loading--Packing
6. RFQ Documents:
Before you send us your requirement for quotation, please prepare the following information:
Warehouse layout CAD drawings if available.
Pallet size, entry side, width, depth, height of goods.
Loading weight per pallet.
Clear height of the warehouse
Your forklift information, working aisles width and max. Reaching height.
Your intra logistic flow within the warehouse.
Shanghai Calin Logistic Equipment Co. Ltd. Is one of the professional suppliers for storage and logistic equipment with the specialty of racking design, manufacturing, sales and services. The company is located in Changning District, Shanghai. Our main business is to provide racking systems for the storage of palletized or small goods and longer items.
The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.
There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.
Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.
There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.
Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
