Warehouse Storage Racking Electric Mobile Rack

Warehouse Storage Racking Electric Mobile Rack
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: XBH-G02
Weight Capacity: 300-500kg Per Layer
Usage: Warehouse, Industrial, Tool Rack,Supermarket Rack
Layers: 1~10
Surface: Powder Coating
Size: Customized
Material: Metal

Product Description

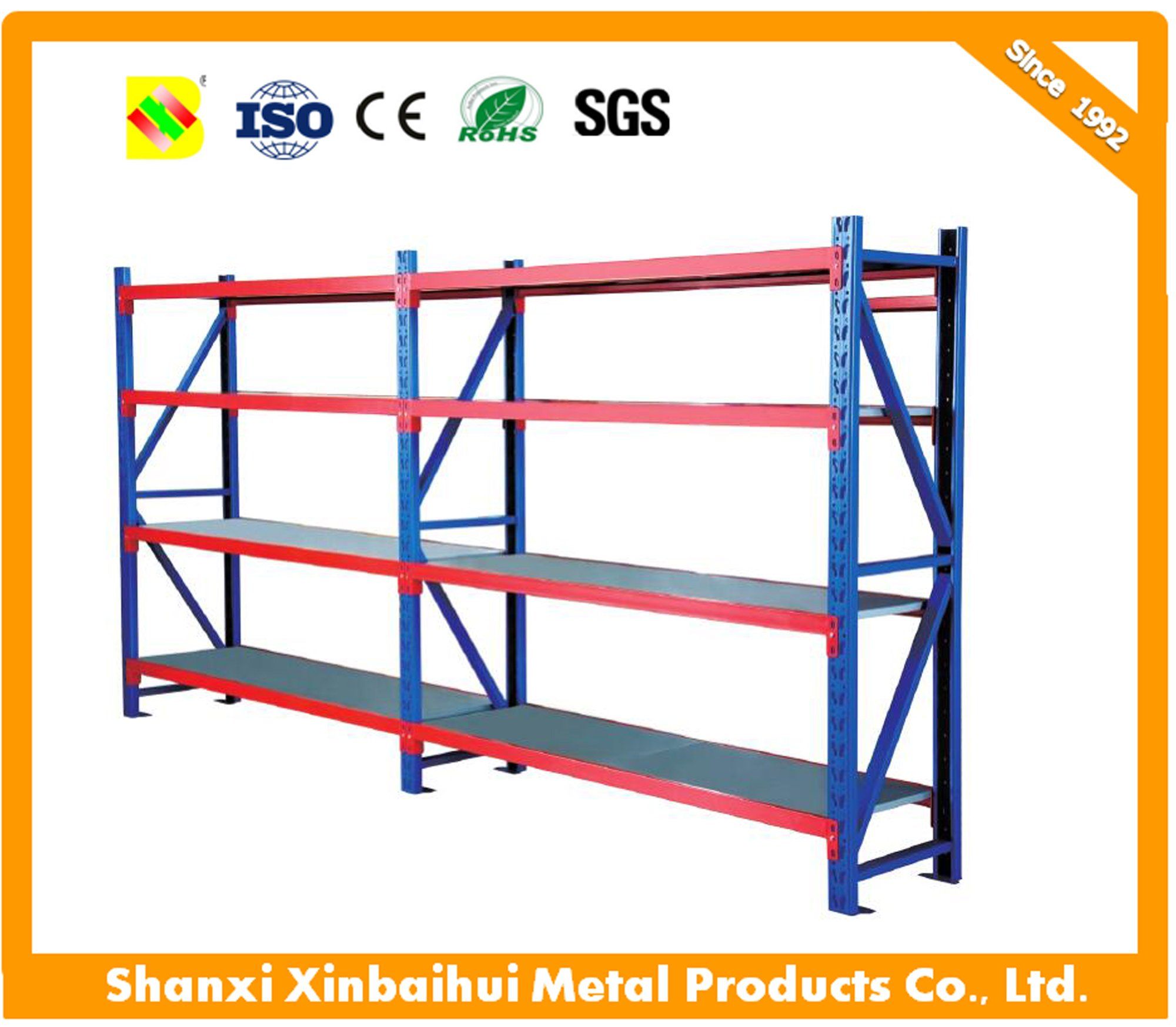

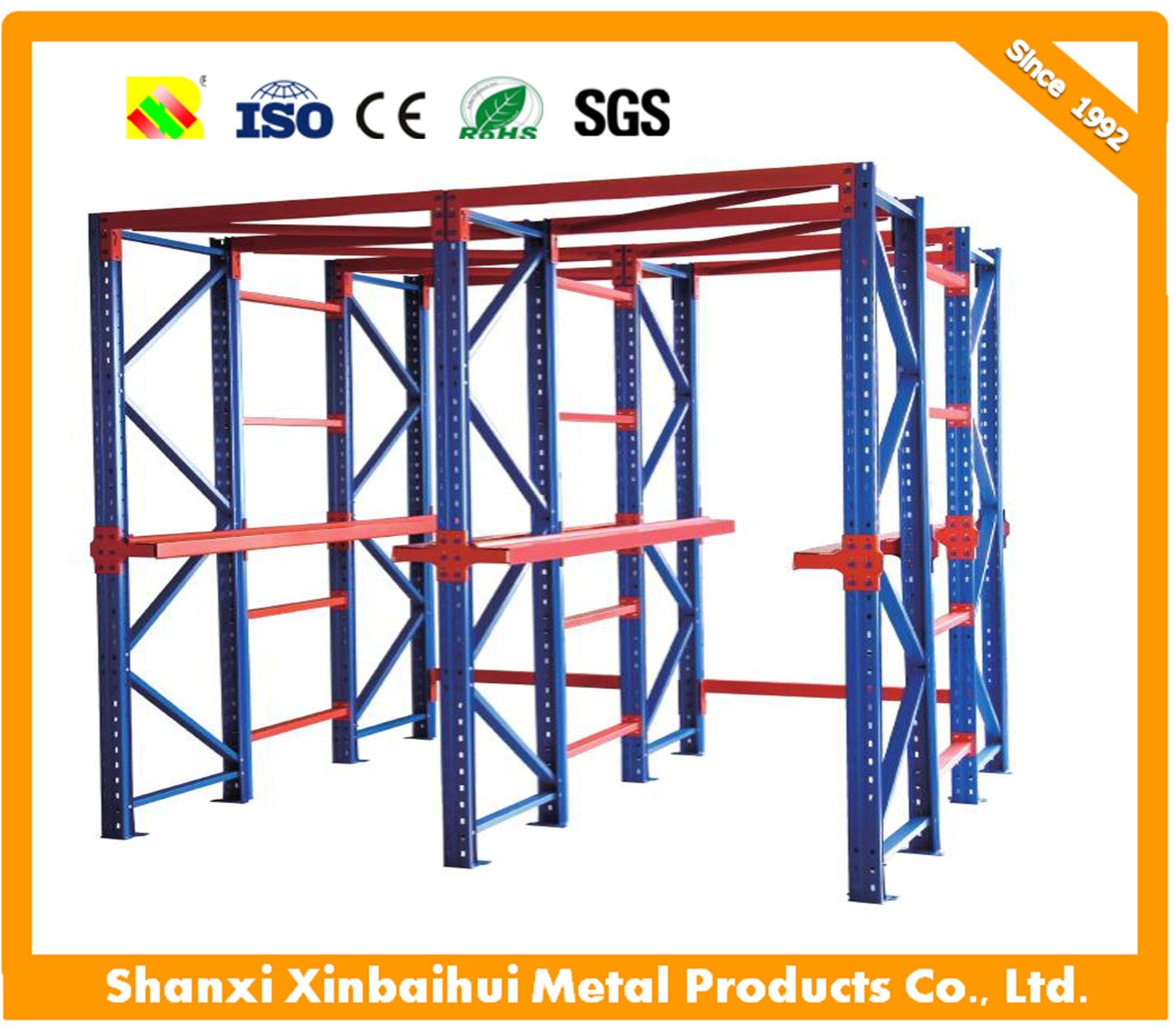

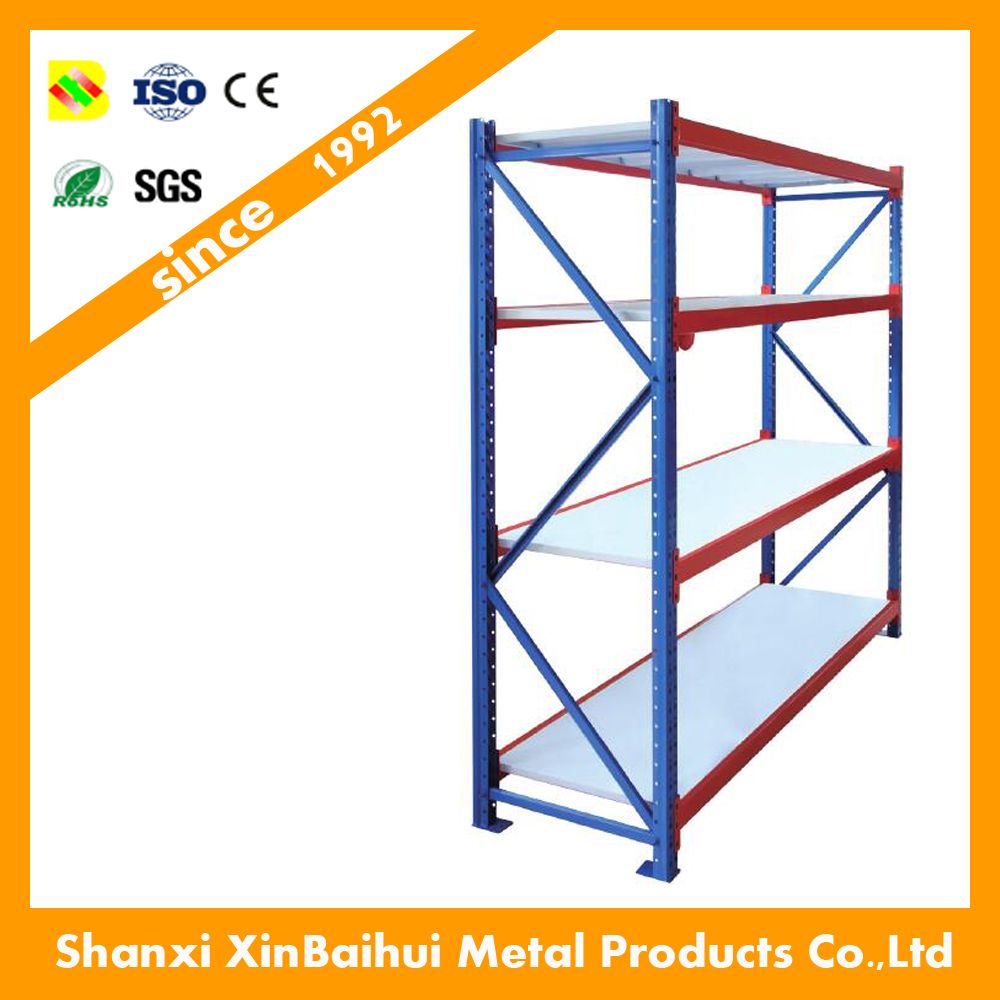

Shelving rack has a wonderful looks and scientific structures. The upright is made of the cold rolled steel sheet, which is bent and rolled. And it has the double line of holes, and there is a 50mm distance between two holes. The holes are designed to hang the beams. There are row bracing and diagonal racing between the upright frames. And the beam is "P" shape beam, and the height is matched with the shelf panels. The shelf panels are made of the cold roll steel according to the requests. All the accessories of the rack are processed by polishing, acid cleaning, phosphating, automatic static sprayed, baking and so on. After all these processing, it is installed to a whole set of the rack. It is convenient to disassemble and assemble and it is widely used in the supermarket, warehouse and other public fields.



For the upright, we have the standard size of: 60*55*1.2mm, 60*55*1.5mm and 80*60*1.8mm and 80*60*2.0mm. Special requests of the upright style and size can be designed according to the customer's requests.



1. High grade Q235B Steel
2. Loading Capacity: 200-500kg/ per layer

Product Details:



1. Itemmedium duty rack
2. Regular Size/UnitL1500/1600/1700/1800/2000/2200mm*D400~800mm*H1500~3500mm
3. Panelgalvanized, painting,wire,wood
4. Standard Colorblue, orange, green, yellow, grey
5. MOQ10 units
6. Standard Packingsmetal strip, film, paper board and master carton
7. CertificationISO9001:2008
8. Customized size accepted, Special color available




Shanxi Xinbaihui Metal Products Co., Ltd was established in 1992, specializes in the study, design and production of supermarkets shelves, warehouseracks, shopping trolley, plastic baskets and other logistic equipments, amount to hundreds markets, covers European market, America market southeast Asia market, Oceania comprising of more than ten countries and areas. The plant located at economic development zone-changshu city, jiangsu province, and it set up sales center at shanxi province.

The more we can provide: Cosmetic store display shelf, jewelry display shelf, metal display shelf, metal home shelf, wood shop shelf, wood display shelvf, acrylic display shelf, etc. Our factory have advanced technology and We use high grade raw materials and advanced production equipment.

When you cooprate with us, we will provide the best sale service.

We are pleasure to get your any response and waiting for long-term

Business relationship, and welcome about your coming for visiting our

Showroom and factory.
